Hikvision DS-PDP18-HM

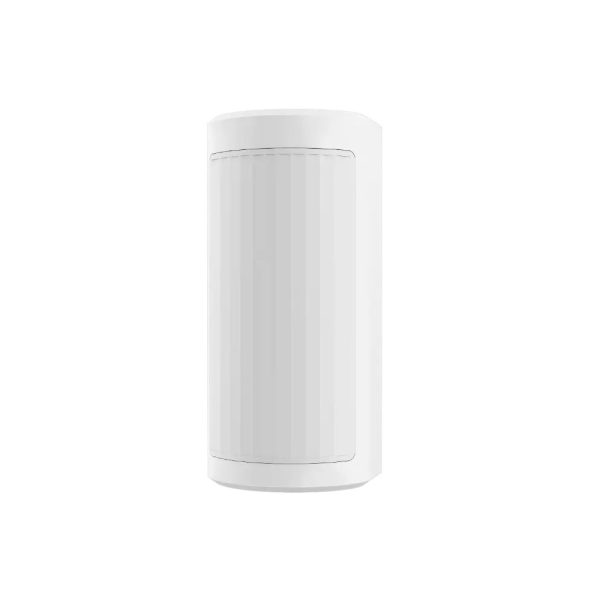

Hikvision DS-PDP18-HM Outdoor Weatherproof Wired Alarm Double PIR Detector – 90° Wide Coverage Up To 18m Distance – 24Kg Pet Immune
SKU: DS-PDP18-HM
Categories: Intrusion & Alarms, Wired Alarm Detectors, Wired Alarms
Tags: Alarm, AX Hybrid Pro, Detector, Hikvision, Pet Immune, PIR, Weatherproof
Hikvision DS-PDP18-HM Outdoor Weatherproof Wired Alarm Double PIR Detector – 90° Wide Coverage Up To 18m Distance – 24Kg Pet Immune
Features :-
- High / Low mount adjustment
- IP65 weather resistance for outdoor application
- Automatic sensitivity
- Selectable EOL resistors for alarm and tamper-proof wiring
- Digital temperature compensation and IFT technology
- 9 to 16 V wide voltage adaptation with polarity reverse conncection protection
Detection Performance
- Detection Method: Passive Infrared
- Detection Range: 18m
- Detection Angle: 90°
- Detection Zones: 118
- Detectable Speed: 0.3～2m/s
- Sensitivity: Auto; Pet
- White Light Filter: 2000lux
- Digital Temperature Compensation: Support
Detection performance
- Pet Immunity: Up to 24Kg
Feature
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front; Rear
Software features
- End of line resistance: Alarm: 1K, 2K2, 4K7, 5K6, 6K8; Tamper: 1K, 2K2, 4K7, 5K6
Hardware features
- Alarm output: Normally Closed
Interface
- LED Indicator: Blue (Alarm), Orange (Fault)
Electrical characteristics
- Power consumption: Maximum current：15mA @ 12VDC; Quiescent current：8mA @ 12VDC
- Typical voltage: 12 VDC
- Power supply: 9 to 16 VDC
General
- IP rate: IP 65
- Operation Temperature: -25 °C to 70 °C (-13 °F to 158 °F)
- Storage Temperature: -25 °C to 70 °C (-13 °F to 158 °F)
- Operation Humidity: 10% to 90%
- Dimension (WxHxD): 67.3 × 142.0 × 60.0 mm
- Weight: 226.3 g
- Mounting Height: 2.5 – 3m High Mount; 0.8 – 1.2m Low Mount
- Mounting Method: Wall
- Application Scenario: Indoor, Outdoor
