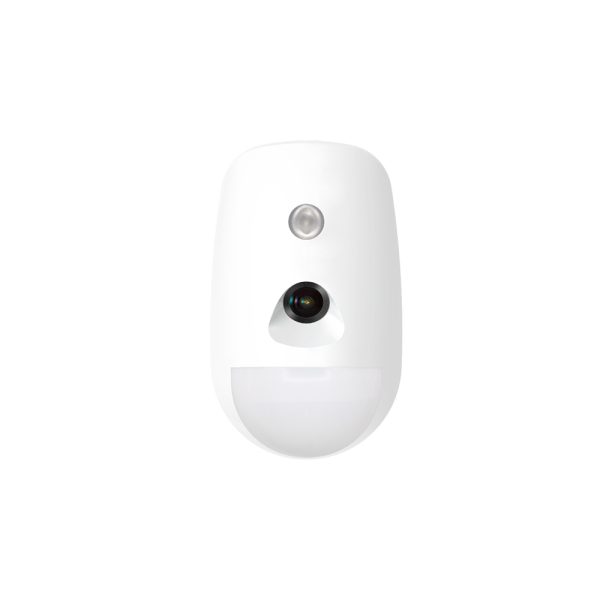

Hikvision DS-PDPC12PF-EG2-WB 433MHz Battery-Operated Wireless PIR Camera with White-Light - with 12m Coverage Distance with 85.9° Wide Angle - Max 640 x 480 Pixels Resolution - 30Kg Pet Immunity - To Work with AX Pro Hub

Intrusion & Alarms, Wireless Alarm Detectors, Wireless Alarms

Hikvision DS-PDPC12PF-EG2-WB

Name: Hikvision DS-PDPC12PF-EG2-WB
SKU: DS-PDPC12PF-EG2-WB

Hikvision DS-PDPC12PF-EG2-WB 433MHz Battery-Operated Wireless PIR Camera with White-Light – with 12m Coverage Distance with 85.9° Wide Angle – Max 640 x 480 Pixels Resolution – 30Kg Pet Immunity – To Work with AX Pro Hub

SKU: DS-PDPC12PF-EG2-WB Categories: Intrusion & Alarms, Wireless Alarm Detectors, Wireless Alarms Tags: 433MHz Wireless, Alarm, AX Pro, Battery-Powered, Camera, Hikvision, Pet Immune, PIR, Video Verification, White Light LED, Wireless

Key Features :-

Detection range: 12m / 85.9°
Up to 30KG pet immunity
SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
24/7 colorful imaging
Large integrated memory buffer for image storage
Fully remote configurable through App
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected

Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time

Upgrade Firmware using Hik-Partner Pro app (for installers)

Upgrade Firmware using Hik-connect app (for consumers)

Hikvision Product-Link

Detection Performance

Detection Method: Passive Infrared; Video Verification
Detection Range: 12m
Detection Angle: 85.9°
Detection Zones: 52
Detectable Speed: 0.3～2m/s
Sensitivity: High; Auto; Pet
Pet Immunity: 30Kg
White Light Filter: 6500lux
Digital Temperature Compensation: Support
Creep Zone Protection: Support

Feature

Digital Processing: Support
Sealed Optics: Support
Tamper Protection: Front; Rear
Environment Temperature Indicator: Support
Signal Strength Indicator: Support

Video

Field Angle: 88°(H), 68°(V)
Image Type: JPEG
Resolution: 160*120; 320*240; 640*480
Fill Light: White Light
Fill Range: 12m
Day/Night Switch: Color

Interface

Power Switch: Power Up Enrolling
LED Indicator: Blue(Alarm)

Transmission

Transmission Technology: CAM-X Wireless
Transmission Method: Two-Way RF Wireless
Transmission Frequency: 433MHz
Transmission Security: AES-128 Encryption
Transmission Range (Free Space): 800m
Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

Standard Battery Life: 6 years in work status (being triggered and completely uploading captures twice every week)
Power Supply: Battery Powered
Battery Type: CR123A × 3
Typical Voltage: 3V
