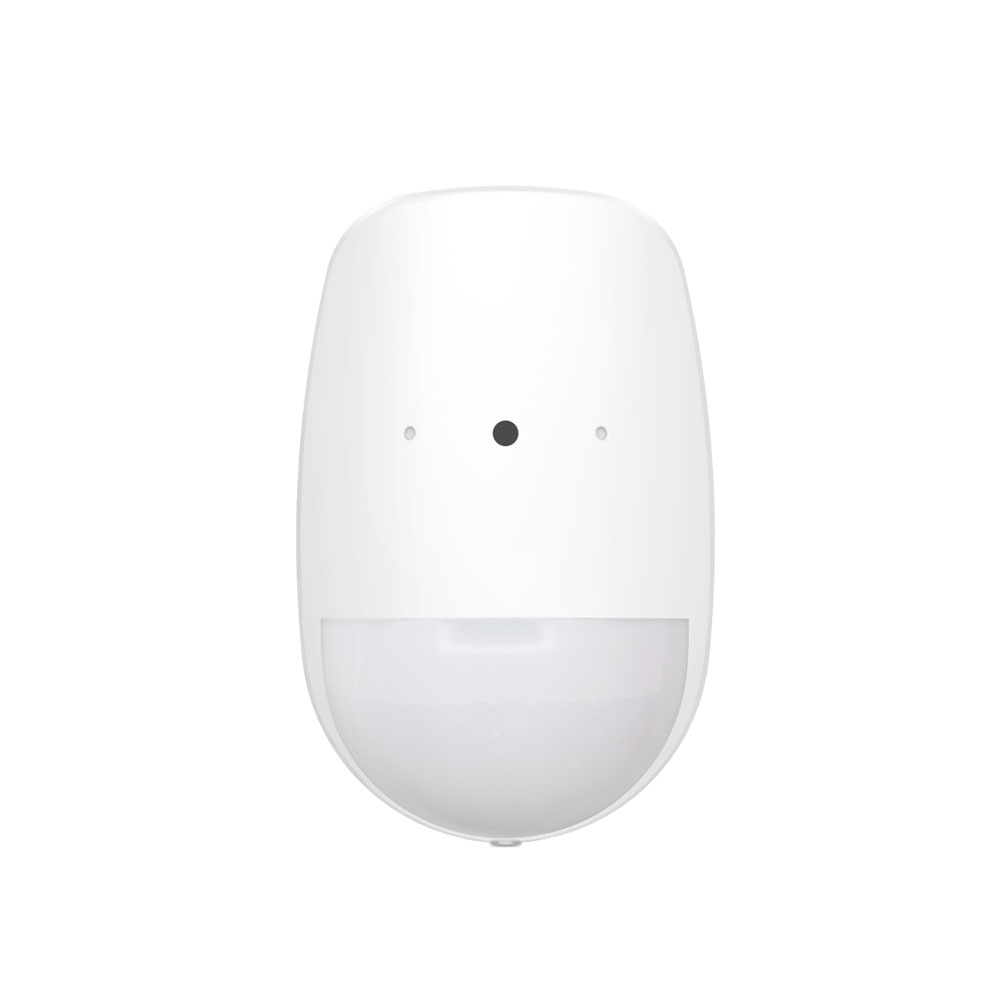

Hikvision DS-PDPG12P-EG2
Hikvision DS-PDPG12P-EG2 Wired PIR-Glass Break Detector – PIR Detection Range: 12m / 85.9° – Glass Break Range: 8m / 120° – Up to 30KG pet immunity
SKU: DS-PDPG12P-EG2
Categories: Intrusion & Alarms, Wired Alarm Detectors, Wired Alarms
Tags: Alarm, Detector, Glass Break Detector, Hikvision, Pet Immune, PIR
Hikvision DS-PDPG12P-EG2 Wired PIR-Glass Break Detector – PIR Detection Range: 12m / 85.9° – Glass Break Range: 8m / 120° – Up to 30KG pet immunity
Key Features :-
- PIR Detection Range: 12m / 85.9°
- Glass Break Range: 8m / 120°
- Up to 30KG pet immunity
- Selectable EOL resistors
- 9-16 VDC wide voltage adaptation with polarity reverse connection protection
Detection Performance
- Detection Method: Passive Infrared; Acoustic Sensor
- Detection Range: 12m
- Detection Angle: 85.9°
- Detection Zones: 52
- Detectable Speed: 0.3～2m/s
- Pet Immunity: 30Kg
- PIR Sensitivity: Auto, Pet
- White Light Filter: 6500lux
- Glass Type: Float; Plate; Tampered; Wired; Laminated Leaded; Double Glazing
- Glass Break Range: 8m
- Glass Thickness: 2.4mm to 6.4mm
- Glass Break Sensitivity: Potentiometer Adjustment
- Digital Temperature Compensation: Support
- Glass Size: 0.3m x 0.3m to 3m x 3m
- Creep Zone Protection: Support
Feature
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front
Interface
- Alarm Output: Normally Closed
- LED Indicator: Green(PIR),Red(BG),Blue(alarm)
Transmission
- Transmission Method: Wired
Electrical Characteristics
- Power Consumption: 36mA Max
- Power Supply: 9 to 16 VDC
- Typical Voltage: 12 VDC
General
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension (WxHxD): 65.5mm×103mm×48.5mm
- 98.5g
- Mounting Height: 1.8 to 2.4m
- Mounting Method: Wall
- Application Scenario: Indoor
- Bracket: Optional Wall & Ceiling Accessory
