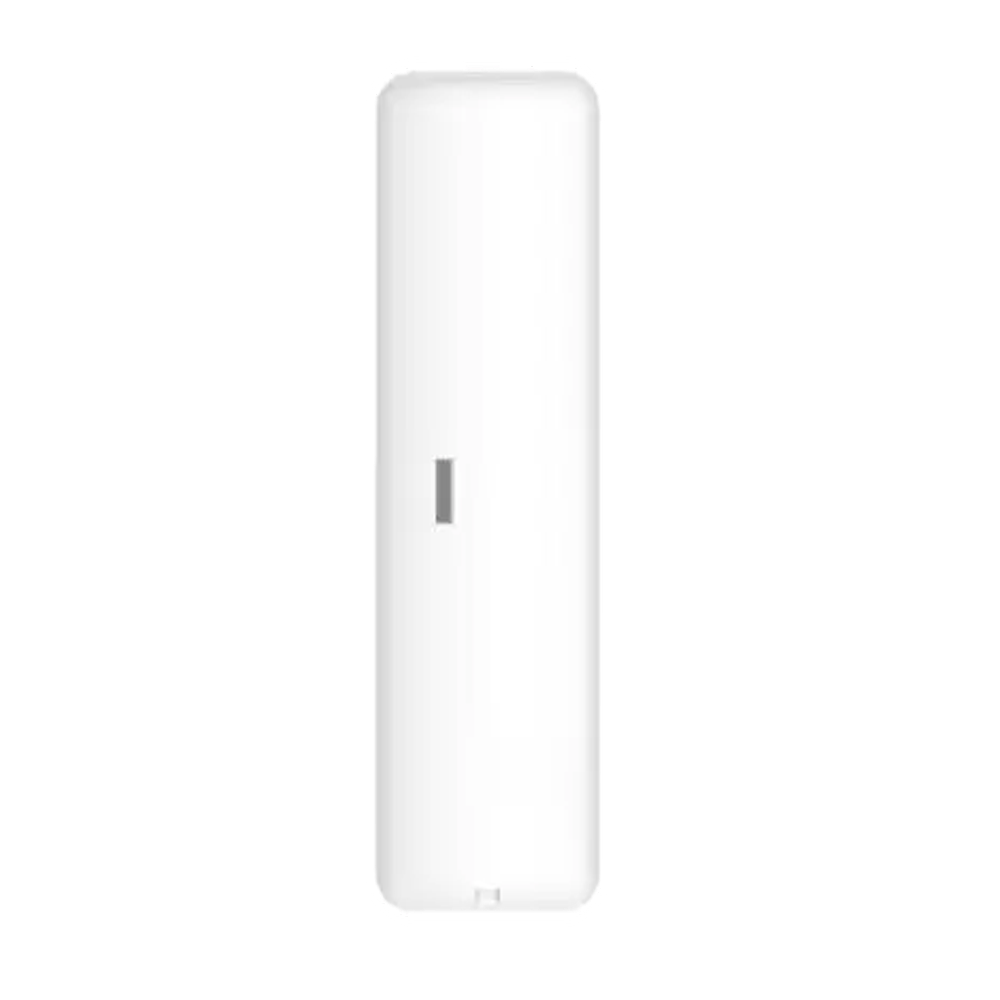

Hikvision DS-PDSK-P(B)

Hikvision DS-PDSK-P(B) Wired Alarm Shock / Vibration / Impact Detector – Perimeter Protection – Adjustable Sensitivity – Digital Noise Filter

Hikvision DS-PDSK-P(B) Wired Alarm Shock / Vibration / Impact Detector – Perimeter Protection – Adjustable Sensitivity – Digital Noise Filter

Key Features :-

  • Wired impact detector
  • Piezoelectric sensor
  • Detection radius up to 2.5 meters
  • Front anti-opening tamper
  • Sensitivity adjustable with potentiometer
  • Digital filter to eliminate background noise
  • Led indicator
  • Power supply 9~16 VDC
  • Interior use

Hikvision Product-Link

Detection Performance

  • Detection Method: Shock Sensor
  • Detection Range: Up to 2.5m Radius
  • Sensitivity: Potentiometer Adjustment

Feature

  • Digital Processing: Support
  • Tamper Protection: Front

Interface

  • Alarm Output: Normally Closed
  • LED Indicator: Blue(Alarm)

Transmission

  • Transmission Method: Wired

Electrical Characteristics

  • Power Supply: 9 – 16 VDC
  • Typical Voltage: 12 V
  • Power Consumption: Maximum current:13mA @12VDC; Quiescent current:13mA @12VDC; Alarm current:11mA @12VDC

General

  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension(WxHxD): 30 mm x 108 mm x 22 mm
  • Weight: 37.5 g
  • Application Scenario: Indoor
