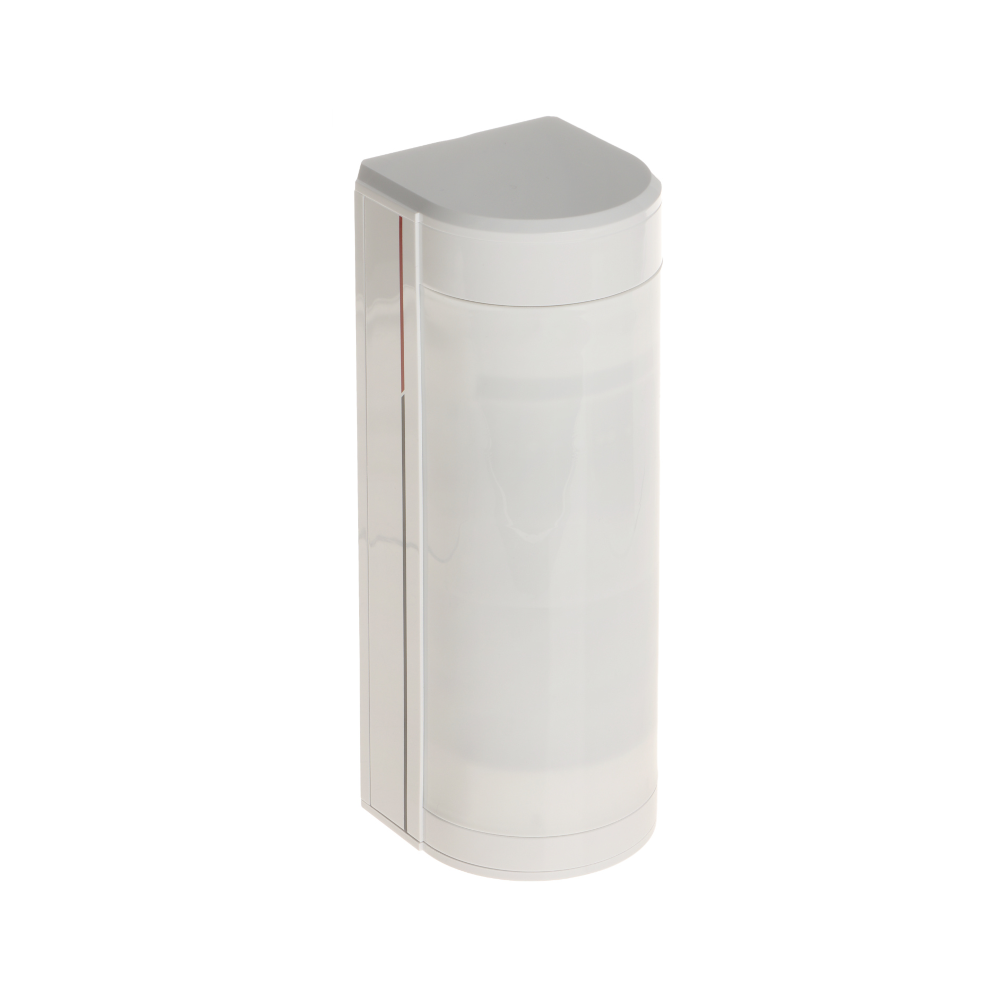

Hikvision DS-PDTT15AM-LM

Detection Performance

• Detection Method: Passive Infrared; Microwave
• Detection Range: 15m
• Detection Angle: 90° @ 180° adjustable
• Detection Zones: 92
• Detectable Speed: 0.3～2m/s
• Sensitivity: Auto; Low
• White Light Filter: 10000lux
• Pet Immunity: 40Kg
• Microwave Frequency: 24GHz(24.15～24.25GHz)
• Digital Temperature Compensation: Support
• Anti-Masking: Support
• Adaptable Coverage: Support – Pattern mask included

Feature

• Digital Processing: Tri-Signal Logic
• Sealed Optics: Support
• Tamper Protection: Front; Rear
• Anti-Sway Analytics: Support

Interface

• Alarm Output: Normally Closed
• LED Indicator: Green (Top PIR), Red (Microwave), Orange (Bottom PIR), Green + Orange (Mask), Blue (Alarm)

Transmission

• Transmission Method: Wired

Electrical Characteristics

• Power Consumption: 30mA （Standard; 220mA Max （With lighting on）
• Power Supply: 9 to 16 VDC
• Typical Voltage: 12 VDC

General

• Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
• Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
• Operation Humidity: 10% to 90%
• IP Rate: IP65
• Dimension (W x H x D): 75mm × 202mm × 73mm
• Weight: 350g
• Mounting Height: 0.8 to 1.2m
• Mounting Method: Wall
• Application Scenario: Outdoor
