Hikvision DS-PKG-H8L

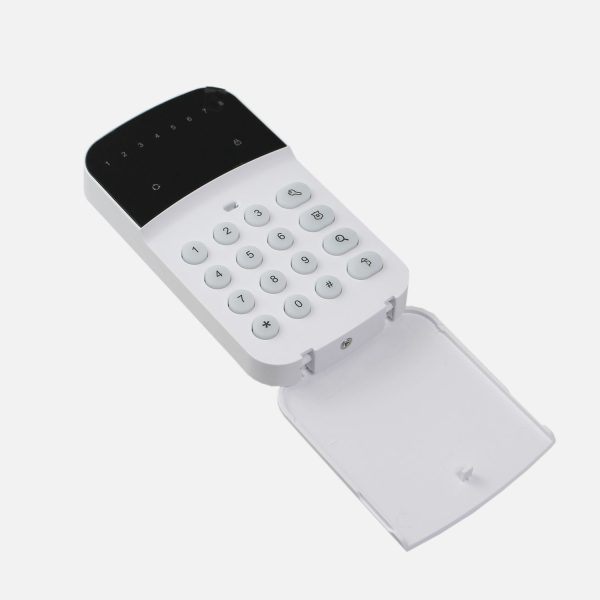

Hikvision DS-PKG-H8L Gen1 Wired Alarm / Intrusion Keypad with LED Display- Works with First Gen AX Hybrid Alarm Panels Only
SKU: DS-PKG-H8L
Categories: Intrusion & Alarms, Wired Alarm Keypads & Touchscreens, Wired Alarms
Tags: Alarm, Hikvision, Keypad
Hikvision DS-PKG-H8L Gen1 Wired Alarm / Intrusion Keypad with LED Display- Works with First Gen AX Hybrid Alarm Panels Only
Features :-
- Supports arming, disarming, alarm clearing, bypass etc.
- Supports real-time zone status display
- Supports tamper protection
- Supports 8-zone status indicator
Software Features
- Tamper-Proof: Tampering alarm
- Protocol: RS-485
Hardware Features
- Numeric Key: 12 keys: 0 to 9, *, and #
- Function Key: 4 function keys: project, panic, status, and bypass
- Indicator: Control panel status indicator: 2, work (red/green), arm/ disarm (red/green) Zone status indicator: 8,red/ green
Electrical Characteristics
- Power Supply: DC 12V
Display
- Display Screen: LED
General
- Operation Temperature: -10 °C to +55 °C (-4 °F to +122 °F)
- Operation Humidity: 10% to 90% (No condensing)
- Dimension (W x H x D): 133.9 mm (5.3″) x 74.9 mm (1.9″) x 27.7 mm (1.1″ )
- Weight: 149g
