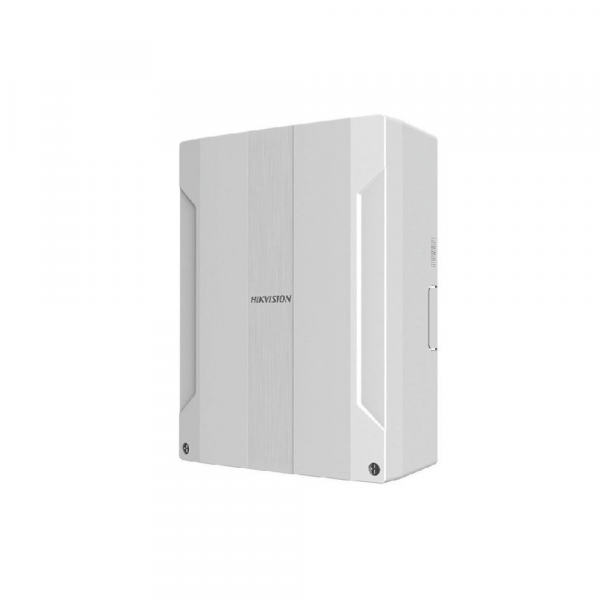

Hikvision DS-PM1-I16O2-WB
Hikvision DS-PM1-I16O2-WB AX Pro 433MHz Wireless Multi I/O Alarm Transmitter – 16 * Wired Alarm Inputs + 2 * Wired Alarm Outputs – Converts a Traditional Wired Alarm into a Smart Wireless Alarm – Compatible with AX Pro Wireless Alarm – Battery Slot
SKU: DS-PM1-I16O2-WB
Categories: Intrusion & Alarms, Wireless Alarm Expanders & Repeaters, Wireless Alarms
Tags: 433MHz Wireless, Alarm, AX Pro, Hikvision, Wireless
Hikvision DS-PM1-I16O2-WB AX Pro 433MHz Wireless Multi I/O Alarm Transmitter – 16 * Wired Alarm Inputs + 2 * Wired Alarm Outputs – Converts a Traditional Wired Alarm System into a Hikvision Smart Wireless Alarm – Compatible with AX Pro Wireless Alarm – Battery Slot
Key Features :-
- 433MHz two-way wireless communication
- LED display, show the real status of device
- With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors
- With two 12v power outputs, can be used to power up external wired detectors
- Large space for back up storage battery
- Allows existing wired alarm setup to turn into a full Hikvision AX Pro smart wireless alarm solution
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time
Upgrade Firmware using Hik-Partner Pro app (for installers)
Upgrade Firmware using Hik-connect app (for consumers)
Software features
- End of Line Resistance: 1k 2.2k 4.7k 8.2k; NO/NC
Hardware features
- Serial port: 1
- Battery port: 1, 12 VDC input
- Tamper-Proof: Front and rear
- Power switch: 1
- Alarm input: 16
- Alarm output: 2
- Power Output: 2 (12v, total1A)
Electrical characteristics
- Battery type: Compatible with 12v 7 Ah; 150 × 64 × 94 mm
- Power supply: 100-240VAC，30w
- Operation humidity: 10%~90%
- Operation temperature: –10 ~ 40°C
- Power consumption: Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V); 220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
- Battery life span: Up to 36 hours
Wireless transmission
- RF frequency: 433MHz
- RF method: Two-way communication
- RF modulation: 2GFSK
- RF distance: 800m
Display
- Indicator: 3 – Power (Green), Fault (Amber), Signal Strength (Green/Red）
General
- Installation method: Wall Mounting
- Dimension (W x H x D): 261 * 199 * 86.4mm
- Shell material: Plastic
- Color: White
- Weight: 975 g (without battery); 3024g (with battery)
