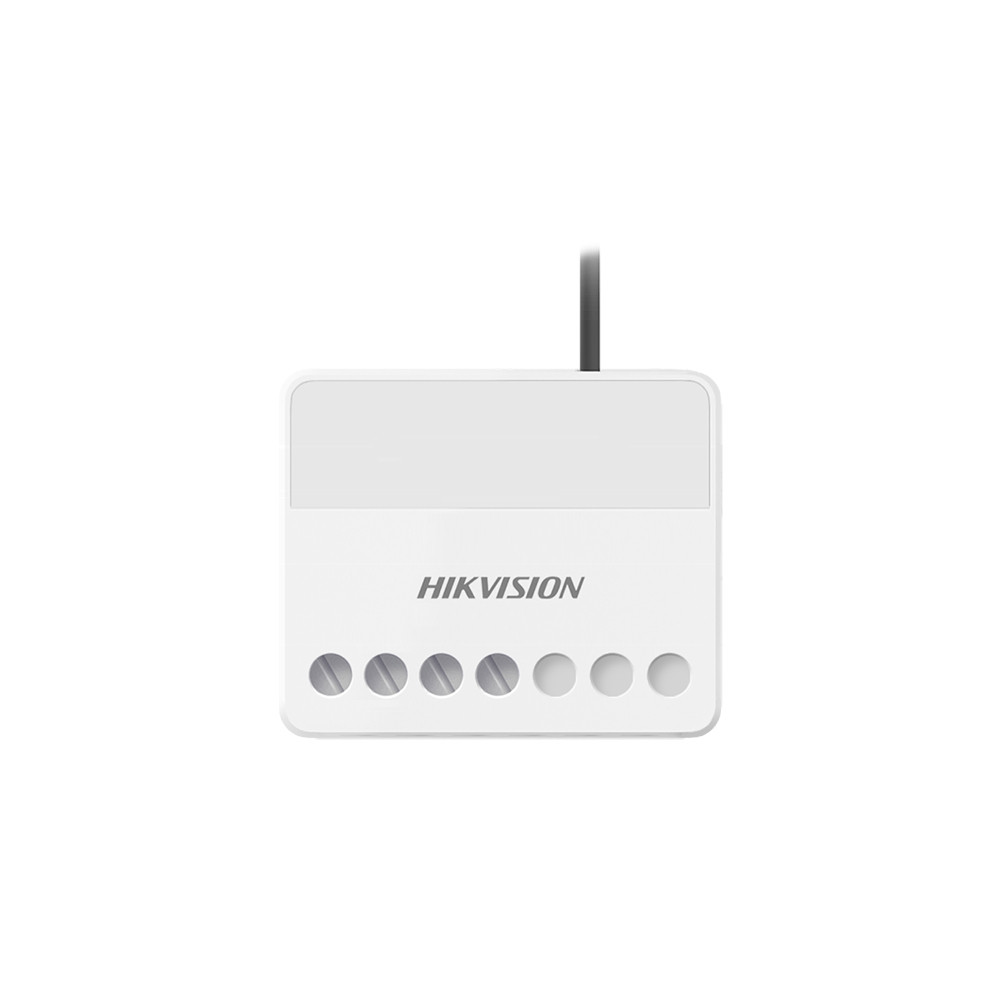

Hikvision DS-PM1-O1H-WB
Hikvision DS-PM1-O1H-WB 433MHz AX Pro Wireless 230VAC-Powered Relay Module – Single Relay Output – Small Design – Used for Automation
SKU: DS-PM1-O1H-WB
Categories: Intrusion & Alarms, Wireless Alarm Other Products, Wireless Alarms
Tags: 433MHz Wireless, Alarm, AX Pro, Gate Automation, Gate Control, Hikvision, Home Automation, Relay, Wireless
Hikvision DS-PM1-O1H-WB 433MHz AX Pro Wireless 230VAC-Powered Relay Module – Single Relay Output – Small Design – Used for Automation
Key Features :-
- Small compact size
- 433MHz two-way wireless communication
- AES-128 encryption
- LED display, show status of device and replay on/off display
- Small case design, which can be put into hiding places easily
- Automation operating, one button turn on/off from APP/Keyfob/Keypad
- Setting scenarios by different events
- Automation scenarios incl (but not limited to) – garage door control, gate control, gate automation, lighting control, ventilation etc
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time
Upgrade Firmware using Hik-Partner Pro app (for installers)
Software Features
- Learning Button: 1, For register
- Scenario Setting: By Alarm, By Operation, By Fault, By Schedule, By Manual
Hardware Features
- Relay Output: 1, NO/NC (AC 100~240v, Max 13A）
- Serial Port: 1, for debug
RF Transmission
- RF Method: Two way communication
- RF Modulation: 2GFSK
- RF Frequency: 433MHz
- RF Distance: 800m
- Wireless Security: AES-128
Electrical Characteristics
- Power Supply: AC 100v – 240v, 50/60 HZ
Display
- LEDs Status: 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)
General
- Operation Temperature: ﹣10℃~+55℃
- Operation Humidity: 10％~90％
- Shell Material: Plastic
- Dimension (W x H x D): 38x25x18mm
- Weight: 31.5g
- Color: White
- Installation Method: Wall Mounting or Inside 86 box
