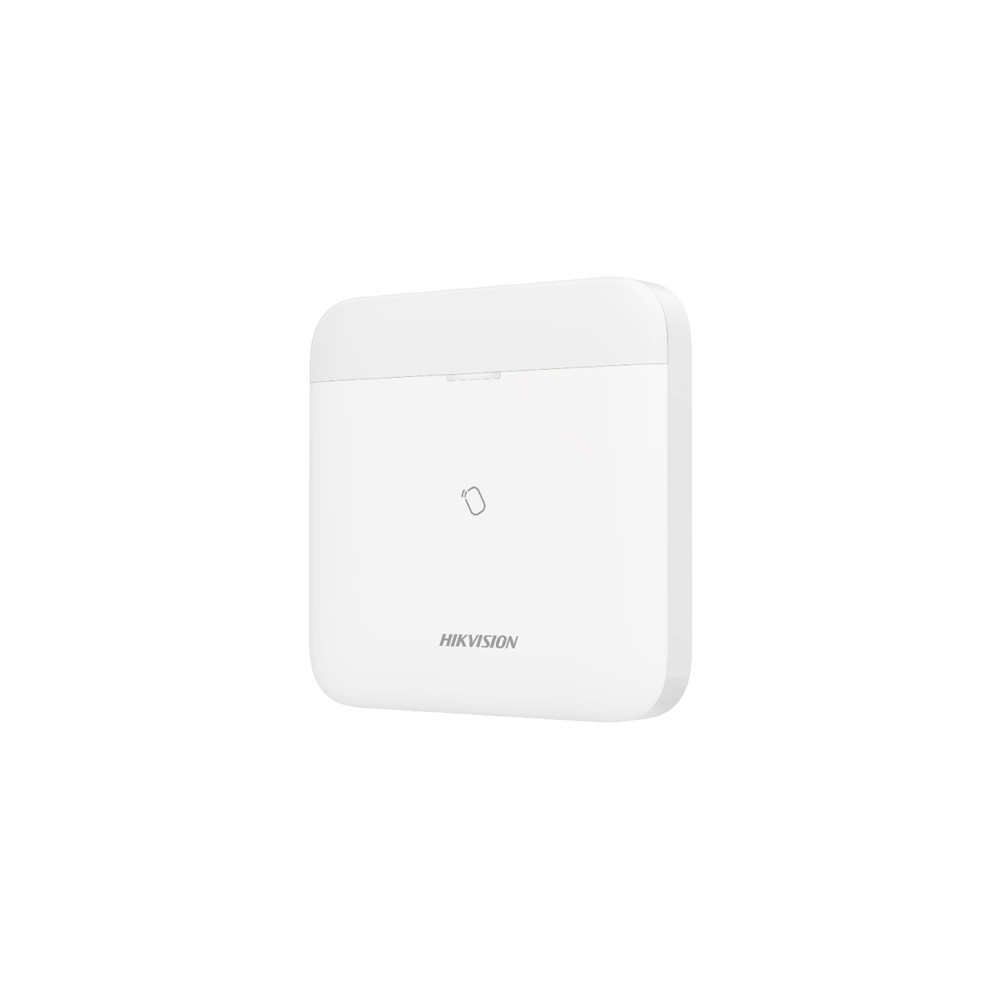

Hikvision DS-PWA96-M-WB
Hikvision DS-PWA96-M-WB 433MHz AX Pro Wireless Indoor Intrusion Detection / Alarm Panel – 3G/4G Sim Slot – Up to 96 Zones – 230AC Powered – Built-in Backup Battery – Push Alarm Notifications – Voice Prompt – App Control
SKU: DS-PWA96-M-WB
Categories: Intrusion & Alarms, Wireless Alarm Hubs, Wireless Alarms
Tags: 433MHz Wireless, Alarm, AX Pro, Battery-Powered, Gate Automation, Gate Control, Hikvision, Home Automation, Network, Video Verification, Wireless
Hikvision DS-PWA96-M-WB 433MHz AX Pro Wireless Indoor Intrusion Detection / Alarm Panel – 3G/4G Sim Slot – Up to 96 Zones – 230AC Powered – Built-in Backup Battery – Push Alarm Notifications – Voice Prompt – App Control
Key Features:-
- TCP/IP, Wi-Fi, and 3/4G network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads.
- Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notifications via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Supports LED indicator to indicate system status
- 4520mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time
Upgrade Firmware using Hik-Partner Pro app (for installers)
Software Features
- Tag: 48
- Area: 32
- Zones: 96 (up to 48 PIRCAMs)
- Onboard Video Clips: 4
- Installer: 1
- User: 46
- Admin: 1
- Voice Prompt: Supported
- Loudspeaker Built In: Supported
- Tag Reader Built In: Supported
- Memory Log Stored: 5000
- Programming Tools: Hik-Connect / Hik-ProConnect / Web Portal / IVMS4200 / Convergence Cloud
- Firmware Upgrade: APP / Web Portal
- Arm Modes: Away/Stay
- Automatic Arm/Disarm Timers: Supported
- Forced Arming With Open Zones: Supported
- Diagnostics Via The APP Or Web: Supported
- ARC Protocol: SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK); Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685); Supports video verification and remote control
- User APP For Operating: Supported
- Installer APP For Programming: Supported
- Web Server For Maintenance (Offline Configuration): Supported
Hardware Features
- RS232 Output: Supported
- SIM Slot: Dual
RF Transmission
- Two-Way Wireless Communication: Support
- RF Frequency: 433Mhz
- Wireless Security: Frequency Hoping 128 AES Encryption
- 3G/4G On Board: Supported
Electrical Characteristics
- Power Supply: Built in power supply
- Battery Type: Built in on board Battery Li
- Battery Life Span: 12 hours
Wireless Transmission
- Wired Network: Supported
- Wi-Fi Standard: Supported
Display
- LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
General
- Operation Temperature: -10 °C to +55 °C
- Shell Material: Plastic
- Dimension (W x H x D): 170.0 mm (6.7″) x 170.0 (6.7″) mm x 38.6 mm (1.5″)
- Weight: 557.5 g (19.7 oz)
- Color: White
Device Management
- Keyfob: 48
- Wireless Sounder: 6
- Keypad: 8 (Including Tag reader)
- Wireless Repeater: 4
- PIR Cam: Supported
