Hikvision DS-QAE0420G1-V

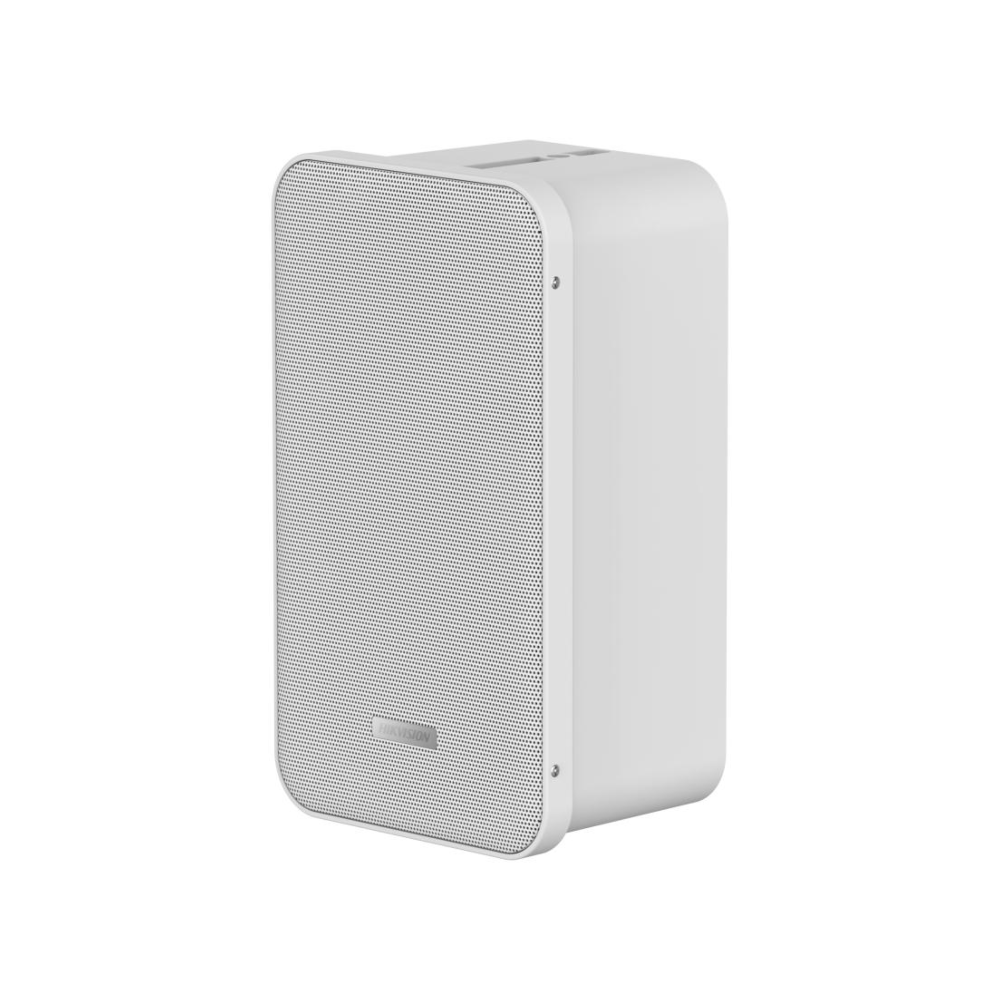

Hikvision DS-QAE0420G1-V 100V Analogue 20W Column Speaker – IP66 Weatherproof – White Colour – L-Bracket Included
SKU: DS-QAE0420G1-V
Categories: Analogue Speakers, Audio & Visual, Audio Products
Tags: Analogue, Hikvision, IP66 Rated, Outdoor, Speaker, Weatherproof, White
Hikvision DS-QAE0420G1-V 100V Analogue 20W Column Speaker – IP66 Weatherproof – White Colour – L-Bracket Included
Key Features :-
- Full frequency 4′′ × 1 ， high frequency 0.75′′ × 1
- Rated Power: 20 W
- Sensitivity(1 m, 1 W): 89.5 dB ± 3 dB
- Max. SPL: 96 dB
- Frequency Response: 100 Hz to 20 kHz
- White
Interface
- Audio In: Green end (terminal block), constant voltage input：100 V， COM
Speaker
- Impedance: 8 Ω
- Rated Power: 20 W
- Sensitivity: (1 m, 1 W) 89.5 dB ± 3 dB
- Max. Acoustic Pressure: 96 dBSPL
- Frequency Response: 100 Hz to 20 kHz
- Speaker UnitFull frequency: 4′′ × 1 ， high frequency 0.75′′ × 1
- Coverage Angle: Horizontal: 150°; Vertical: 160°
Approval
- Protection: IP66
General
- Color: White
- Material: Front cover：steel mesh, back cover: plastic
- Dimension: 280 mm × 161.9 mm × 119.8 mm (11.02″× 6.37″ × 4.72″)
- Approx. 1862.4 g (4.11 lb.)
- Package Dimension: 340 mm × 306 mm × 175 mm (13.39″× 12.05″ × 6.89″)
- With Package Weight: 2610.2 g (5.75 lb.)
- Packing List: Device × 1, Screw pack × 1, L-Bracket × 2, Regulatory Compliance and Safety Information × 1
- Operating Temperature: -25 °C to 55 °C(-13 °F to 131 °F)
- Operating Humidity: ＜90% (No condensation)
