Audio & Visual, Audio Products, Network (IP) Speakers

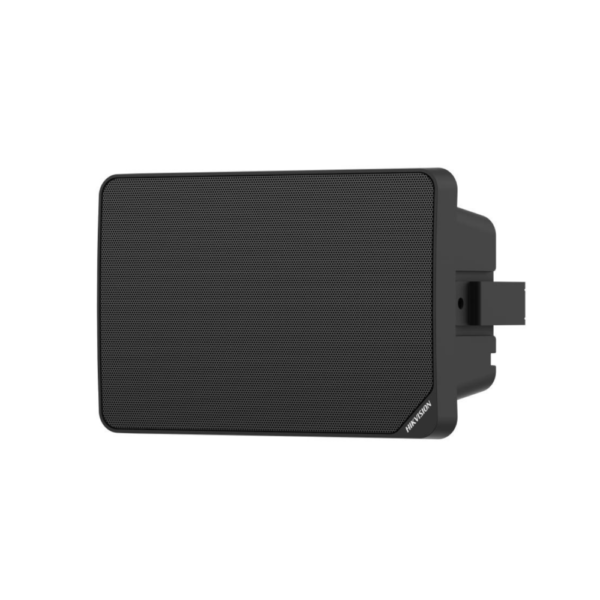

Hikvision DS-QAZ1110G1R-BE/Black
Hikvision DS-QAZ1110G1R-BE/Black Network PoE IP Cabinet Speaker – 10w Output – Bluetooth – Built-in 64GB eMMC – Built-in Mic – Smart Audio Linkage – Works with Hik-Partner Pro, iVMS-4200, Hik-Connect, HCP
SKU: DS-QAZ1110G1R-BE/Black
Categories: Audio & Visual, Audio Products, Network (IP) Speakers
Tags: Audio, Hikvision, IP, IP Speaker, Network, PA (Public Address), Paging, PoE, Speaker
Hikvision DS-QAZ1110G1R-BE/Black Network PoE IP Cabinet Speaker – 10w Output – Bluetooth – Built-in 64GB eMMC – Built-in Mic – Smart Audio Linkage – Works with Hik-Partner Pro, iVMS-4200, Hik-Connect, HCP
Key Features :-
- Adopts high-speed industrial grade dual core chips, built-in NOR Flash + EMMC dual storage, support dual backup of the system to ensure stable and reliable system performance.
- Supports secure startup, user login locking mechanism, and password complexity prompts, support security audit log traceability, and improve system network security.
- Supports batch unified management of remote platforms through IP networks (local area networks/public networks) and flexible configuration of local WEB single machines, while also support local audio collection and playback, adapting to various scene applications.
- Supports alarm input, arming schedule, and audio linkage, support TTS speech synthesis and text broadcasting, with natural and smooth standard male and female dual audio options.
- Supports horizontal and vertical installation
- Notes * – This IP speaker can work standalone on it’s own and can be controlled/accessed by Hik-Partner Pro app (for the installers), Hik-connect app (for the end-users) and iVMS-4200 software. It also supports smart-linkage to a Hikvision M-series NVR on Hik-connect app.
Security Protection
Background Music and Queue Calling
Paging and Notifications
Audio Visual Convergence
Microphone
- Type: electret
- Amount: 2
- Frequency Response: 100 Hz to 18 kHz
- Sensitivity: -42 dBV/Pa
- Sampling Rate: 48 kHz
- Quantization Bits: 16 bit
Speaker
- Rated Power: 10 W
- Impedance: 8 Ω
- Max. Acoustic Pressure: 100 dBSPL
- Sensitivity (1 m, 1 W): 90 dB
- Direction: All directions
- Frequency Response: 130 Hz to 17.5 kHz
- SNR: 83 dB
- Speaker Unit: 5.25′′ × 1
Function
- Audio Algorithm: AEC, AGC, ANS, DRC
- Audio Bit Rate: G.711ulaw (64 Kbps) / G.711alaw (64 Kbps) / MP3 (128 Kbps) – Sampling bit width: 16 bits
- Audio File Format: WAV, MP3, MP2, AAC
- NTP Timing: Support
- Broadcast: Regular broadcast, live broadcast, emergency broadcast
- Two-Way Audio: Support
- Speech Synthesis: Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil)
Network
- Network Protocol: IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
- Interface Protocol (API): ISAPI, ISUP, SIP, RTP,ONVIF
- Client: Hik-Partner Pro, iVMS-4200, Hik-Connect, HikCentral Professional
Communication
- Communication Method: Support wired network and Bluetooth communication
Interface
- Ethernet Interface: RJ45 10 M/100 M Adaptive Ethernet port × 1
- Local Storage: Built-in 64GB eMMC (Audio file storage is 55 GB.)
- API: ISAPI, ISUP, SIP,ONVIF
- Audio In: 3.5 mm audio interface × 1
- Audio Out: Fixed resistance output × 1，phoenix terminal，8 Ω
- LED Indicator:
- Solid green: normal working
- lashing green: intercom in progress
- Solid red: start or network disconnection
- Flashing red: upgrading
- Reset: Support
- Volume Knob: Support
General
- Power: PoE(IEEE 802.3at class 4)
- Material: Main body & Front cover: plastic, bracket: metal
- Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Operating Humidity: ＜90% (No condensation)
- Language: 9 languages: English, French, Spanish, German, Italian, Russian, Japanese, Thai, Portuguese (Brazil)
- Dimension: 268.4 mm × 180.4 mm × 125.12 mm (10.57″ × 7.1″ × 4.93″)
- Package Dimension: 340 mm × 306 mm × 180 mm (13.39″ × 12.05″ × 7.09″)
- Weight: Approx. 2 kg (4.4 lb.)
- Color: White
- With Package Weight: Approx. 2.2 kg (4.8 lb.)
- Packing List:
- Device × 1
- U-shaped bracket × 1
- Screw pack × 1
- Installation sticker × 1
- Regulatory Compliance and Safety Information × 1
- Bluetooth: Bluetooth 5.0, 10 m
Approval
- RF: CE-RED: EN 301489-1 V2.2.3 (BT or 2.4G), EN 301489-17 V3.2.4 (BT or 2.4G), EN 300 328 V2.2.2 (BT or 2.4G), EN62311 2020(BT or 2.4G); RCM: EN 300 328 V2.2.2 (BT or 2.4G), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note; IC ID: RSS-247(BT or 2.4G); ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018
- EMC: CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
- Safety: CB: IEC 62368-1:2014; CE-LVD: EN 62368-1:2014/A11:2017
- Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
