Audio & Visual, Audio Products, Network (IP) Speakers
Hikvision DS-QAZ1325G1T

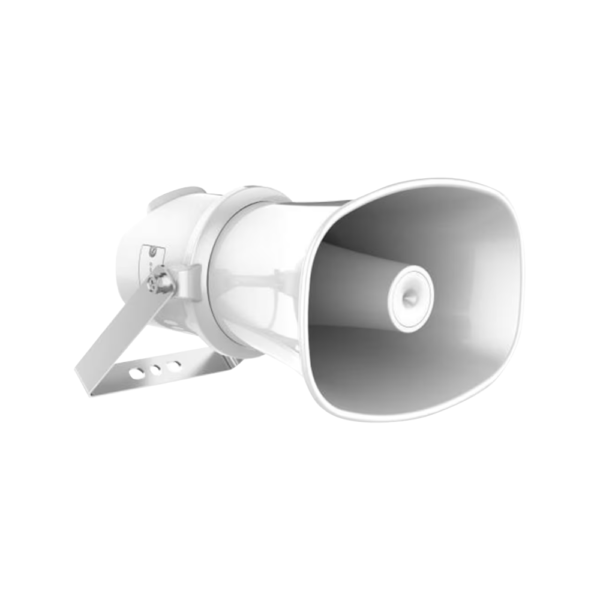

Hikvision DS-QAZ1325G1T Outdoor-Rated Weatherproof Network IP Horn Speaker – 25w Output – Built-in 4GB eMMC – Built-in Mic – Smart Audio Linkage – Works with Hik-Partner Pro, iVMS-4200, Hik-Connect, HCP
SKU: DS-QAZ1325G1T
Categories: Audio & Visual, Audio Products, Network (IP) Speakers
Tags: Audio, Hikvision, Horn, IP, IP Speaker, Network, Outdoor, PA (Public Address), Paging, Speaker, Weatherproof
Hikvision DS-QAZ1325G1T Outdoor-Rated Weatherproof Network IP Horn Speaker – 25w Output – Built-in 4GB eMMC – Built-in Mic – Smart Audio Linkage – Works with Hik-Partner Pro, iVMS-4200, Hik-Connect, HCP
Key Features :-
- Adopts high-speed industrial grade dual core chips, built-in NOR Flash + EMMC dual storage, support dual backup of the system to ensure stable and reliable system performance.
- Supports secure startup, user login locking mechanism, and password complexity prompts, support security audit log traceability, and improve system network security.
- Supports batch unified management of remote platforms through IP networks (local area networks/public networks) and flexible configuration of local WEB single machines, while also support local audio collection and playback, adapting to various scene applications.
- Supports alarm input, arming schedule, and audio linkage, support TTS speech synthesis and text broadcasting, with natural and smooth standard male and female dual audio options.
- Supports two-way audio by SIP
- Notes * – This IP speaker can work standalone on it’s own and can be controlled/accessed by Hik-Partner Pro app (for the installers), Hik-connect app (for the end-users) and iVMS-4200 software. It also supports smart-linkage to a Hikvision M-series NVR on Hik-connect app.
Security Protection
Background Music and Queue Calling
Paging and Notifications
Audio Visual Convergence
Microphone
- Type: electret
- Amount: 2
- Frequency Response: 100 Hz to 20 kHz
- Sensitivity: -42 dBV/Pa
- Sampling Rate: 48 kHz
- Quantization Bits: 16 bit
Speaker
- Rated Power: 25 W
- Impedance: 8 Ω
- Max. Acoustic Pressure: 124 dBSPL
- Sensitivity (1 m, 1 W): 110 dB
- Direction: 70° horizontal by 100° vertical
- Frequency Response: 300 Hz to 13 kHz
- SNR: 83 dB
Function
- Audio Algorithm: AEC, AGC, ANS, DRC
- Audio Bit Rate: G.711ulaw (64 Kbps) / G.711alaw (64 Kbps) / MP3 (128 Kbps)
- Audio File Format: MP3, WAV
- NTP Timing: Support
- Broadcast: Regular broadcast, live broadcast, emergency broadcast
- Two-Way Audio: Support
- Speech Synthesis: Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil)
Network
- Network Protocol: IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
- Interface Protocol (API): ISAPI, ISUP, SIP, RTP, ONVIF
- Client: Hik-Connect, iVMS-4200, HikCentral Professional, Hik-Partner Pro, NVR, Milestone
Communication
- Communication Method: Support wired network communication
Interface
- Alarm: Alarm input x 1
- Ethernet Interface: RJ45 10 M/100 M Adaptive Ethernet port × 1
- Power Output: 12 VDC, 25 mA(max.)
- Local Storage: Built-in 4 GB EMMC (Audio file storage is 1 GB.)
- API: ISAPI, ISUP, SIP,ONVIF
- Reset: Support
General
- Material: Metal
- Operating Temperature: -30 °C to 60 °C(-22 °F to 140 °F)
- Operating Humidity: ＜90% (No condensation)
- Language: 9 languages: English, French, Spanish, German, Italian, Russian, Japanese, Thai, Portuguese (Brazil)
- Dimension: 182.4 mm × 273.87 mm × 239.38 mm (7.18″ × 10.78″ × 9.42″)
- Power: 24 VDC , 1167mA , 28W
- Package Dimension: 310 mm × 245 mm × 350 mm (12.2″ × 9.6″ × 13.8″)
- Weight: Approx. 2.1 kg
- Color: White
- With Package Weight: Approx. 3.40 kg
- Packing List: Device × 1, Regulatory Compliance and Safety Information × 1
Approval
- Protection: IP67, IK10
- EMC: CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
- Safety: CB: IEC 62368-1:2014; CE-LVD: EN 62368-1:2014/A11:2017
- Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
