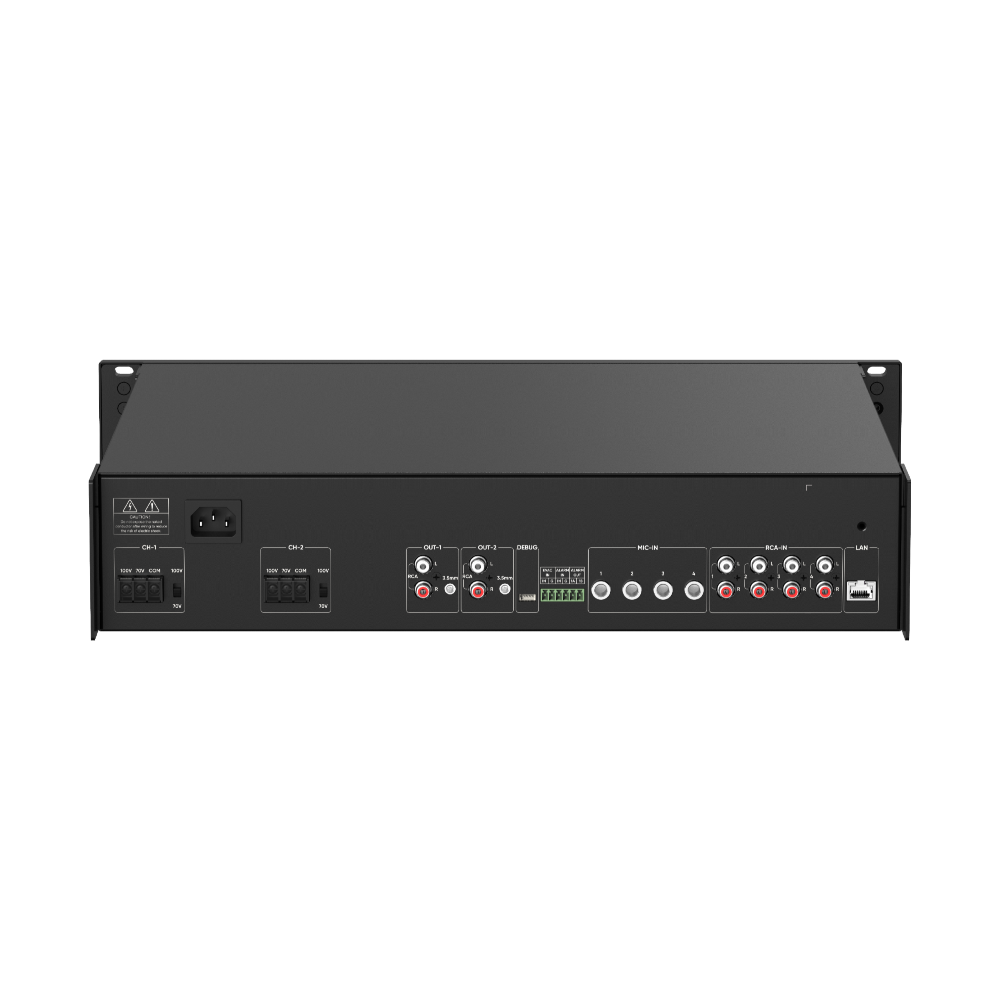

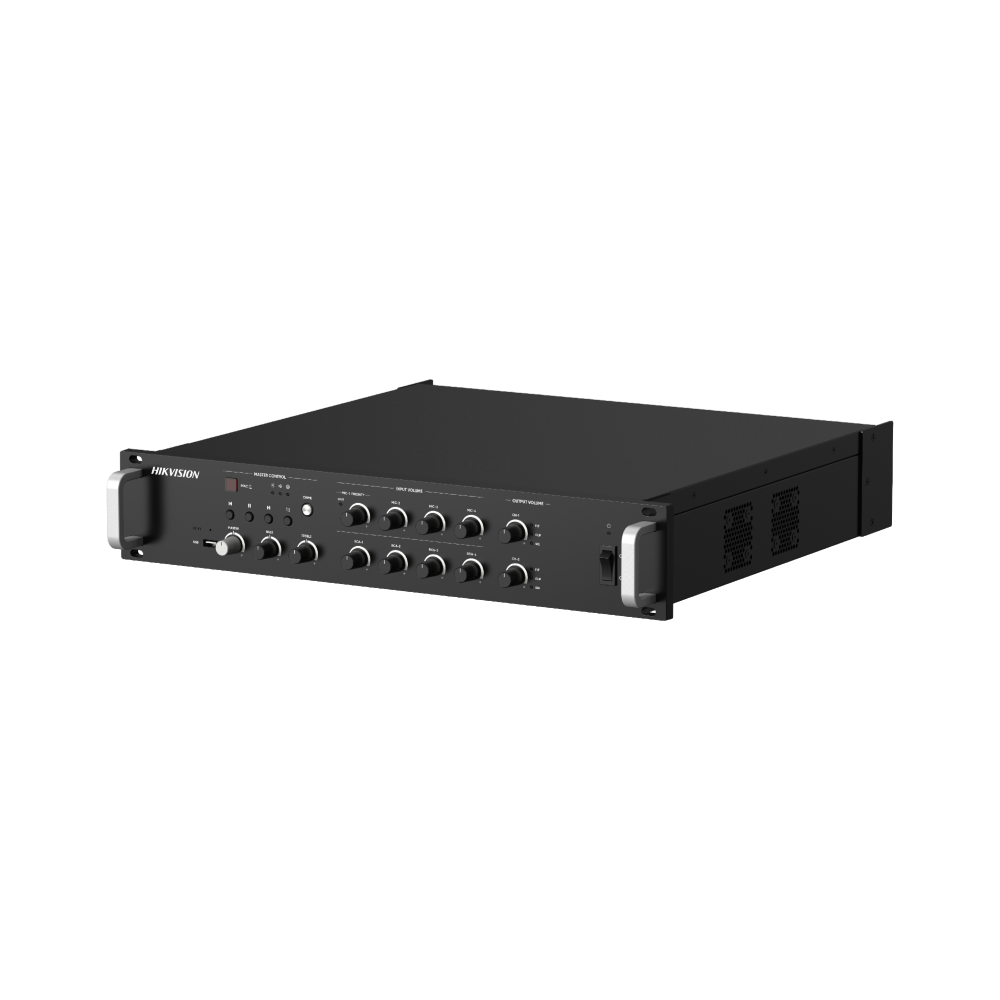

Hikvision DS-QAZ1A500G1-VB2

Interface

• Audio In: Green end (terminal block), constant voltage input：100 V， COM

Speaker

• Impedance: 8 Ω
• Rated Power: 20 W
• Sensitivity: (1 m, 1 W) 89.5 dB ± 3 dB
• Max. Acoustic Pressure: 96 dBSPL
• Frequency Response: 100 Hz to 20 kHz
• Speaker UnitFull frequency: 4′′ × 1 ， high frequency 0.75′′ × 1
• Coverage Angle: Horizontal: 150°; Vertical: 160°

Approval

• Protection: IP66

General

• Color: White
• Material: Front cover：steel mesh, back cover: plastic
• Dimension: 280 mm × 161.9 mm × 119.8 mm (11.02″× 6.37″ × 4.72″)
• Approx. 1862.4 g (4.11 lb.)
• Package Dimension: 340 mm × 306 mm × 175 mm (13.39″× 12.05″ × 6.89″)
• With Package Weight: 2610.2 g (5.75 lb.)
• Packing List: Device × 1, Screw pack × 1, L-Bracket × 2, Regulatory Compliance and Safety Information × 1
• Operating Temperature: -25 °C to 55 °C(-13 °F to 131 °F)
• Operating Humidity: ＜90% (No condensation)
