Hikvision DS-QAZ1MP7G1

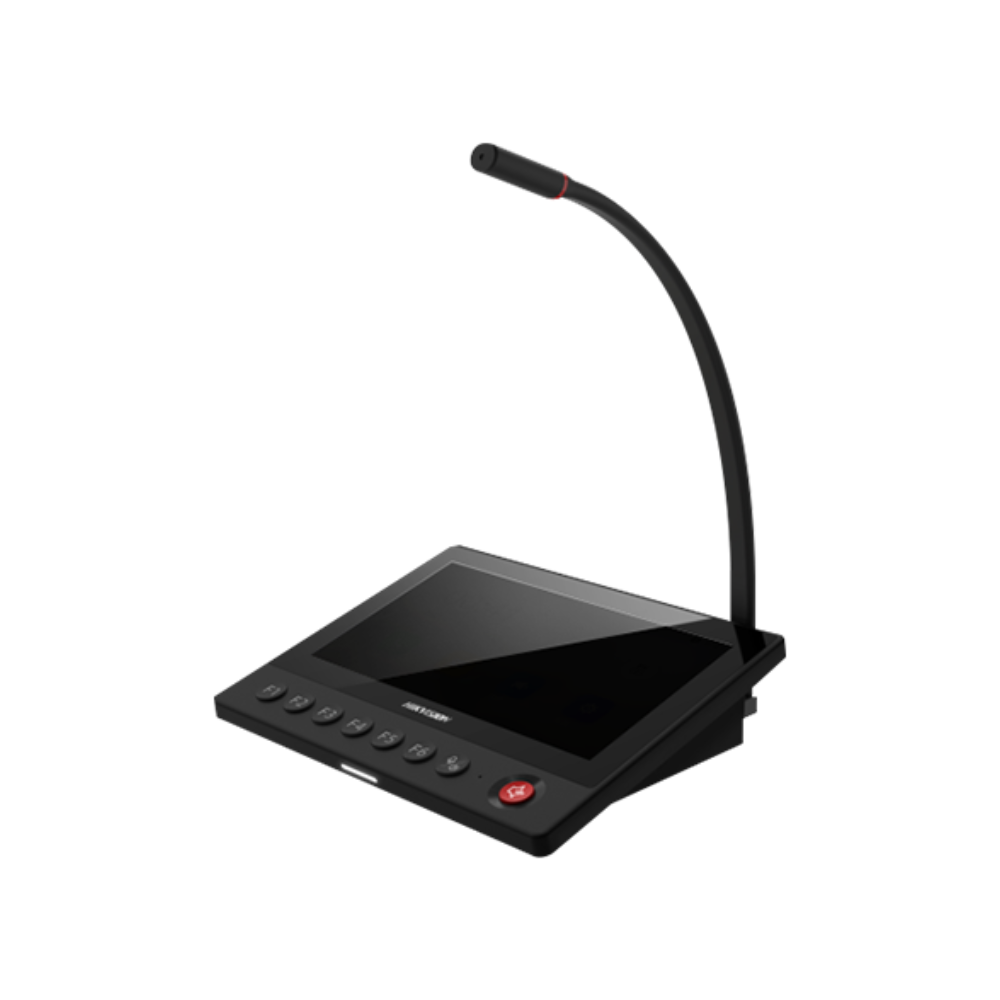

Hikvision DS-QAZ1MP7G1 Network IP PA Paging Microphone – 7″ (7-Inch) Display Touchscreen – Smart Audio Linkage – Works with HCP
SKU: DS-QAZ1120G1R-B/Black-1
Categories: Audio & Visual, Audio Products, Network (IP) Microphones
Tags: Audio, Built-in Mic, Hikvision, IP, Microphone, Network, PA (Public Address), Paging
Hikvision DS-QAZ1MP7G1 Network IP PA Paging Microphone – 7″ (7-Inch) Display Touchscreen – Smart Audio Linkage – Works with HCP
Key Features :-
- 7-inch color IPS touch screen, resolution: 1024 × 600
- Support real-time broadcasting, speaking, or playing media library files on specified partitions or terminals
- One or more terminals can be selected, and shortcut keys can be set to broadcast, up to 6 shortcut options (F1 to F6) can be defined
- 1-channel gooseneck microphone audio input, 1-channel 4-segment 3.5 mm audio input
- 1-channel local speaker audio output, 1-channel 3.5 mm audio output
- Support logging in through an account and password
- Support parameter setting, account management, system maintenance, and other operations
- Support long press (for 3 seconds) one-key emergency call to emergency call designated terminals or all terminals
Security Protection
Background Music and Queue Calling
Paging and Notifications
Audio Visual Convergence
Protocol
- Network Protocol: ISAPI, ISUP
Function
- Audio Bit Rate: G.711U, 64 Kbps; Sampling bit width: 16 bits
- Echo Cancellation: Yes
Network
- Client: HikCentral Professional
Interface
- Network Interface: 1
- Local Storage: Support TF card
- Button: Physical buttons and on-screen buttons
- Display Screen: IPS, 7 inches, 1024 × 600, touch screen
General
- Power: 12 VDC, max.10 W
- System Requirement: Embedded operating system
- Operating Temperature: -10 °C to +50 °C (14 °F to 122 °F)
- Operating Humidity: 10% to 90%
