Hikvision DS-SBOX-01

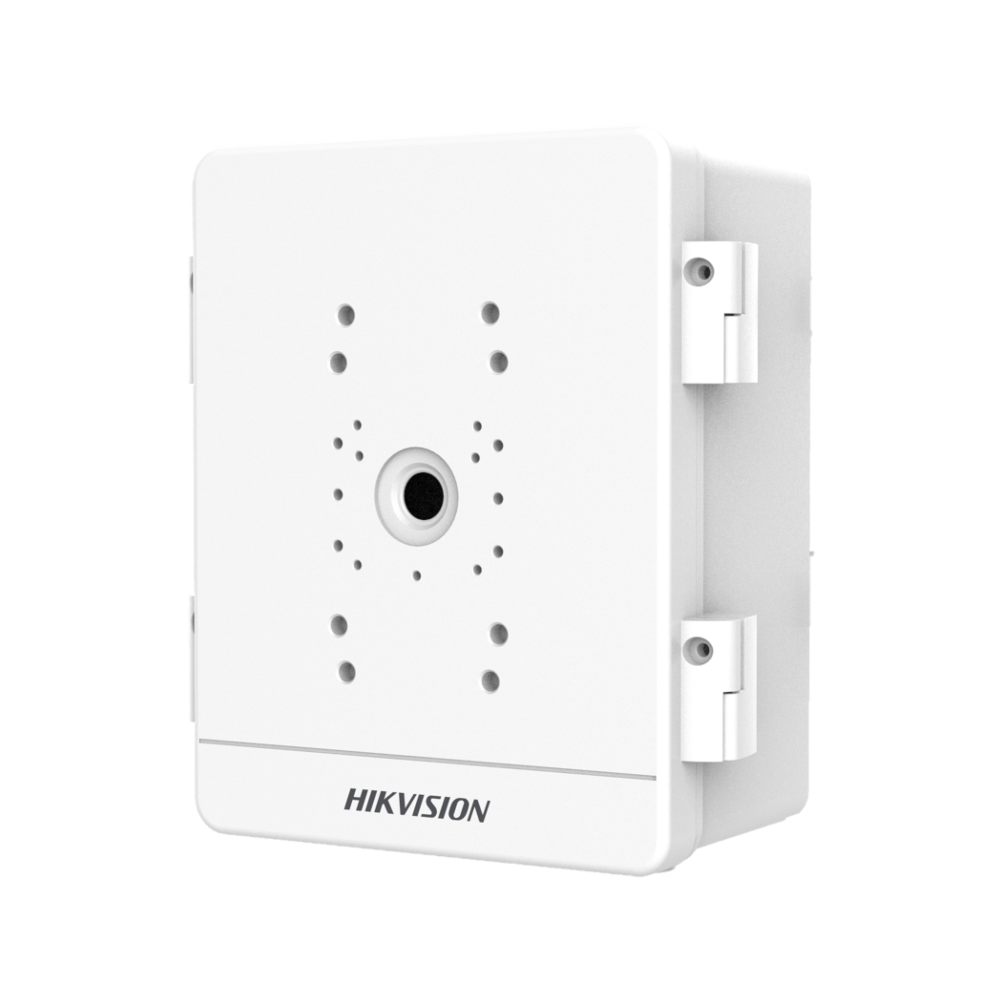

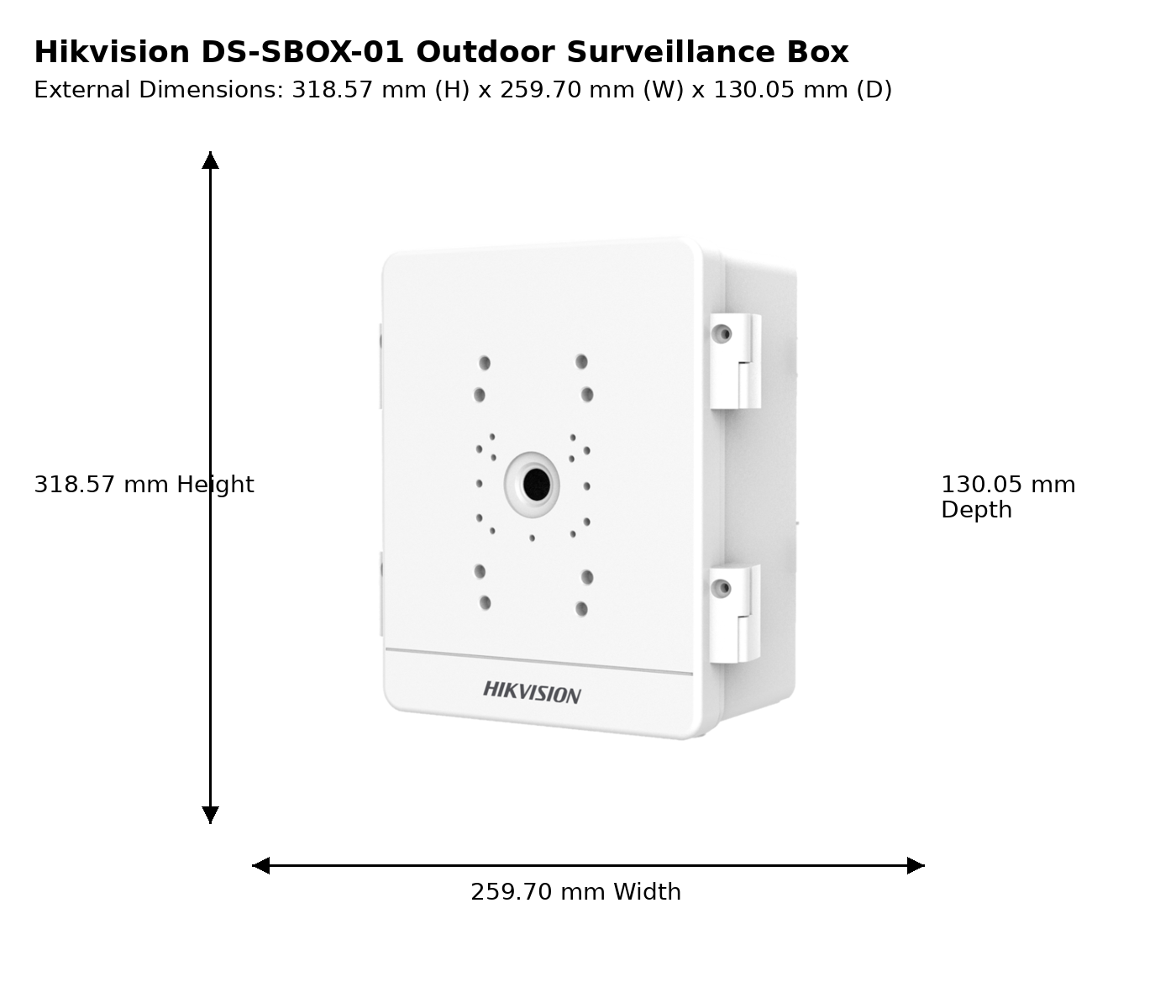

Hikvision DS-SBOX-01 Weatherproof Outdoor-rated Surveillance Box – Enclosure – Cabinet – Pole-Mount Design – External Dimensions: 318.57mm x 259.7mm x 130.05mm
SKU: DS-SBOX-01
Categories: Network / Data / Server - Cabinets & Enclosures, Networking Products, Outdoor Weatherproof Cabinets
Tags: Box, Cabinet, Enclosure, Hikvision, Outdoor, Pole-Mount, Surveillance, Weatherproof
Hikvision DS-SBOX-01 Weatherproof Outdoor-rated Surveillance Box – Enclosure – Cabinet – Pole-Mount Design – External Dimensions: 318.57mm x 259.7mm x 130.05mm
Key Features :-
- High strength Polymer Material (Flame Proof UL94-V0)
- Fast Deployment & Easy Installation for both pole and wall mounting
- Highly adaptable with Hikvision network cameras, PTZ, and network horn speakers
- Recommended for use with DS-1275ZJ-SUS mounting bracket when the pole diameter ranges from 67 mm to 127 mm
- IP66 & IK10 Protection
General
- Material: PC/ASA; Hikvision White(RAL 9003)
- Weight: 2.5 kg (5.51 lb.)
- Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function: Loading Capacity of Front Panel: 8 kg (17.64 lb.)
- Packing List:
-
- Security Box: ×1
- Installation Back Plate: ×1
- Pegboard: ×1
- Shelf Board: ×1
- Din Rail: ×2
- Phillips Head Screw (M8 × 20): ×8
- Phillips Head Screw (M8 × 12): × 2
- Phillips Head Screw (M4 × 10): ×4
- Self-Tapping Screw (M3 × 10): ×10
- Hex Head Phillips Screw (M8 × 25): ×4
- Hex Socket Screw (M6 × 25): ×4
- Hexagon Socket Screwdriver: ×1
- Cylindrical Pin (M4 × 40): ×4
- Waterproof Cable Connector 1 (5 to 6.5 mm): ×1
- Waterproof Cable Connector 2 (6.5 to 8 mm): ×1
- Network Cable Piercing Accessories: ×1
- Cable Gland (G3/4): ×1
- Cable Gland (M20): ×2
- Metal Strapping Band: ×3
-
Approval
- Protection: IP66, IK10
