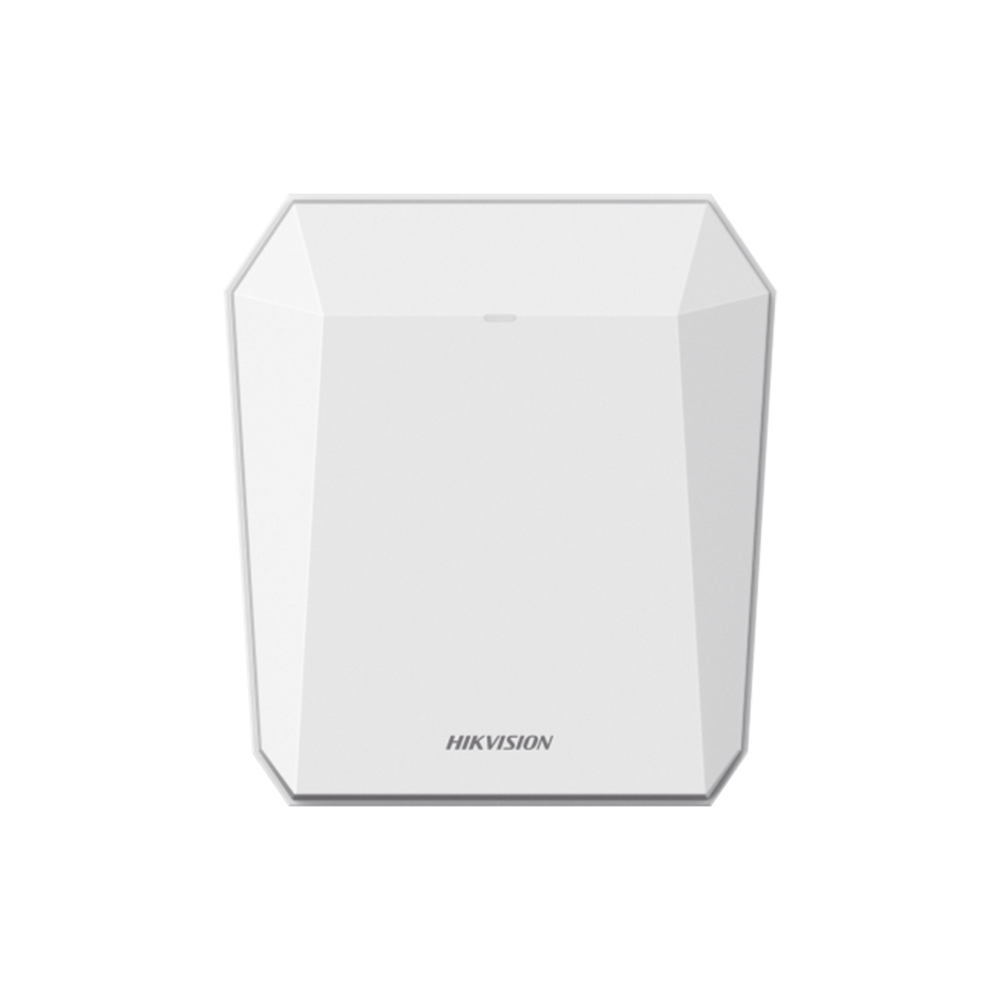

Hikvision DS-TDSB0G-FK/120m
Hikvision DS-TDSB0G-FK/120m Security Radar – 120m Distance Coverage – NEMA 4X Anti-Corrosion – 120° Horizontal Detection – IP67 Weatherproof
SKU: DS-TDSB0G-FK/120m
Category: Security Radars
Tags: Hikvision, IP67 Rated, NEMA-4X, Radar, Security, Weatherproof
Hikvision DS-TDSB0G-FK/120m Security Radar – 120m Distance Coverage – NEMA 4X Anti-Corrosion – 120° Horizontal Detection – IP67 Weatherproof
Key Features :-
- Supports getting information such as the distance, speed, and angle of the object.
- Supports target locating and trace following.
- Multi-target locking and multi-dimensional videos linkage.
- Multi-scene modes selectable. Sensitivity configurable.
- Local videos analysis recheck and pictures capture to filter the false alarms such as the swaying trees and pets.
- Supports 32 targets detection, 16 detection zones, and 4 warning lines.
- Strong environment adaptability with 24/7 all-weather working properly
- Water and dust resistant (IP67) and vandal proof (IK10)
More info on Hikvision Security Radars
Radar
- Working Frequency: 24.05 to 24.25 GHz
- Modulation Waveform: FMCW
- Sweep Bandwidth: 115M Hz
- Scan Rate: Up to 12 time(s) per second
- Horizontal Detection Angle: 120°
- Vertical Detection Angle: 16°
- Max. Detectable Targets: Up to 32 target(s)
- Max. Detectable Zones: Up to 16 zone(s)
- Max. Detection Trigger Lines: Up to 4 trigger line(s)
- Detection Target Type: Human, Vehicle
- Detection Distance: Human: 120 m, Vehicle: 150 m
- Distance Resolution: 1.3 m
- Distance Measurement Accuracy: ± 1 m
- Angle Resolution: 12°
- Angle Accuracy: ± 1 °
- Speed Measuring Range: – 19 to 19 m/s
- Speed Resolution: 0.075 m/s
- Speed Measuring Accuracy: ± 0.1 m/s
Network
- Protocols: TCP/IP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, NTP, IPv4/IPv6, UDP, SSL/TLS, ARP
- Simultaneous Live View: Up to 32 channel(s)
- API: SDK, ISAPI
- User/Host: Up to 16 users,3 user levels: administrator, operator, and user
- Security: Password protection, Complicated password, HTTPS encryption, Basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, Control timeout settings, TLS 1.2,Host authentication (MAC address)
- Client: Hik-Central Pro
- Web Browser: Chrome V61+, IE9 to IE11, Firefox V41+, Edge
Interface
- Network Interface: 1* RJ45 10 M/100 M/1000 M self-adaptive Ethernet port(s)
- On-Board Storage: Built-in 128G memory card
- Alarm: 1 input, 4 Relay output(s)(max. 30 VDC/125 VAC, 1 A )
- RS-485: 1* RS-485
- RS-232: 1* RS-232
- Indicator: Supported
Function
- Radar + PTZ Smart Tracking: Supported
- Zone Settings: Warning zone, Early warning zone, Disable zone
- Tracking Mode: Time priority, Range priority, Multi-target auto switch, Target trigger priority
- Scene Mode: Expert mode, Open mode, Shrub mode
- Map Management: Supported
General
- Power: DC 36 V ±25%, 0.67 A, max. 24 W, two-core terminal block; AC 24 V ±25%, 1 A, max. 24 W, two-core terminal block
- Material: Cover: PC, main body: ADC12
- Dimensions: 228 mm × 206 mm × 61 mm (8.98″ × 8.11″ × 2.4″) (L × W × H)
- Package Dimensions: 489 mm × 300 mm × 140 mm (19.25″ × 11.81″ × 5.51″) (L × W × H)
- Weight: Approx. 1.8 kg (3.97 lb.)
- With Package Weight: Approx. 3.6 kg (7.94 lb.)
- Operating Condition: -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
- Storage Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (Non-condensing)
- Installation Height: 2 to 4 m (Recommend height: 2.5 m)
Approval
- EMC: CE-EMC: EN 55032: 2015+A11:2020+A1:2020, EN IEC61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021, EN 50130-4: 2011+A1: 2014
- RF: CE-RED: EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 300440 V2.1.1, EN IEC 62311: 2020
- Safety: CB: IEC 61010-1: 2010, IEC 61010-1: 2010/AMD1: 2016; CE-LVD: EN 61010-1: 2010+A1: 2019
- Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
- Protection: IK10: IEC 62262: 2002; IP67: IEC 60529: 1989+A1: 1999+A2: 2013
- Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
