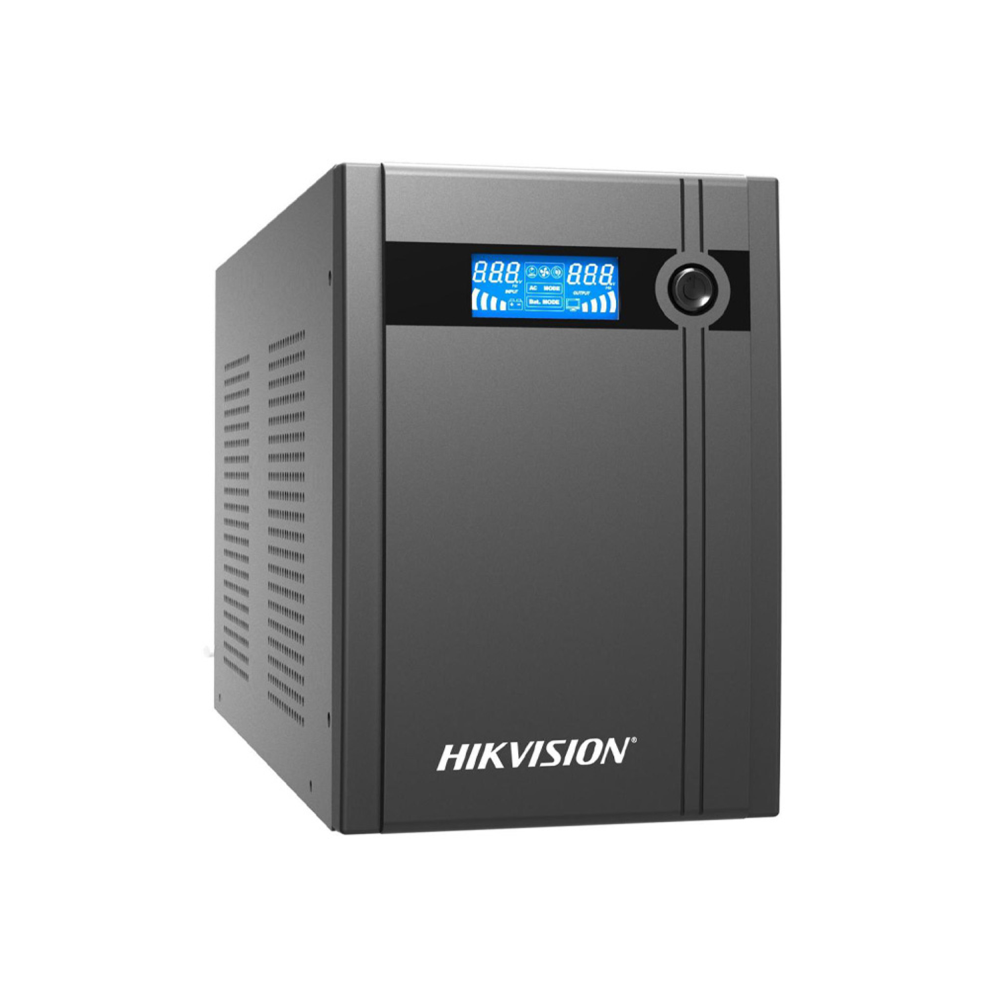

Hikvision DS-UPS2000-AU

Power

• UPS Capacity: 2000 VA / 1200 W

Input

• Input Voltage Range: 140 VAC to 290 VAC
• Input Frequency: 50/60 Hz self-adaptive
• Plug Type: AU TYPE I

Output

• Output Voltage Range: 210 VAC to 235 VAC
• Output Frequency: 50 Hz ± 0.5 Hz
• Transfer Time: ≤ 10 ms
• Waveform: PWM
• Outlet Type: AU TYPE I
• Outlet Number: 4 Battery
  • Battery Type12 V/9 Ah *2 pcs, lead-acid battery
  • Recharge Time6-8 hours recover to 90% capacity

• Typical Backup Time: Run time at 100w: 70 min; Run time at 300w: 17 min; Run time at 600w: 5 min

Interface

• Communicate Ports: USB

Protection

• Full Protection: Surge protection, Overload protection, Discharge protection, Short circuit protection

Indicator

• Display: LCD Screen – Input Voltage, Output Voltage, Battery capacity, load level
• Alarm: Charging Mode (DC mode): Sounding every 8 seconds; Low Battery: Sounding every second; Overloading Mode: Sounding every 0.5 seconds; Fault: Continuously sounding

General

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F）
• Operating Humidity: 30% to 90% (non-condensing)
• Dimension: 345 mm × 122 mm × 192 mm (13.58″ × 4.80″ × 7.56″)
• Weight: Approx. 11 kg (24.3 lb)
