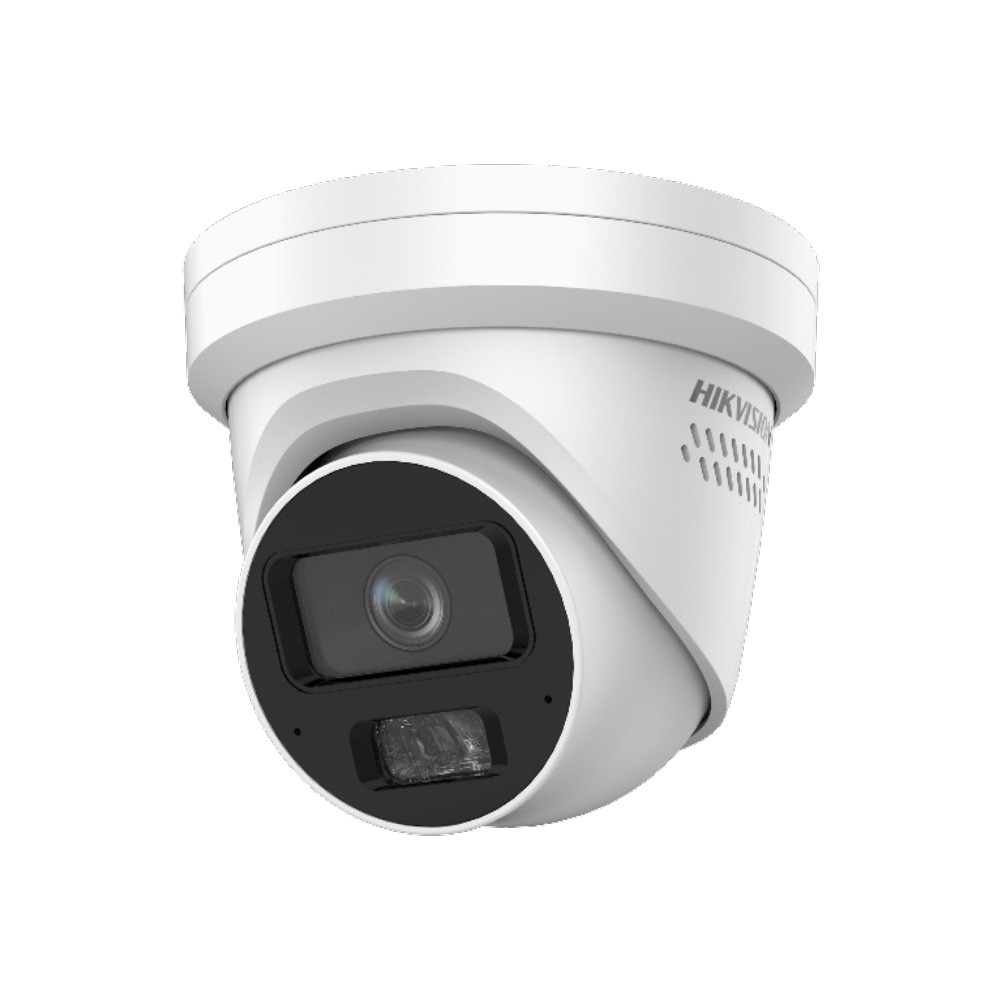

Hikvision iDS-2CD7347G0/P-XS-4MM
Hikvision iDS-2CD7347G0/P-XS-4MM DeepInView DarkFighterS H265 4MP PoE IP Smart-Hybrid-Light (40m IR + 40m White-Light) 140dB True-WDR Low-Light (0.003 Lux Colour) Weatherproof ANPR (Automatic Number Plate Recognition) LPR (License Plate Recognition) Eyeball Turret Camera with 4mm Fixed Lens – 94.7° Horizontal Wide Angle FoV
SKU: iDS-2CD7347G0/P-XS-4MM
Categories: CCTV / Surveillance, IP ANPR LPR Cameras, IP Cameras, IP Surveillance
Tags: 140dB True-WDR, 4MP, Alarm, ANPR, Automatic Number Plate Recognition, Camera, DeepinView, Fixed Lens, H265, Hikvision, IP Camera, IP67 Rated, IR, License Plate Recognition, LPR, Network Camera, PoE, Smart Dual Light, Smart Hybrid Light, Weatherproof
Hikvision iDS-2CD7347G0/P-XS-4MM DeepInView DarkFighterS H265 4MP PoE IP Smart-Hybrid-Light (40m IR + 40m White-Light) 140dB True-WDR Low-Light (0.003 Lux Colour) Weatherproof ANPR (Automatic Number Plate Recognition) LPR (License Plate Recognition) Eyeball Turret Camera with 4mm Fixed Lens – 94.7° Horizontal Wide Angle FoV
Key Features :-
- License Plate Recognition
- 94.7° horizontal wide angle view with 4mm fixed lens
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 1 GB eMMC storage for sharing resources
- High quality imaging with 4MP resolution
- Excellent low-light performance via DarkFighterS technology
- Clear imaging against strong back light due to 140 dB WDR technology
- 5 streams to meet a wide variety of applications
- Efficient H.265+ compression technology to save bandwidth and storage
- Water and dust resistant (IP67)
- Note :- Good for picking up car-plates at up to 7m distance from mounting* (please check ANPR LPR FAQ)
Camera
- Image Sensor: 1/1.8″ Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Min. Illumination: Color: 0.0003 Lux @ (F1.0, AGC ON); B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter; Blue glass module to reduce ghost phenomenon
Lens
- Focal Length & FOV: 4MM – horizontal FOV 94.7°, vertical FOV 49.4°, diagonal FOV 112.6°
- Iris Type: Fixed
- Aperture: F1.0
DORI
- DORI: 4mm: D: 72.1 m, O: 28.6 m, R: 14.4 m, I: 7.2 m
Illuminator
- Supplement Light Type: Hybrid (IR and white light)
- Supplement Light Range: 40 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
HEOP
- Open Resources: Memory – 40MB; Smart RAM – 350MB; eMMC – 1GB
- Computing Power: 1.5 TOPS
- Open Capability: HEOP 2.0 OpendevSDK
- Deep Learning Structure: Caffe, TensorFlow, PaddlePaddle, ONNX
- Programming Language: C++
Video
- Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
- Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream / Third stream / Fourth stream / Fifth stream: H.265 / H.264 / MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR / VBR
- Scalable Video Coding (SVC): H.265 and H.264 encoding
- Region Of Interest (ROI): 4 fixed regions for each stream
- Target Cropping: Yes
Audio
- Audio Type: Mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets - Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3 - Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- Client: iVMS-4200, Hik-Connect
- Web Browser: Plug-in required live view: IE10, IE11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
- Wide Dynamic Range (WDR): 140 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, Defog, 3D DNR
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Image Stabilization: EIS
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB
- Audio: 1 input, 1 output (max. 12 VDC, 30 mA)
- RS-485: RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key: Yes
- Power Output: 12 VDC, max. 100 mA
Event
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
- Smart Event: scene change detection, audio exception detection, defocus detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
Deep Learning Function
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types
- Road Traffic And Vehicle Detection: Blocklist and allow-list: up to 10,000 records; Support license plate recognition of vehicles
Support vehicle attribute detection, including vehicle type, color, brand, etc.; Number plate detection distance: 2.5m (2.8mm), 4m (4mm).
General
- Power: 12 VDC ± 20%, 0.66 A, max. 7.9 W; PoE: IEEE 802.3af, Type 1, Class 3, 36 V to 57 V, 0.16 A to 0.26 A, max. 9.69 W
- Material: Aluminum alloy body
- Dimension: Ø138.6 mm × 124.4 mm (Ø5.46″ × 4.86″)
- Package Dimension: 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 6.0″)
- Weight: Approx. 820 g
- With Package Weight: Approx. 1095 g (2.42 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
- General Function: Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
Approval
- EMC: CE-EMC: EN 55032: 2015+A1:2020, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019; RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015 - Safety: UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
