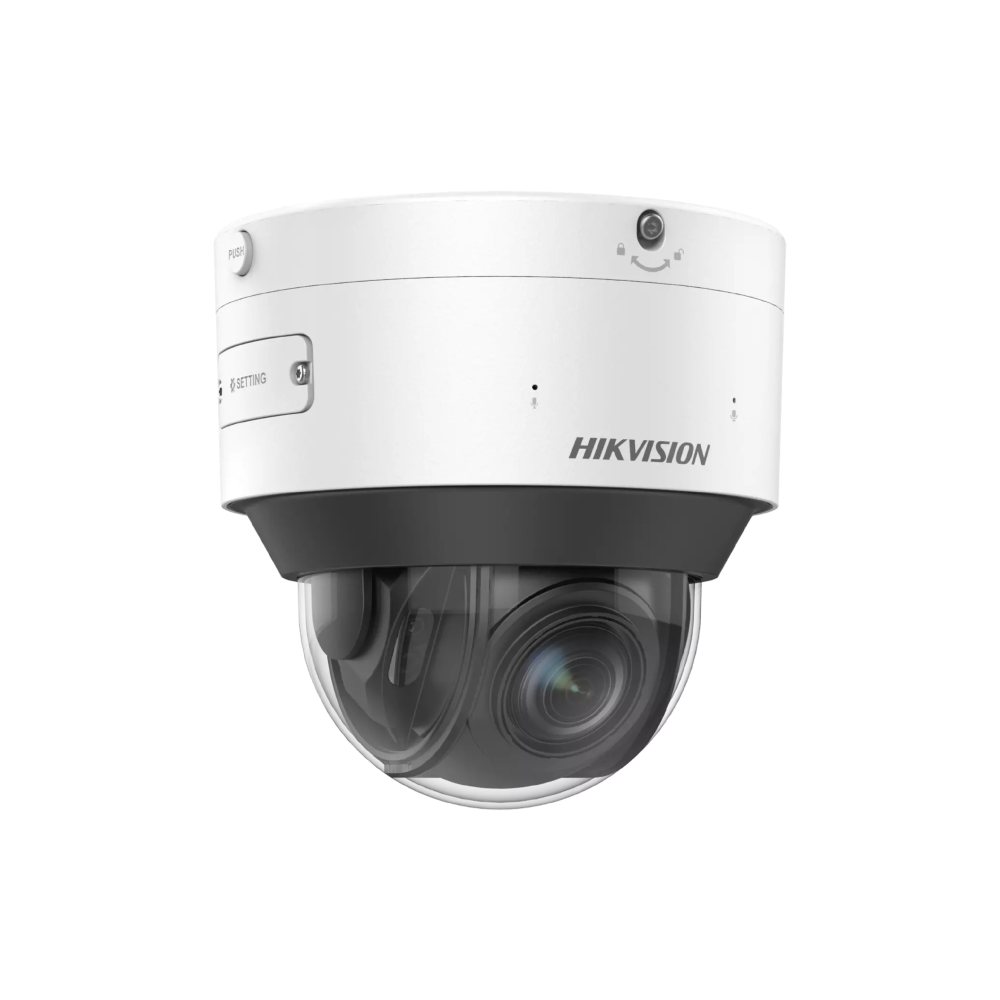

Hikvision iDS-2CD7547G0/P-XZHSY

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0003 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter, Blue glass module to reduce ghost phenomenon
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 85°, rotate: 0° to 355°

Lens

• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1°
• Focus: Auto, Semi-auto, Manual
• Iris Type: P-iris
• Aperture: F1.0 to F1.2

Illuminator

• IR Wavelength: 850 nm
• Smart Supplement Light: Yes
• Supplement Light Range: 2.8 to 12 mm: up to 30 m
• Supplement Light Type: Hybrid (IR and White Light)

Video

• Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720), 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
• Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
• Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
• Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
• Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264; Fourth stream: H.265 / H.264 / MJPEG; Fifth stream: H.265 / H.264 / MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 4 fixed regions for each stream
• Target Cropping: Yes

Audio

• Audio Bit Rate; 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
• Audio Sampling Rate: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
• Audio Type: Mono sound
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
• Simultaneous Live View: Up to 20 channels
• API: ONVIF (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
• User/Host: Up to 32 users,  3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+;

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
• Day/Night Switch: Day,Night, Auto, Schedule, Alarm Trigger, Video Trigger
• Wide Dynamic Range (WDR): 140 dB
• Privacy Mask: 8 programmable polygon privacy masks
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog
• Image Stabilization: EIS
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Interface

• Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• Audio: 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
• Built-In Microphone: Yes, 2 built-in microphones
• Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
• Built-In Speaker: Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m
• RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key: Yes
• Power Output: 12 VDC, max. 100 mA
• Wiegand: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
• Smart Event: scene change detection,audio exception detection,defocus detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Deep Learning Function

• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Support combined event alarm triggering
• Metadata: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic
• Road Traffic And Vehicle Detection:
  • Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
  • Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
  • Support vehicle and non-vehicle counting: Blocklist and allowlist: up to 10,000 records
  • LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
  • Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98%; Capture rate ≥99%; Driving direction accuracy rate ≥98%
  • Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h; Side installation: up to 80 km/h
  • Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

Parking Management

• • • Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm

    • Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm

General

• Power: 12 VDC ± 20%, 2.01 A, max. 24.01 W, three-core terminal block; 24 VAC ± 20%, 1.51 A, max. 24.01 W, three-core terminal block; PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.60 A to 0.44 A, max. 25.43 W
• Material: Aluminum alloy body
• Dimension: Ø160 mm × 159.5 mm (Ø6.3″ × 6.3″)
• Package Dimension: 251 mm × 215 mm × 189 mm (9.9″ × 8.5″ × 7.4″)
• Weight: Approx. 2100 g (4.62 lb.)
• With Package Weight: Approx. 2850 g (6.28 lb.)
• Startup And Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
• Heater: Yes
• Device Management: Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

Approval

• EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
• Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005; LOA: IEC/EN 60950-1
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
• Automotive And Railway: EN50121-4
• Other: PVC FREE
