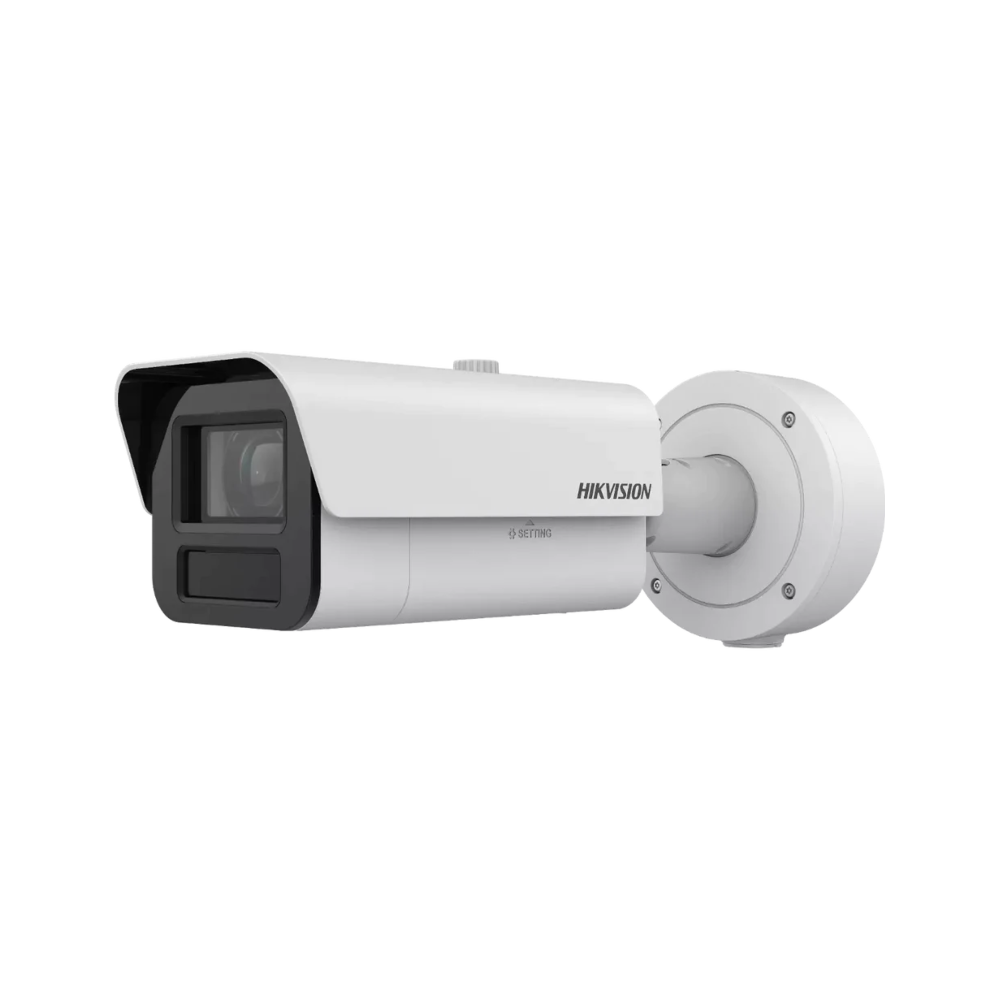

Hikvision iDS-2CD7A45G0/P-IZHSY(118)

Camera

• Image Sensor: 1/2.5″ Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Time: 1 s to 1/30,000 s
• Day & Night: IR cut filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focal Length & FOV: 4.7 to 118 mm, horizontal FOV 58° to 2.8°, vertical FOV 32.3° to 1.6°, diagonal FOV 63° to 3°
• Focus: Auto, Semi-auto, Manual
• Iris Type: P-iris
• Aperture: 4.7 to 118 mm: F1.6 to F3.8

DORI

• Wide: D (Detect): 106 m, O (Observe): 42.1 m, R (Recognize): 21.2 m, I (Identify): 10.6 m
• Tele: D (Detect): 2200 m, O (Observe): 873 m, R (Recognize): 440 m, I (Identify): 220 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 200 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720), 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720), 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
• Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
• Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
• Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG; Third stream:  H.265 / H.264; Fourth stream: H.265 / H.264 / MJPEG; Fifth stream: H.265 / H.264 / MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 4 fixed regions for each stream
• Target Cropping: Yes
• E-PTZ: Support Patrol and Auto Tracking settings

Audio

• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Type: Mono sound
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
• Simultaneous Live View: Up to 20 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+;

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
• Wide Dynamic Range (WDR): 140 dB
• Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog
• SNR: ≥ 52 dB
• Privacy Mask: 8 programmable polygon privacy masks
• Image Stabilization: EIS (Built-in gyroscope to improve EIS performance)
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface

• Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485: -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key: Yes
• Power Output: -Y: 12 VDC, max. 100 mA

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle), video tampering alarm, video quality diagnosis, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), vibration detection
• Smart Event: scene change detection, audio exception detection, defocus detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Deep Learning Function

• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Support combined event alarm triggering
• Metadata: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic
• Road Traffic And Vehicle Detection

  • Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.; Support vehicle and non-vehicle counting; Blocklist and allowlist: up to 10,000 records; LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions; Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98%; Capture rate ≥99%; Driving direction accuracy rate ≥98%; Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h, Side installation: up to 80 km/h; Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

• Parking Management:

  • Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm

  • Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm

General

• Power: 12 VDC ± 20%, 1.73 A, max. 20.7 W, three-core terminal block; 24 VAC ± 20%, 1.31 A, max. 19.9 W, three-core terminal block

  PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.46 A to 0.35 A, max. 19.5 W

• Material: Aluminum alloy body
• Dimension: With -Y: Ø140 mm × 378.4 mm (Ø5.5″ × 14.9″)
• Package Dimension: 425 mm × 190 mm × 180 mm (16.7″ × 7.5″ × 7.1″)
• Weight: With -Y: Approx. 2160 g (4.8 lb.)
• With Package Weight: With -Y: Approx. 3310 g (7.3 lb.)
• Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter
• Heater: Yes
• De-Icing: Yes
• Device Management: Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

Approval

• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 201;
• Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005; LOA: IEC/EN 60950-1
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
• Other: PVC FREE
