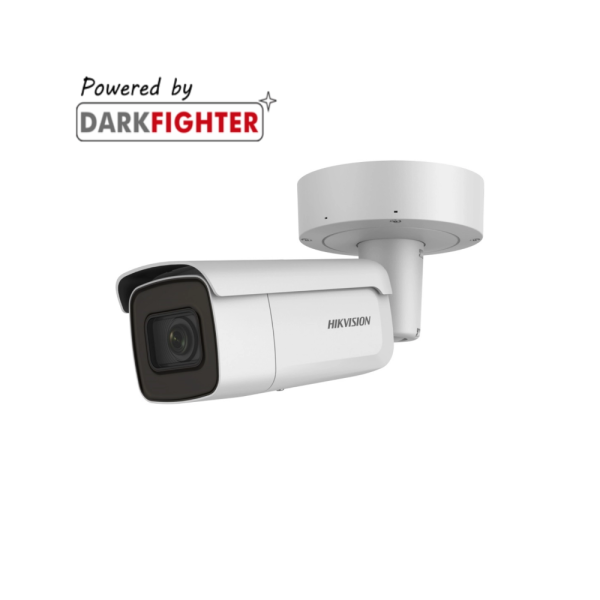

Hikvision iDS-2CD7AC5G0-IZHSY

Camera

• Image Sensor: 1/1.7″ Progressive Scan CMOS
• Min. Illumination: Color: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON)
• Max. Resolution: 4000 × 3000
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter: Blue glass module to reduce ghost phenomenon.
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Focus: Auto, semi-auto, manual
• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV: 96.2° to 36.4°, vertical FOV: 69.3° to 27.2°, diagonal FOV: 129.4° to 45.5°
• Aperture: 2.8 to 12mm: F1.2 to F2.5
• Lens Mount: Integrated
• P-Iris: Yes

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: 2.8 to 12 mm: 50 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Main Stream: 50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); 50 Hz: 20 fps (4000 × 3000); 60 Hz: 20 fps (4000 × 3000)
• Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
• Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
• Custom Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream/third stream/fourth stream/fifth stream/custom stream:  H.265 / H.264 / MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR / VBR
• Scalable Video Coding (SVC): H.265 and H.264 encoding
• Region Of Interest (ROI): 4 fixed regions for each stream
• Target Cropping: Yes

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3
• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)/8 to 320 Kbps (MP3)
• Audio Type: Mono sound

Network

• Simultaneous Live View: Up to 20 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Smooth Streaming: Yes
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
• Network Storage: microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE8+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+; Local service: Chrome 41.0+, Firefox 30.0+


• Day/Night Switch: Day, Night, Auto, Schedule, Triggered by Alarm In
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
• Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR: ≥ 52 dB

Interface

• Alarm: 2 input, 2 output (max. 24 VDC, 1 A)
• Audio: Without -R: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound; 2 built-in microphones
• RS-485: With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Video Output: 1 Vp-p Composite Output(75 Ω/CVBS) (For debugging only)
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Reset Key: Yes
• Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• Power Output: 12VDC, max. 100 mA (supported by all power supply types)

Event

• Basic Event: Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture; Trigger recording: memory card, network storage, pre-record and post-record; Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email; Trigger notification: HTTP, ISAPI, alarm output, Email.
• Smart Event: Line crossing detection, up to 4 lines configurable; Intrusion detection, up to 4 regions configurable; Region entrance detection, up to 4 regions configurable; Region exiting detection, up to 4 regions configurable; Unattended baggage detection, up to 4 regions configurable; Object removal detection, up to 4 regions configurable; Scene change detection, audio exception detection, defocus detection

Deep Learning Function

• Multi-Target-Type Detection: Supports simultaneous detection of human body and face; Gets 8 face features and 13 human body features.
• Face Capture: Face Recognition Detects up to 30 faces simultaneously; Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; Up to 3 face libraries with up to 30000 faces each are configurable; Recognizes face identity via face modeling, grading and comparing to those in face library; Supports face library encryption.
• Hard Hat Detection: Detects up to 30 human targets simultaneously; Supports up to 4 shield regions.
• Queue Management: Detects queuing-up people number, and waiting time of each person; Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue; Supports raw data export for further analysis.
• People Counting: Supports entering/exiting counting (track 30 targets simultaneously); Supports facial recognition; Supports 24-hour dynamic deduplication and face library deduplication (up to 3 face libraries with up to 30000 faces); Supports reporting alarms when detecting the face is the same as that in the face library.
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
• Metadata: Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture and queue management are supported.

General

• Power: With extra load: 12 VDC ± 20%, 1.16 A, max. 13.9 W; PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.33 A to 0.25 A, class 4; Without extra load: 12 VDC ± 20%, max. 12.5 W; PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.3 A to 0.22 A, class 4; With –Y: three-core terminal block; Without –Y: two-core terminal block – with extra load” means that an extra device is connected to and powered by the camera.”
• Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Heater: Yes
• General Function: Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Dimension: With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
• Package Dimension: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
• Weight: 1920 g (4.2 lb.)
• With Package Weight: 3060 g (6.7 lb.)

Approval

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); LOA (IEC/EN 60950-1); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013); IK10 (IEC 62262: 2002)
• Automotive And Railway: With -R: EN50121-4
• Anti-Corrosion Protection: With -Y: NEMA 4X (NEMA 250-2018)
• Other: With -Y: PVC FREE
