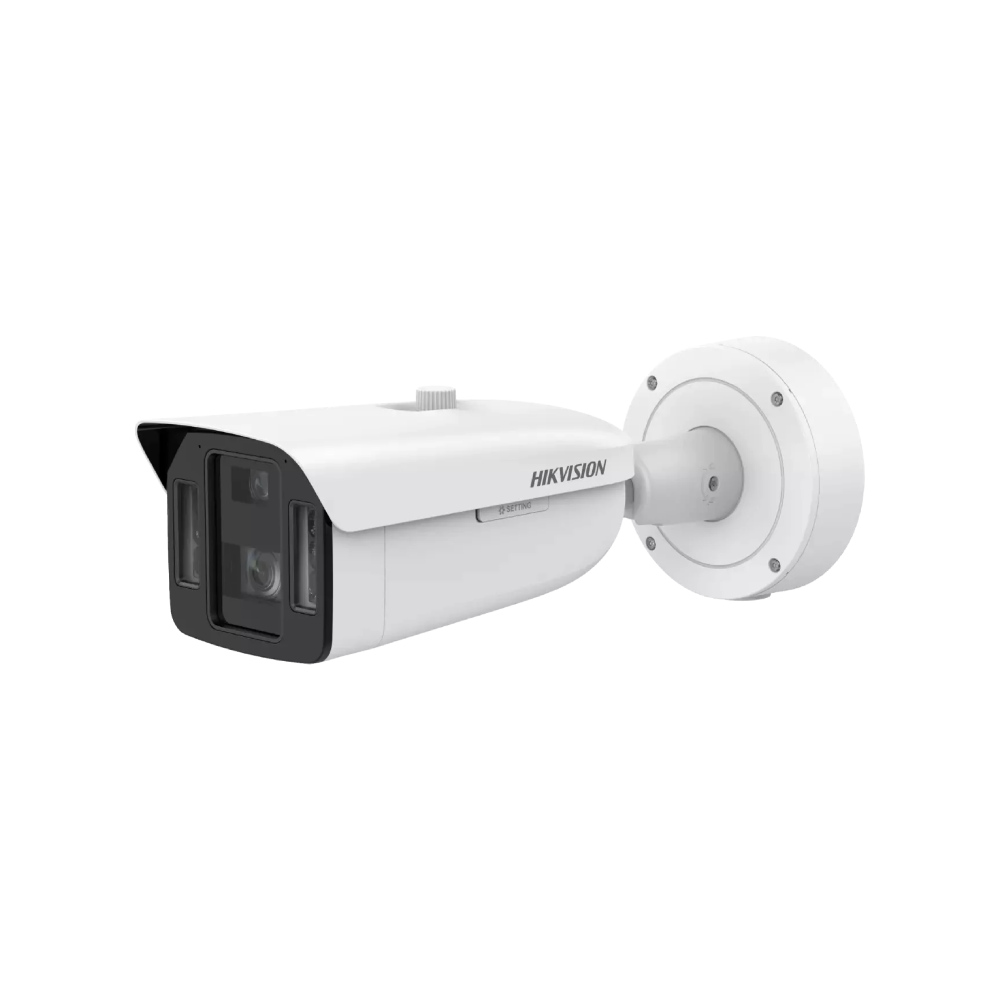

Hikvision iDS-2CD8A86G0-XZHSY DeepinView series Dual-Sensor Dual-Channel (1x 4K 8MP 10-50mm Motorized Zoom Channel + 1x 4MP 4mm Fixed Panoramic Channel) Dual-Light (30m Warm-White-Light + 120m IR) TandemVu PoE IP Weatherproof ANPR LPR Bullet Camera - Alarm In & out - Audio In & Out - Anti-corossion Material - Built-in Heater

CCTV / Surveillance, IP ANPR LPR Cameras, IP Cameras, IP Surveillance

Hikvision iDS-2CD8A86G0-XZHSY

Name: Hikvision iDS-2CD8A86G0-XZHSY
SKU: iDS-2CD8A86G0-XZHSY

Hikvision iDS-2CD8A86G0-XZHSY DeepinView series TandemVu Dual-Channel (1 * 4K 8MP 10-50mm Motorized Zoom Channel + 1 * 4MP 4mm Fixed Panoramic Channel) Dual-Light (30m Warm-White-Light + 120m IR) PoE IP Weatherproof ANPR LPR Bullet Camera – Alarm In & out – Audio In & Out – Anti-corrosion Material – Built-in Heater

Features :-

This camera has dual channels in Tandem
- - Channel 1 -> 1/1.8″ progressive scan CMOS – 3840 x 2160 4K 8MP resolution – 10mm to 50mm motorized zoom P-Iris lens – 120m IR range – LPR ANPR functionality
  - Channel 2 -> 1/1.8″ progressive scan CMOS – 2560 × 1440 4MP resolution – 4mm fixed lens – 30m white-light range – overview functionality
Excellent low-light performance via DarkFighter and ColorVu technology
Clear imaging against strong back light due to 140dB True-WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)
Note:- This cameras takes up 2 * channels on the NVR/ recording platform
Note:- Good for picking up car-plates at between 10m to 60m distance from mounting* (On ANPR channel)

Hikvision Product-Link

Camera

Image Sensor: Channel 1: 1/1.2″ Progressive Scan CMOS; Channel 2: 1/1.8 Progressive Scan CMOS”
Max. Resolution: Channel 1: 3840 × 2160; channel 2: 2560 × 1440
Min. Illumination: Channel 1: Color: 0.0003 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR; Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Shutter Time: 1 s to 1/100000 s
Day & Night: IR cut filter, Blue glass module (less ghost phenomenon)
Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Focal Length & FOV: Channel 1: 10 to 50 mm : horizontal FOV 36° to 13.1°, vertical FOV: 20.4° to 7.4°, diagonal FOV 41.8° to 14.9°; Channel 2: 4 mm: horizontal FOV: 89°, vertical FOV: 45°, diagonal FOV: 107°
Focus: Channel 1: Auto, semi-auto, manual
Iris Type: Channel 1: P-iris, Channel 2: Fixed
Aperture: Channel 1: Constant F1.6 throughout the zoom range, Channel 2: F1.0

Illuminator

Supplement Light Type: Hybrid (IR and White Light)
Supplement Light Range: Channel 1: up to 120m; Channel 2: up to 30m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream: Channel 1: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720), 60 Hz: 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); Channel 2: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream: Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480), 60 Hz: 30 fps (704 × 480, 640 × 480); Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480), 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream: Channel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480); Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream: Channel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480); Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480), 60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream: Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480), 60 Hz: 30 fps (704 × 480, 640 × 480); Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480), 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264; Fourth stream: H.265 / H.264 / MJPEG; Fifth stream: H.265 / H.264 / MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region Of Interest (ROI): 4 fixed region(s) for each stream
Target Cropping: Yes

Audio

Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View: Up to 20 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 10, IE11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+


Image Parameters Switch: Yes
Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance, adjustable by client software or web browser
Day/Night Switch: Channel 1: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger; Channel 2: Day, Night, Auto, Schedule, Alarm Trigger
Wide Dynamic Range (WDR): 140 dB
Image Enhancement: Channel 1: BLC, HLC, 3D DNR, Defog, EIS; Channel 2: BLC, HLC, 3D DNR, Defog
Privacy Mask: 8 programmable polygon privacy masks
Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface

Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarm: 2 input(s), 2 output(s) (max. 24 VDC, 1 A)
Audio: 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key: Yes
Power Output: 12 VDC, max. 50 mA

Event

Basic Event: Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,video quality diagnosis, vibration detection
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection,audio exception detection,defocus detection
Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing

Deep Learning Function

Multi-Target-Type Detection: Channel 1 – Detects up to 60 targets simultaneously, Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features
Face Capture: Channel 1 – Detects up to 120 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures
Face Comparison: Channel 1 – Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption
Perimeter Protection: Channel 1 – Line crossing, intrusion, region entrance, region exiting, Support alarm triggering by specified target types (human and vehicle); Channel 2 – Line crossing, intrusion, region entrance, region exiting, Support alarm triggering by specified target types (human and vehicle)
Road Traffic And Vehicle Detection: Channel 1 – Blocklist and allowlist: up to 10,000 records, Support license plate recognition of motorcycles (only in checkpoint scenario), Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.), License plate recognition rate ≥98%

General

Power: Three-core terminal block; 12 VDC ± 20%, 1.90 A, max. 22.7 W; 24 VAC ± 20%, 1.39 A, max. 22.3 W; PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.59 A to 0.44 A, max. 24.7 W
Material: Aluminum alloy body
Dimension: Ø140 mm × 410.1 mm (Ø5.5 × 16.1″)”
Package Dimension: 462 mm × 197 mm × 195 mm (18.2″ × 7.76″ × 7.68″)
Weight: Approx. 2.2 kg (4.85 lb.)
With Package Weight: Approx. 3.38 kg (7.45 lb.)
Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions: With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Heartbeat, one-key reset, mirror, password protection, privacy mask, watermark, IP address filter, flash log, conreol time out, anti-banding
Heater: Yes
Demist: Yes

Approval

EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11 ;CE-LVD: EN 62368-1: 2014/A11: 2017; LOA: IEC/EN 60950-1
Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection: -Y model: NEMA 4X (NEMA 250-2018)
Automotive And Railway: EN50121-4
Other: PVC FREE
