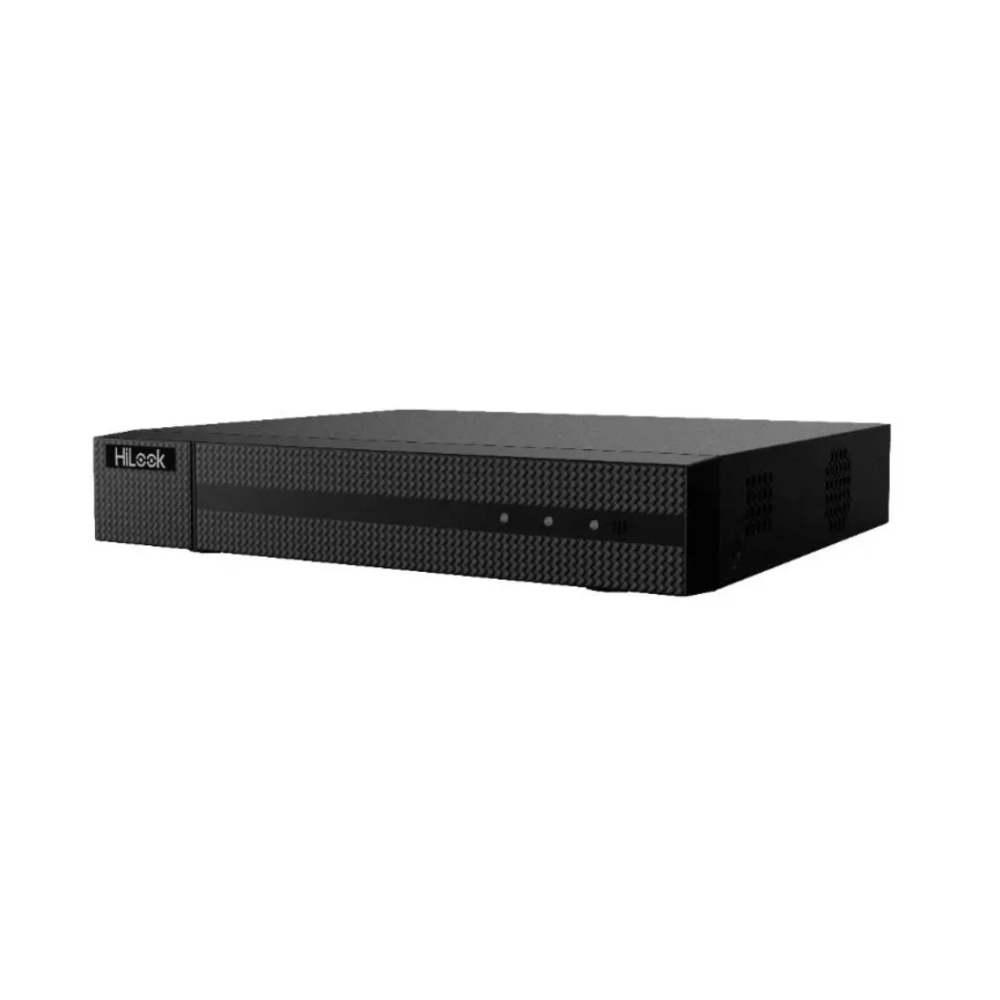

HiLook DVR-208U-M1/T

Motion Detection 2.0

• Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.

Video and Audio

• IP Video Input: 4-ch (up to 12-ch) – Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps; Up to 8MP resolution; Support H.265+ / H.265 / H.264+ / H.264 IP cameras
• Analog Video Input: 8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input: 8MP (3840 × 2160) @ 12/15 fps, 3K (2960 x 1665) @ 25/20 fps, 3K (3328×1504) @ 20 fps, 2K (2304×1296) @ 20 fps, 5 MP (2560 × 1944) @ 20 fps, 4MP (2560 × 1440) @ 25/30 fps, 1080P @ 25/30 fps, 720P @ 25/30 fps
• AHD Input: 5MP (2560 × 1944) @ 20 fps, 4MP (2560 × 1440) @ 25/30 fps, 1080P @ 25/30 fps, 720P @ 25/30fps
• HDCVI Input: 8MP (3840 × 2160) @ 12/15 fps, 3K (2880×1620) @ 20/25 fps, 5MP (2592 × 1944) @ 20 fps, 4MP (2560 × 1440) @ 25/30 fps, 1080P @ 25/30 fps, 720P @ 25/30 fps
• CVBS Input: PAL/NTSC
• HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI / VGA simultaneous output
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) – 4-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
• Synchronous playback: 8-ch

Recording

• Video Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
• Encoding Resolution: 8MP / 5MP / 3K / 4MP / 3MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
• Frame Rate:
  • • Main stream: 8MP @ 8 fps / 3K @ 12 fps / 5MP @ 12 fps / 4MP @ 15 fps / 8MP Lite @ 15 fps / 3MP @ 18 fps / 1080p / 720p / WD1 / 4CIF / VGA / CIF @25 fps (P) / 30 fps (N)

    • Sub-stream: WD1 / 4CIF /CIF @ 25 fps (P) / 30 fps (N)

• Video Bitrate: 32 Kbps to 10 Mbps
• Dual-stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Network

• Total Bandwidth: 128 Mbps
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
• Remote Connection: 64
• Network Interface: 1* RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 10 TB capacity for each disk
• USB Interface: Rear panel: 2 × USB 2.0

General

• Power Supply: 12 VDC, 2 A
• Consumption: ≤ 15 W (without HDD)
• Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch)
• ≤ 1.6 kg (without HDD, 3.5 lb.)
