Access Control, Standalone
HiLook HA-AC-S1

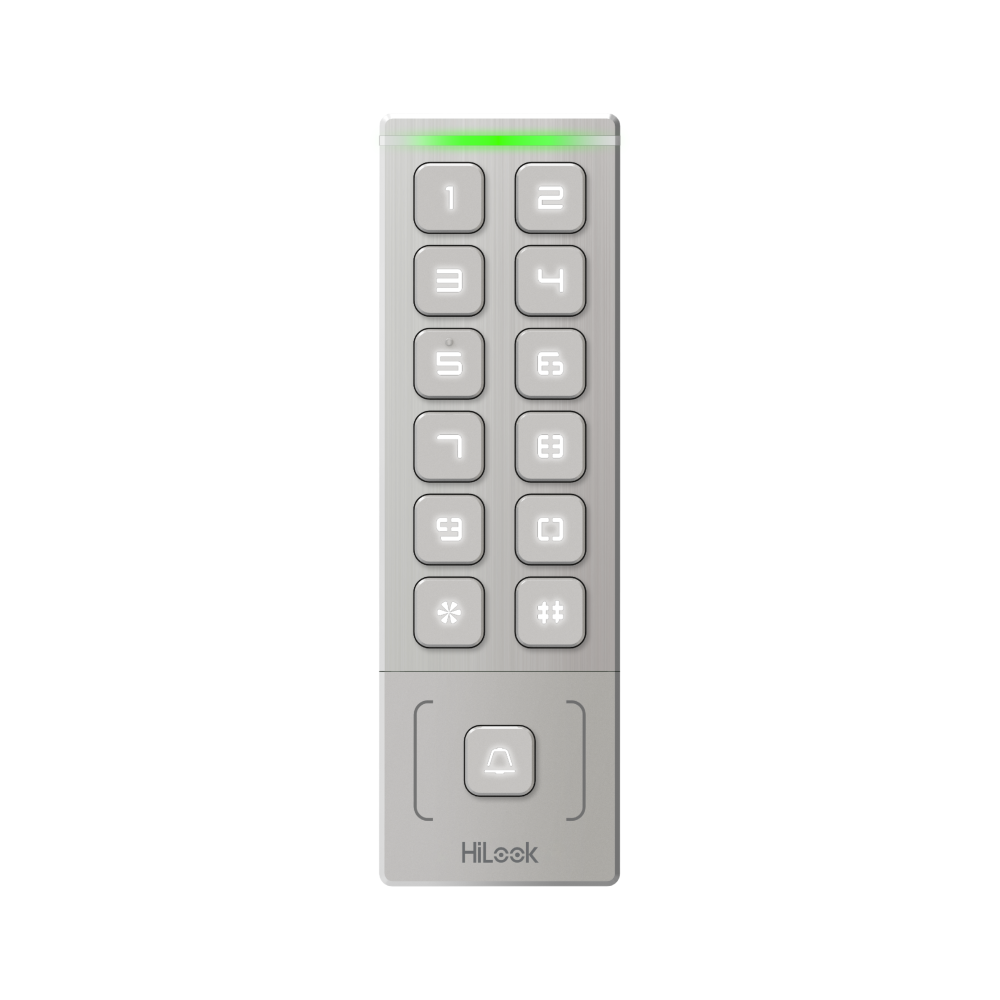

HiLook HA-AC-S1 Standalone Weatherproof Access Control Keypad Terminal – Built-in Keypad + MiFare Card-Reader – Metal Casing – Slim Design
SKU: HA-AC-S1
Categories: Access Control, Standalone
Tags: Access Control, HiLook, Keypad, Mifare, RFID Reader, Standalone, Wiegand
Estimated Arrival Date: 12/09/2025
HiLook HA-AC-S1 Standalone Weatherproof Access Control Keypad Terminal – Built-in Keypad + MiFare Card-Reader – Metal Casing – Slim Design
Key Features :-
- Slim and flexible design with metal.
- Max. 1000 cards and 1000 users.
- Built-in card reader for M1 card reading.
- Outdoor application, supports IP65.
- Supports multiple authentication types: card, PIN
Interface
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm output: 1
- Wiegand: Wiegand out, supports Wiegand 26/34
Capacity
- User capacity: 1000
- Card capacity: 1000
Authentication
- Card type: M1 card
- Card reading distance: 3 cm
- Card reading duration: 1 s
General
- Button: Physical buttons
- Indicator: Support
- Power supply: 12 VDC, 1 A
- Working temperature: -40 °C to 65 °C (-40 °F to 149 °F)
- Working humidity: 0 % to 90 % (no condensing)
- Dimensions: 151 mm × 48 mm × 21.5 mm (5.9″ × 1.9″ × 0.8″)
- Net weight: 220.3 g (0.5 lb)
-
Rough weight: 352 g (0.8 lb)
