HiLook HA-ALARM-KP

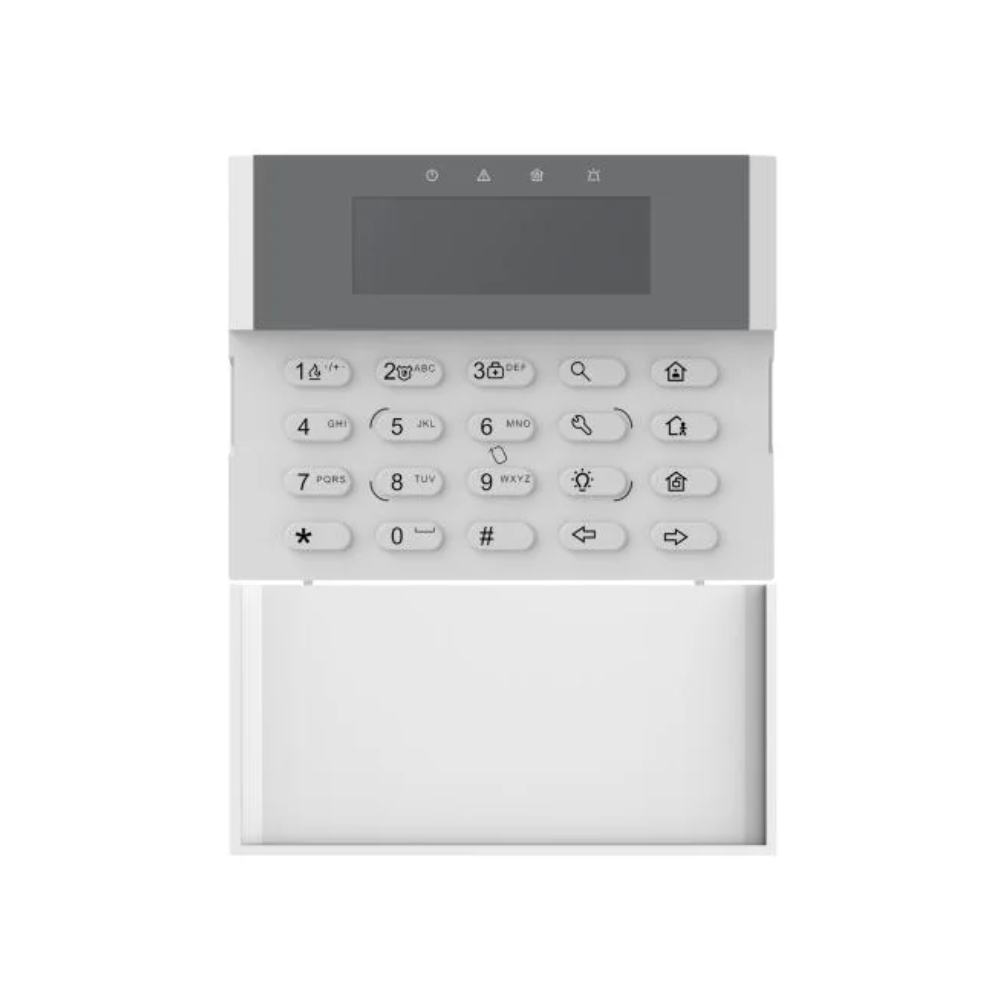

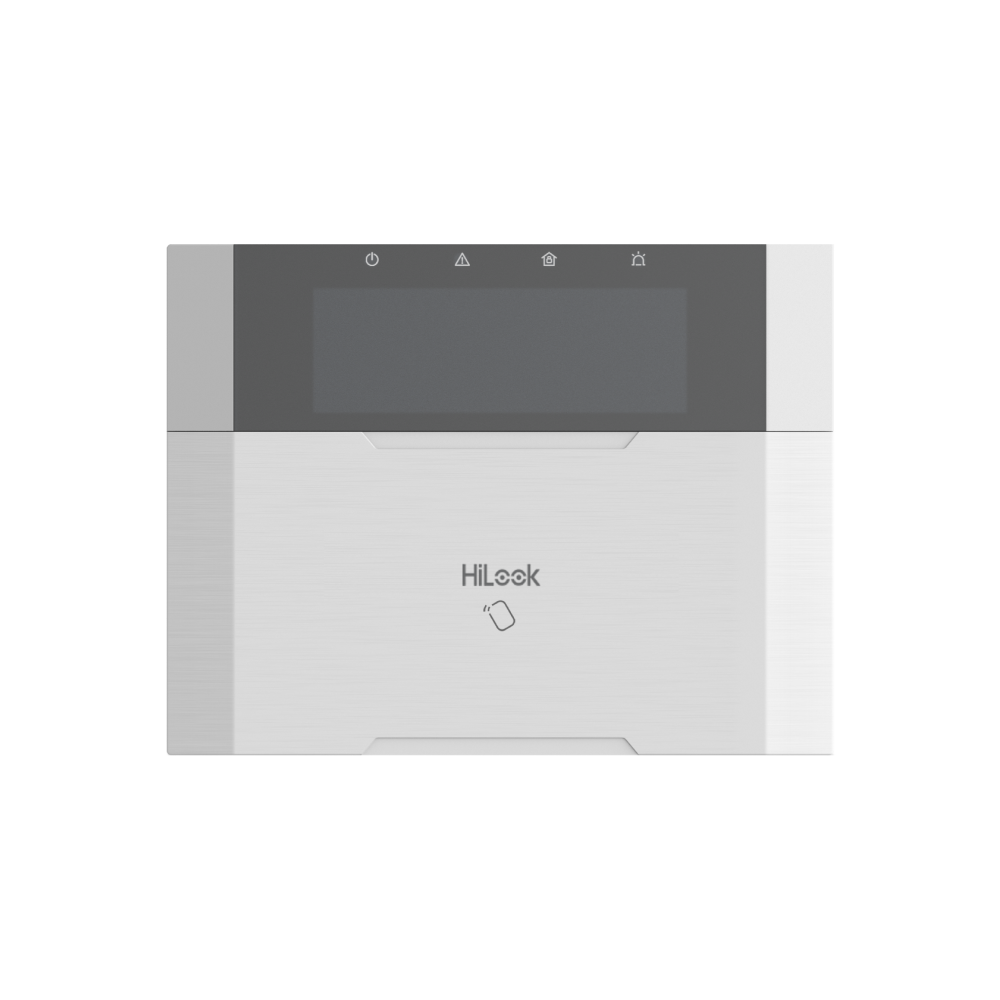

HiLook HA-ALARM-KP Wired Intrusion / Alarm Keypad – Push-Buttons – Supports One-Push Arm – LCD Display – Built-in Mifare Reader
SKU: HA-ALARM-KP
Categories: Intrusion & Alarms, Wired Alarm Keypads & Touchscreens, Wired Alarms
Tags: 433MHz Wireless, Alarm, AX Hybrid Pro, Hikvision, HiLook, Home Automation, Intrusion, Keypad, Mifare, Network, Wired
HiLook HA-ALARM-KP Wired Intrusion / Alarm Keypad – Push-Buttons – Supports One-Push Arm – LCD Display – Built-in Mifare Reader
Key Features :-
- LCD screen display
- Supports one-touch arm（Arming without password）
- Supports Fire/Panic/Medical alarm key
- Supports company name, phone number, time display
- Supports 2 on-board alarm inputs and 1 on-board alarm output
- Supports maximum 64 keyfobs
HiLook One App (Hik-Connect) Solution
Hardware features
- Tag reader: 1 Built-in Tag Reader
- Serial port: 1 TTL Serial Port
- Tamper-Proof: 1 Back-cover Tamper-switch（Will be damaged when tamper triggered）
- Buzzer: 1 On-board Buzzer
- Function key: 8 Function keys：Query，Away Aram，Stay Arm，Disarm，Alarm Output，Project，Left，Right
- RS-485: 1 Speed-X bus
- Alarm input: 2 On-board Alarm inputs
- Alarm output: 1 On-board Alarm output
Display
- Numeric key: 0 to 9，*，#
- Display screen: LCD Screen
- Indicator: 4 indicators and 1 backlight：
-
- 1. Power：Green
- 2. Faults：Fault-Orange / Alert-Flashing orange / Find me mode-flashing green
- 3. Armed：Blue
- 4. Alarm：Red
-
5. Keypad button backlight：White
-
Electrical characteristics
- Power supply: 10.2 to 14.4 VDC
- Typical voltage: 12 VDC
- Power consumption: Maximum current: 150mA@12VDC; Quiescent current: 72mA@12VDC
Wireless transmission
- RF frequency: 433MHz
General
- Dimension (WxHxD): 150mmx115mmx28mm
- Color: White
- Operation temperature: – 10 °C to + 55 °C (14 °F to 131 °F)
- Operation humidity: 10%～90%
Device management
- Keyfob: 64
