HiLook HA-KIT-A2
HiLook HA-KIT-A2 4-Wire HD Analogue Video Intercom Kit – Includes an Outdoor Doorbell and an Indoor 7″ (7-Inch) Touchscreen Monitor – One-Lock Control
Item On Clearance – Special Pricing Valid for Items In ITPLUS Stock Only
SKU: HA-KIT-A2
Categories: Clearance, HiLook Video Intercoms, Special Offers, Video Intercoms, Weekly Specials
Tags: 4-Wire, Analogue, HiLook, Kit, Video Intercom

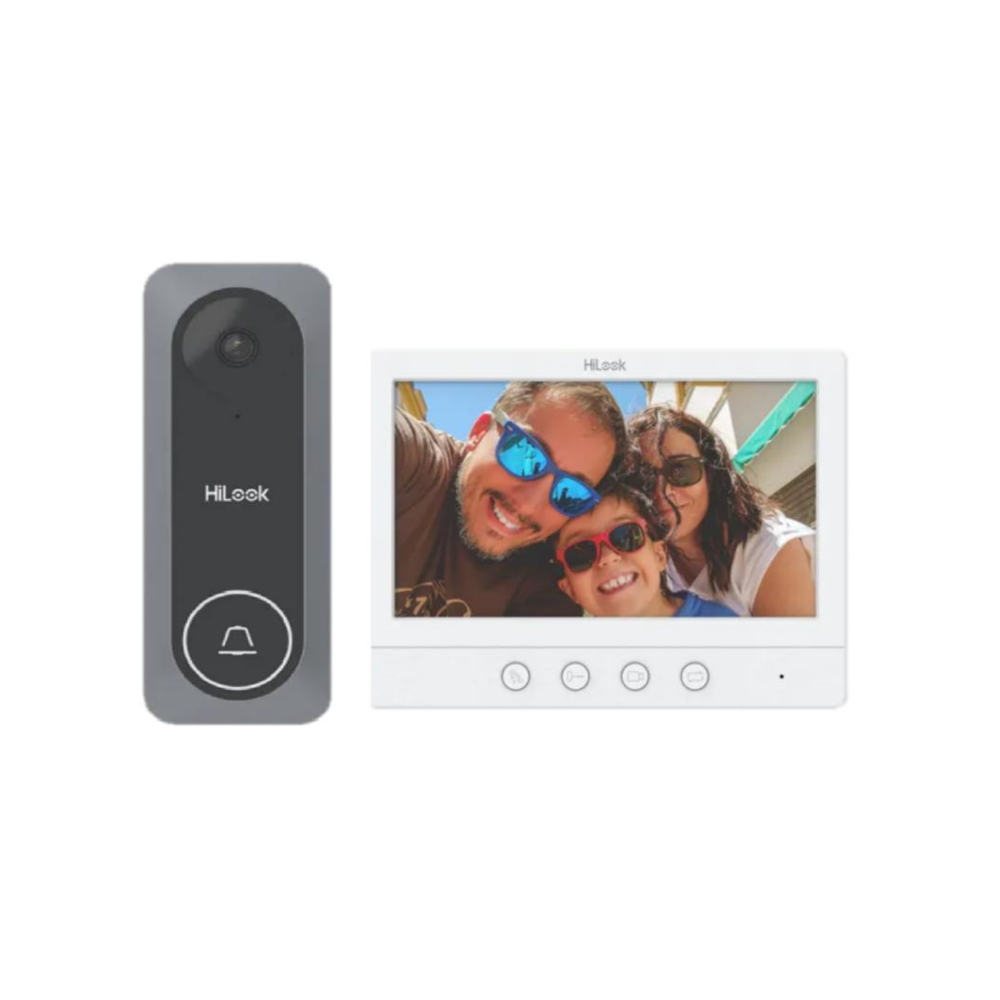

HiLook HA-KIT-A2 4-Wire HD Analogue Video Intercom Kit – Includes an Outdoor Doorbell and an Indoor 7″ (7-Inch) Touchscreen Monitor – One-Lock Control
Key Features :-
- HD TVI video quality
- Plug & play
- One-press to call
- One-press to unlock the door
- Supports max. 2 outdoor stations and 3 indoor monitors in one system
- Note* :- This intercom kit is not controlled by Hik-Connect app. It works standalone.
Doorbell – Video parameters
- Supplement light: IR light, up to 3 m
- Resolution: Stream resolution: 1280 * 720 @ 60fps
- FOV: Horizontal: 130°, Vertical: 70°
Doorbell – Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
Doorbell – Device interfaces
- Lock control: 1 relay, max 30V 1 A
- Debugging port: 1
- Four-wire: 1 four-wire interface
Doorbell – General
- Button: 1 physical button(s)
- Indicator: /
- Power supply: 12 VDC
- Power consumption: Max. 4W
- Working temperature: -30° C to + 60° C
- Working humidity: 10% to 90%
- Dimensions: 136mm x 51mm x 20mm
- Application environment: Indoor
- Installation: Surface mounting
- Protective level: /
- Material: Plastic

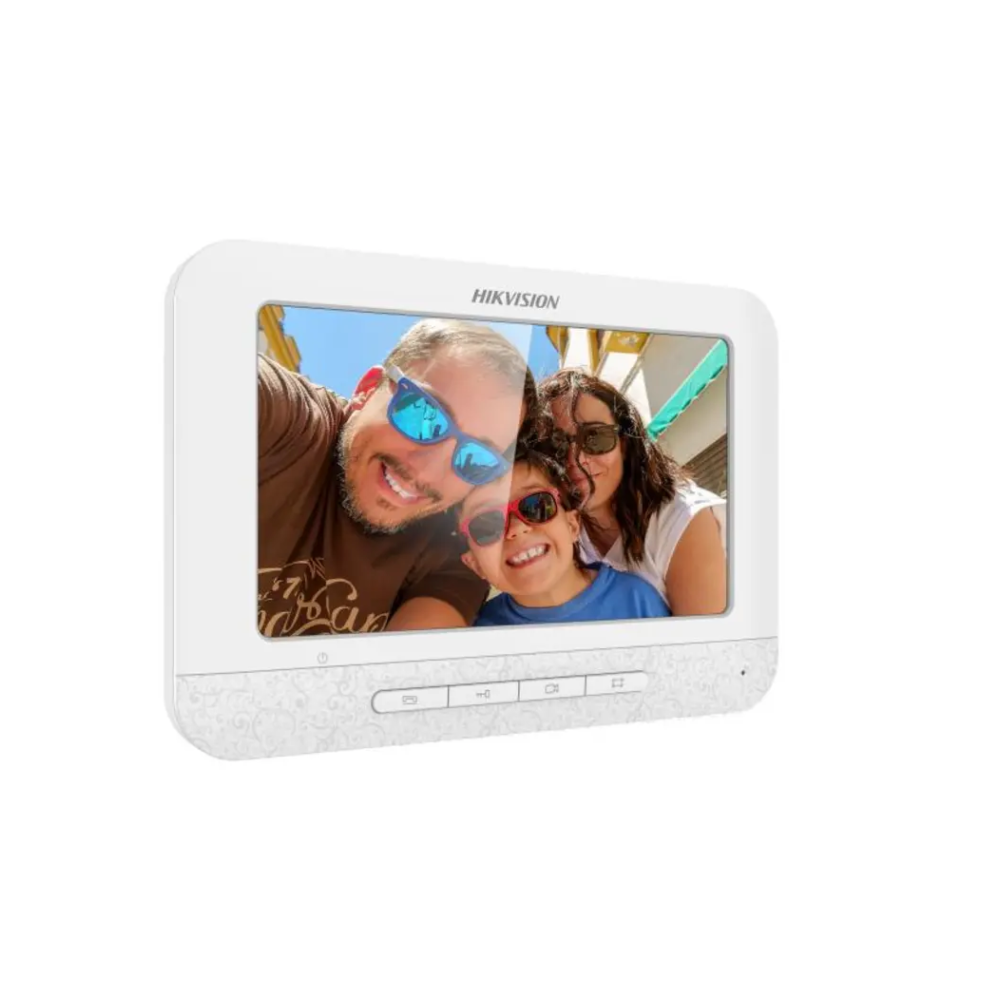

Indoor Monitor – Display parameters
- Operation method: Physical button
- Type: 7-inch colorful TFT
- Resolution: 1024 x 600
Indoor Monitor – Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
Indoor Monitor – Capacity parameters
- Linked indoor extensions capacity: 2
- Linked doorphone capacity: 2
- Linked analog camera: 1
Indoor Monitor – Device interfaces
- Power supply input: 12V DC
- Debugging port: 1
- Four-Wire interface: 4, 2 for indoor extentions, 2 for doorphones
- DIP switch: 1 Bit
- BNC: 1
Indoor Monitor – General
- Button: 4 physical button
- Power supply: 12 VDC
- Power consumption: ≤5 W
- Working temperature: -10° C to + 55° C (14° F to 131° F)
- Working humidity: 10% to 90%
- Dimensions (W × H × D): 178mm x 132mm x 19mm
- Installation: Surface mounting
- Application environment: Indoor
- Protective level: /
