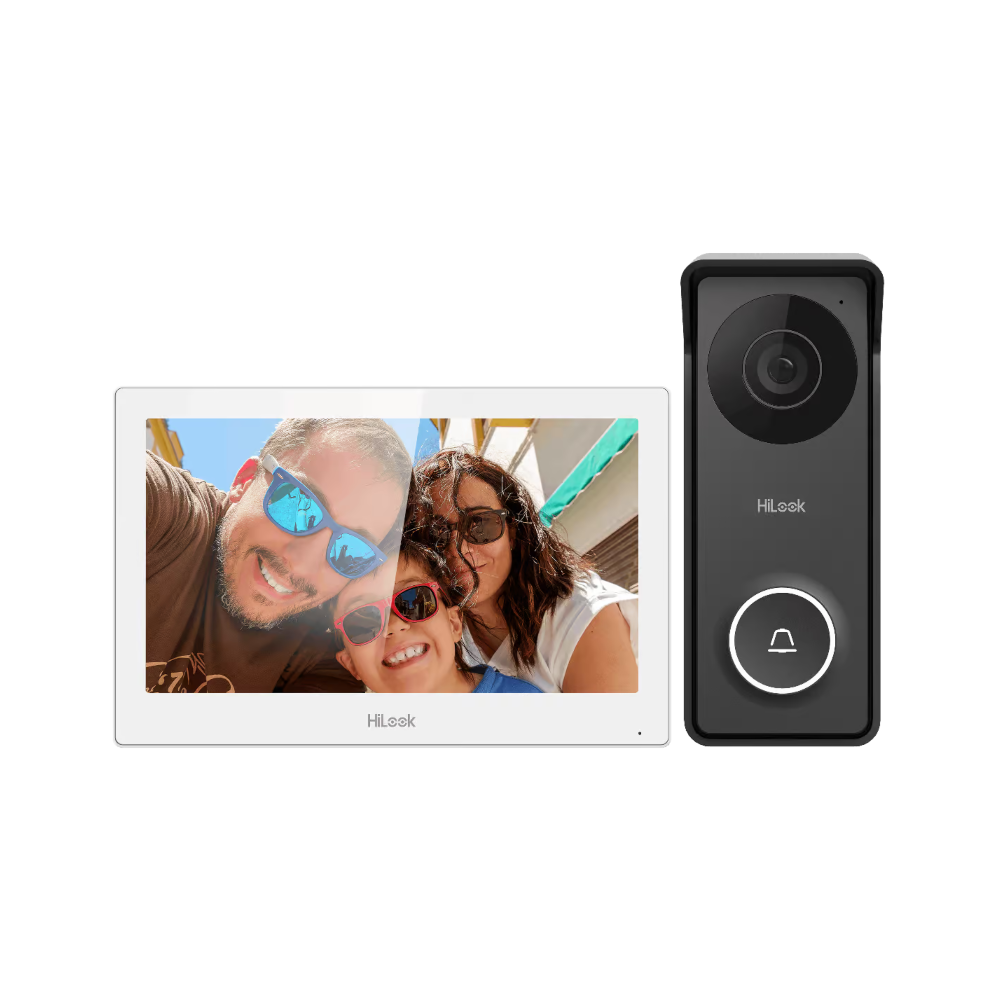

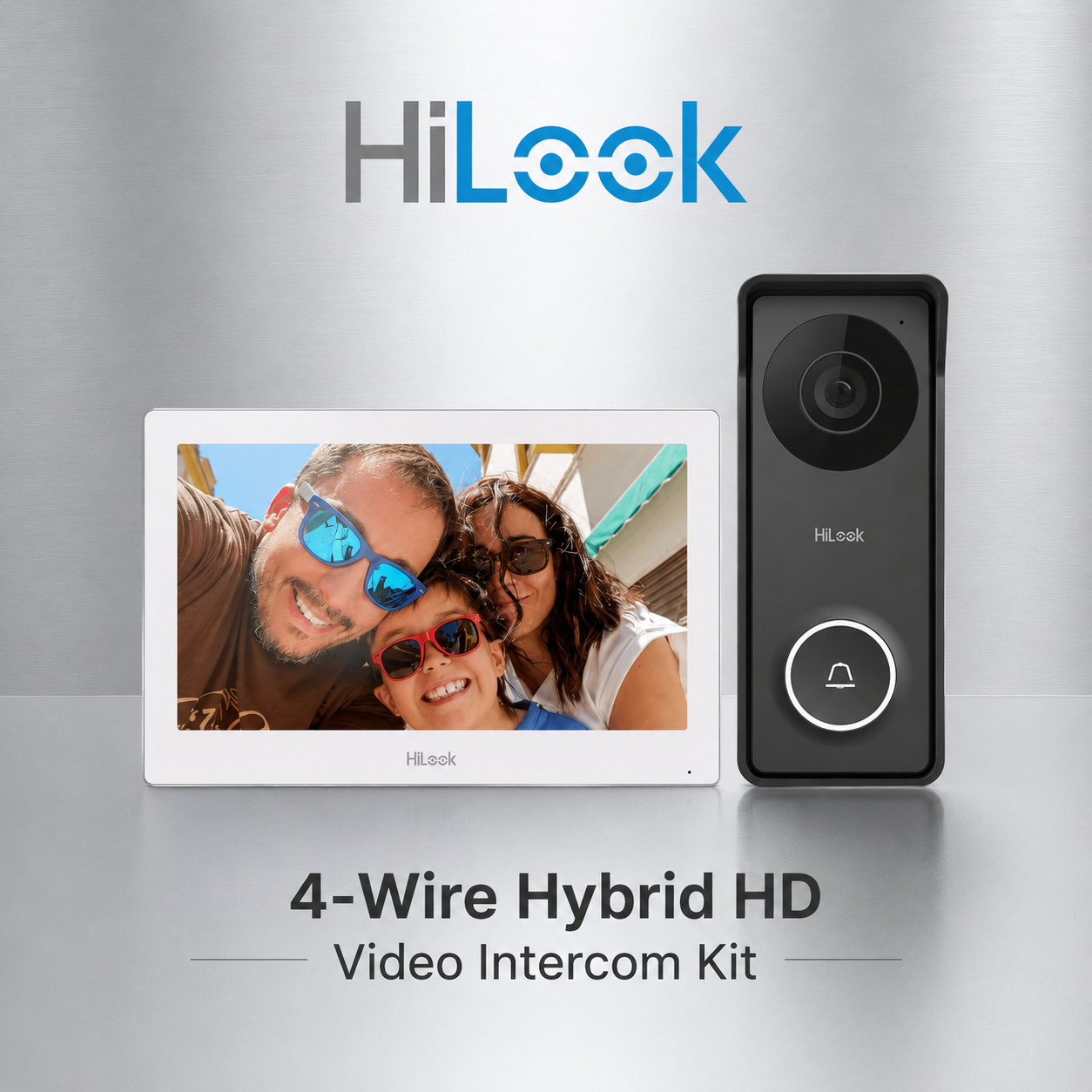

HiLook HA-KIT-H1

Door station/Video parameters

• Supplement light: IR light, up to 3 m
• Resolution: Stream resolution: 1280 * 720 @ 60fps
• FOV: Horizontal: 117°, Vertical: 70°, Diagonal: 141°

Door station/Audio parameters

• Audio input: 1 built-in omnidirectional microphone
• Audio output: 1 built-in loudspeaker

Door station/Capacity prameters

• Linked indoor station capacity: 3
• Sub door station capacity: 1
• Card capacity: /

Door station/Device interfaces

• Lock control: 1 relay, max 30 V 1 A
• Power supply input: 12 VDC
• Debugging port: 1

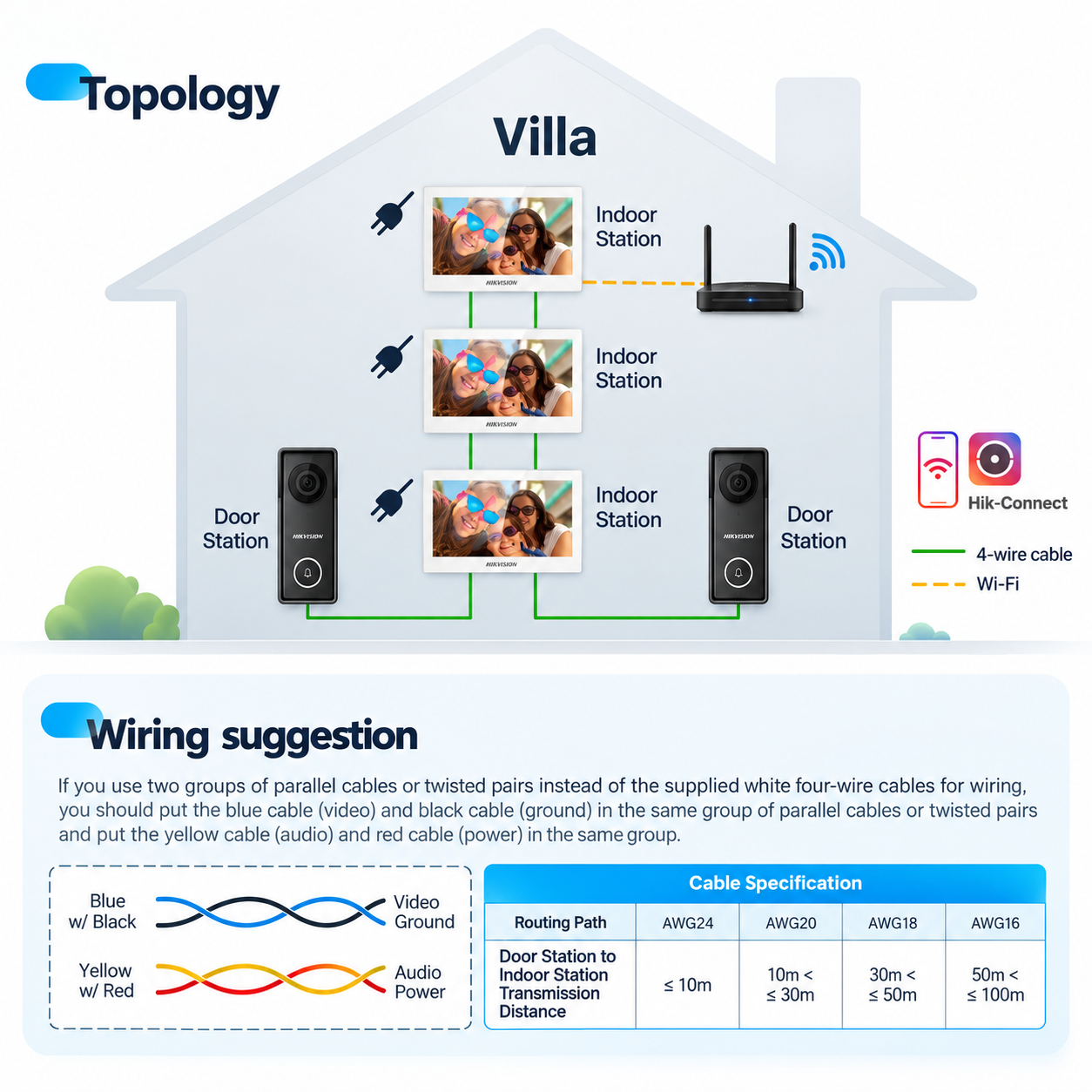

• Four-Wire interface: 1

Door station/General

• Button: 1 physical button(s)
• Indicator: /
• Power supply: 12VDC
• Power consumption: ≤ 4 W
• Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working humidity: 10% to 90% (no-condensing)
• Application environment: Outdoor
• Dimension (W × H × D): 55 mm × 145 mm × 24 mm (2.17″ × 5.71″ × 0.94″)
• Installation: Surface mounting
• Protective level: IP65, IK08
• Material: Aluminum alloy and Plastic
• Without package: 200 g (0.44 lb)

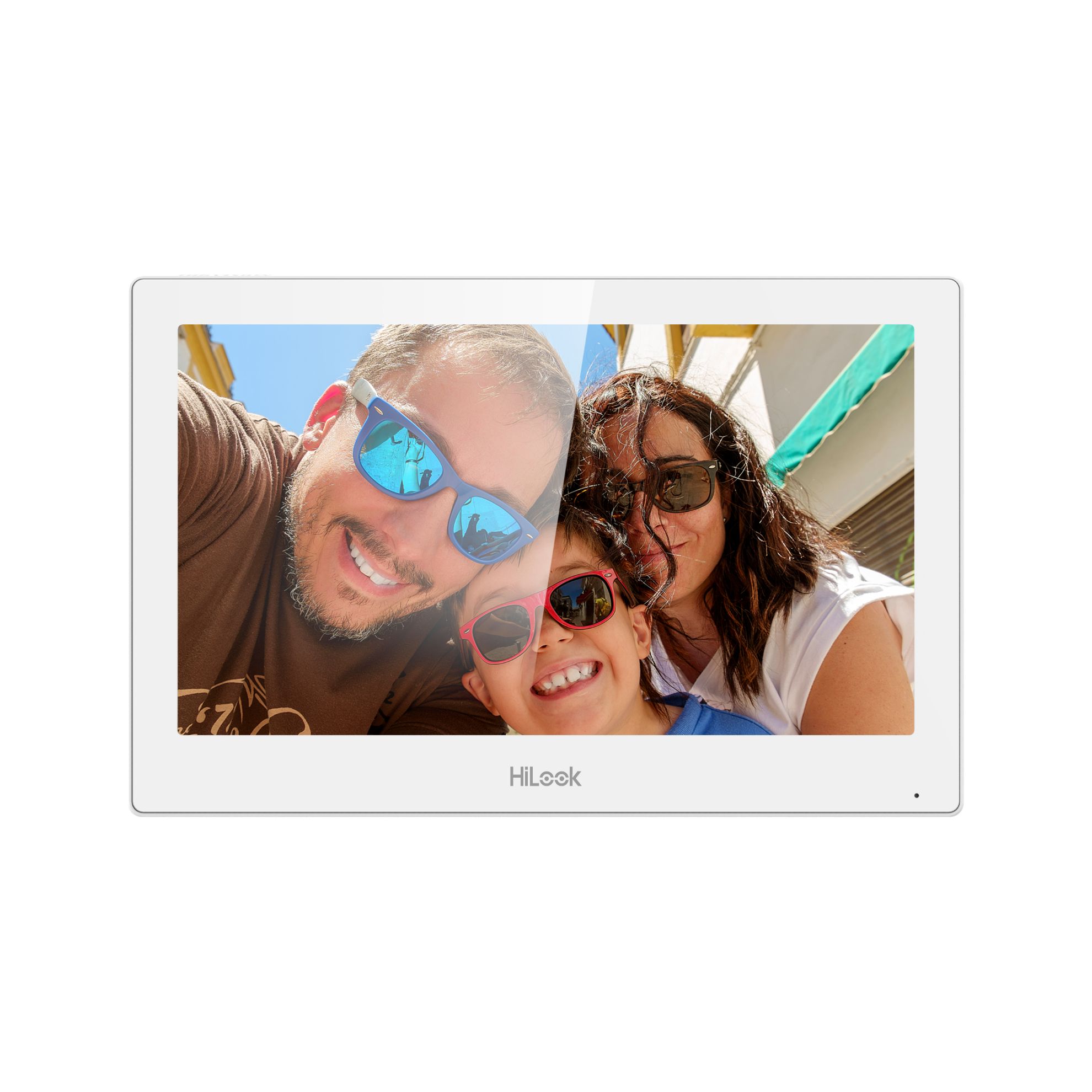

Indoor monitor/System parameters

• Operation system: Embedded Linux operation system
• RAM: 128 MB
• ROM: 32 MB
• Processor: Embedded high performance processor

Indoor monitor/Display parameters

• Type: Colorful TFT
• Resolution: 1024 × 600
• Viewing Angle: Horizontal 160°, vertical 130°
• Contrast: 700 (Typ)
• Luminance: 250 cd/m² （Typ）
• Operating method: Capacitive touch screen
• Screen size: 7-inch

Indoor monitor/Audio parameters

• Audio input: 1 built-in omnidirectional microphone
• Audio output: 1 built-in loudspeaker
• Audio compression bitrate: 64 Kps
• Audio compression standard: G.711U, G.711A
• Audio quality: Noise suppression and echo cancellation

Indoor monitor/Capacity parameters

• Linked network camera capacity: /
• Linked indoor extensions capacity: 2
• Linked door-phone capacity: 2
• Linked analog camera: 1

Indoor monitor/Network parameters

• Wi-Fi: Wi-Fi 802.11 b/g/n

Indoor monitor/Device interfaces

• Network interface: /
• RS-485: /
• Alarm input: 2
• Alarm output: /
• Power supply input: 12VDC
• TF card: Support TF card, up to 128 G
• Debugging port: 2
• Four-Wire interface: 4
• Relay: /

Indoor monitor/General

• Button: 0 physical button
• Power supply: 12 VDC
• Power consumption: ≤ 5 W
• Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Working humidity: 10% to 90% (no-condensing)
• Dimension (W × H × D): 175 mm × 113.5 mm × 18.1 mm (6.89″ × 4.47″ × 0.71″)
• Installation: Surface mounting
• Application environment: Indoor
• Without package: 260 g (0.573 lb)
• Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese
