HiLook HA-KIT-IP2

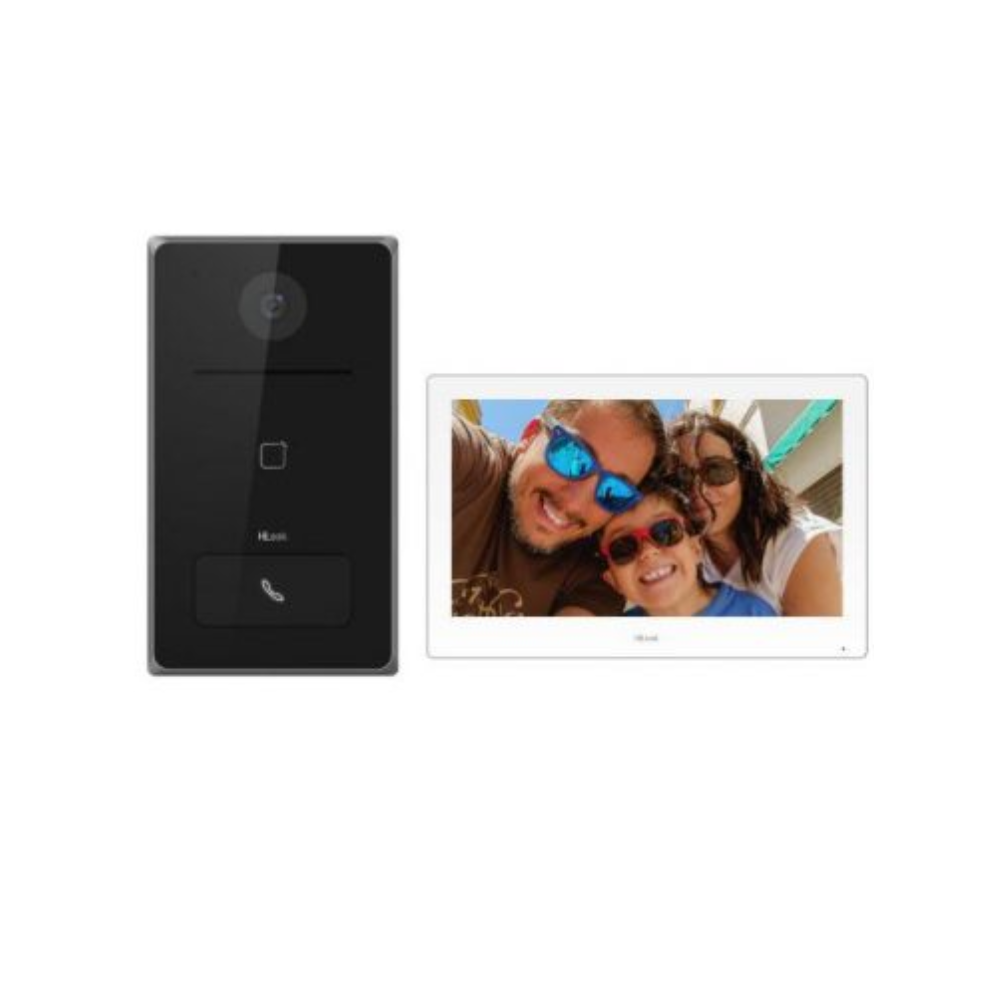

HiLook HA-KIT-IP2 Gen2 Wireless PoE IP Video Intercom Kit – Boxed – Incudes 1 * 2MP Outdoor Intercom Station + 1 * 7″ (7-Inch) Indoor Touchscreen Monitor + 2 * Power Adapters
SKU: HA-KIT-IP2
Categories: HiLook Video Intercoms, Video Intercoms
Tags: 1080P, 2.4GHz Wireless, 2MP, 7 inch, Camera, Display, Gate Automation, Gate Control, Hikvision, HiLook, Intercom, Kit, Monitor, Network, PoE, Touchscreen, Video Intercom, Weatherproof, White, WiFi, Wireless
HiLook HA-KIT-IP2 Gen2 Wireless PoE IP Video Intercom Kit – Boxed – Incudes 1 * 2MP Outdoor Intercom Station + 1 * 7″ (7-Inch) Indoor Touchscreen Monitor + 2 * Power Adapters
Features :-
- Indoor station: 7-inch touch screen, user friendly interface, Plug & Play
- Indoor station: Easy, cost-efficient installation, Wi-Fi & POE Supported
- Indoor station: Receives video call and unlocks on mobile App anywhere, any time
- Indoor station: Supports live view of up to 16 IP cameras
- Door station: Hight quality imaging with 2MP resolution
- Door station: Easy, cost-efficient installation, Wi-Fi & POE Supported
- Door station: Easy configuration through WEB interface
- Door station: IP65 water resistant, preventing water ingress for outdoor use
Door station / System parameters
- Operation system: LINUX
- Flash: 32 MB
- RAM: 256MB
Door station / Video parameters
- Camera: 2MP HD camera
- Night vision: Low illumination IR supplement mode: 2.5m
- Backlight compensation: Support
- Digital noise reduction: Support
- WDR: True WDR
- Field of view: Horizontal: 129° Vertical: 75°
- Video Compression Standard: H.264
- Stream:
- PAL: Main stream: 1080p @ 25fps, 720p @ 25fps; Sub stream: 720p @ 25fps, 480p @ 25fps
- NTSC: Main stream: 1080p @ 30fps, 720p @ 30fps; Sub stream: 720p @ 30fps, 480p @ 30fps
- Motion detection: Support
- Flash-avoid frequency: 50 Hz, 60 Hz
Door station / Audio parameters
- Audio input: 1 built-in omnidirectional microphone
- Audio output: 1 built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G722.1、OPUS、G711U、G711A、G726 、AAC_LC、 AAC_LD
- Audio compression Rate: 16/32/64 Kbps
- Audio intercom: Two-way audio communication
Door station / Network parameters
- Network protocol: TCP/IP, SIP, RSTP
- Wi-Fi: 2.4GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Door station / Device interfaces
- Network interface: 1* RJ-45, 10/100 Mbps self-adaptive
- RS-485: 1
- Alarm input: 4
- Lock control: 1 relay, Max. 30 VDC 2 A
- Door contact input: 1
- TAMPER: 1
- TF card: 1 (Reserved)
- Audio output: 1 external loudspeaker (Reversed)
Door station / General
- Power consumption:＜ 10 W
- Working temperature: -40° C to 53° C(-40° F to 127.4° F)
- Working humidity: 10% to 95%
- Dimension: 181.6 mm × 103.6 mm × 29.5 mm
- Installation: Surface mounting, Flush mounting
- Protection level: IP65
- Indicator: 2
- Power supply: IEEE802.3af, standard PoE; 12 VDC
Indoor Monitor / System parameters
- Operation system: Linux
- Memory: 128 MB
- Flash: 32 MB
Indoor Monitor / Display parameters
- Display screen: 7-inch colorful TFT screen
- Display resolution: 1024 × 600
- Operation method: Capacitive touch screen
Indoor Monitor / Audio parameters
- Audio input: 1 built-in omnidirectional microphone
- Audio output: 1 built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G.711 U
- Audio compression Rate: 64 Kbps
Indoor Monitor / Network parameters
- Wired network: 1* RJ-45, 10/100 Mbps self-adaptive
- Wireless network: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Protocol: TCP/IP, SIP, RTSP
Indoor Monitor / Device interfaces
- RS-485: 1* RS-485 (Half duplex)
- Alarm input: 8-ch alarm inputs
- Relay output: 2
- TF card: Support TF card, up to 128 G
Indoor Monitor / General
- Power consumption: ≤ 5 W
- Power supply: 12 VDC 1 A; IEEE802.3af, Standard PoE
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity: 10% to 90%
- Dimension (L x W x H): 175 mm × 113.5 mm × 21 mm (6.9″ × 4.5″ × 0.83″)
