HiLook 2-Wire IP Intercom Kit
HiLook Video Intercoms, Video Intercoms
HiLook HA-KIT-PY2

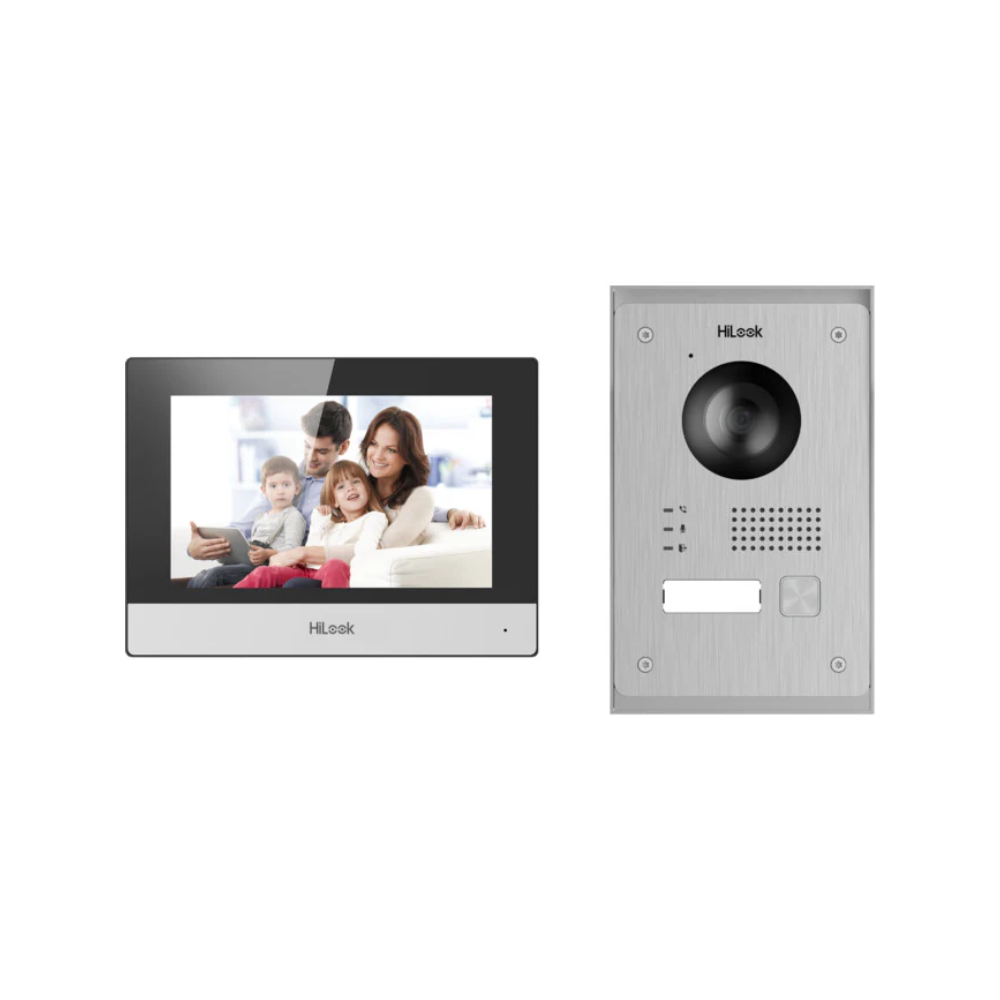

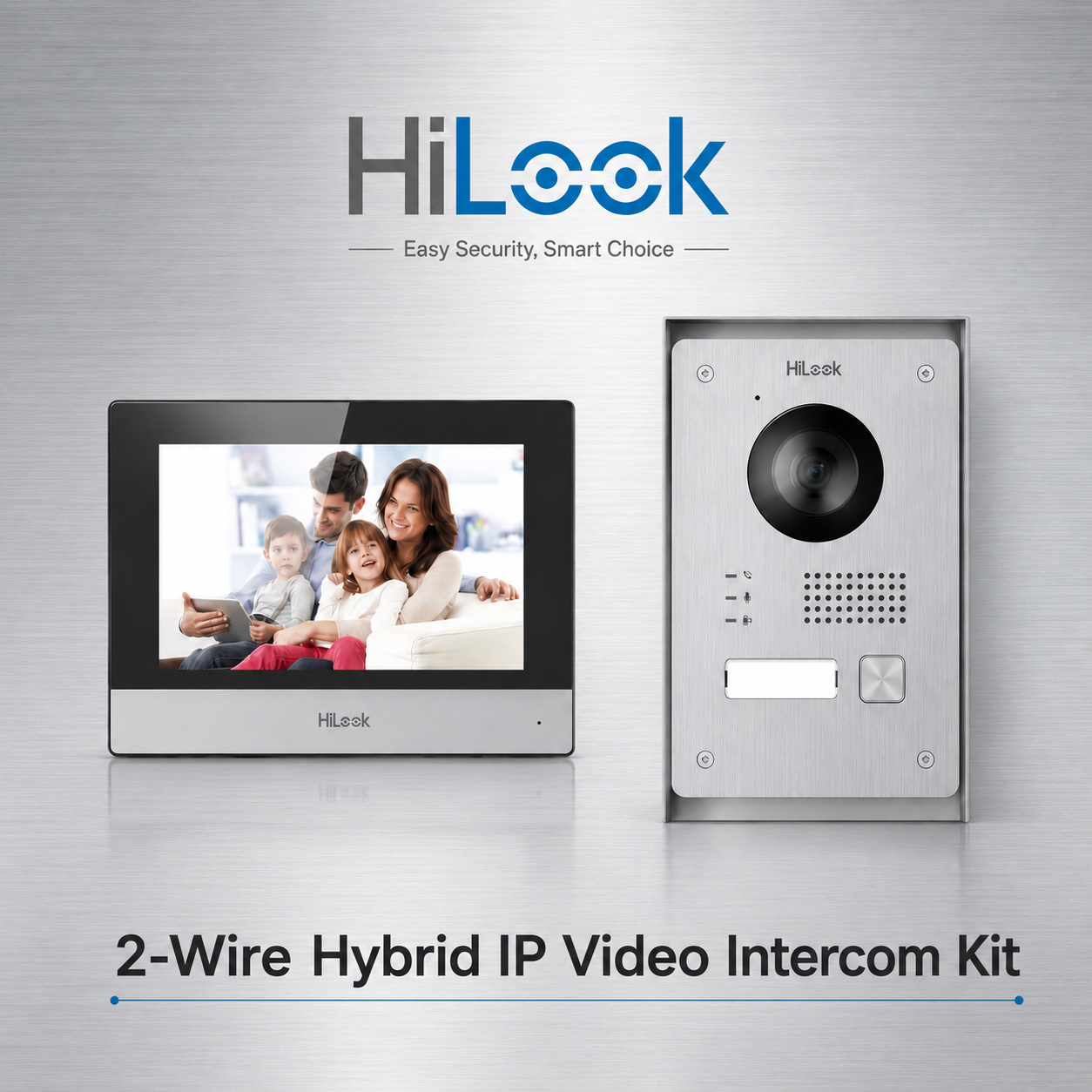

HiLook HA-KIT-PY2 Point-to-Point 2-Wire Hybrid IP Video Intercom Kit – Includes 1 * Outdoor Intercom Station + 1 * Back-Box for Outdoor Station + 1 * Indoor 7″ Touchscreen Monitor with WiFi + 1 * 24VDC PSU – One-Lock Control – Works With Hik-connect App
SKU: HA-KIT-PY2
Categories: HiLook Video Intercoms, Video Intercoms
Tags: 2-Wire, Hik-connect, HiLook, IP, Kit, Network, Video Intercom
HiLook HA-KIT-PY2 Point-to-Point 2-Wire Hybrid IP Video Intercom Kit – Includes 1 * Outdoor Intercom Station + 1 * Back-Box for Outdoor Station + 1 * Indoor 7″ Touchscreen Monitor with WiFi + 1 * 24VDC PSU – One-Lock Control – Works With Hik-connect App
Key Features :-
- Indoor Monitor :-
- 7″ touch screen 2-Wire IP indoor station with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control: receive calls, open the door and live view remotely via WiFi
- Easy wizard for quick set up
- Live-view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Door Station :-
-
- High quality imaging with 2MP resolution
- One call physical button for easier calls
- Two-lock control
- IP65 protection level
- Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
- High-quality stainless steel panel
Outdoor station/System parameters
- Operation system: Embedded Linux operation system
- Operation mode: Single-button
- Flash: 32 MB
- RAM: 256 MB
Outdoor station/Video parameters
- Camera: 2MP HD camera
- Resolution: Main stream: 1280*720P, 1920*1080p; Sub stream: 640*480
- Night vision: Low illumination IR supplement distance: 3 m
- WDR: Support
- Field of view: Horizontal: 140° Vertical: 85°
- Video Compression Standard: H.264
Outdoor station/Audio parameters
- Audio input: Built-in 1*omnidirectional microphone
- Audio output: Built-in 1*loudspeaker, 8Ω
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G.711 U, G.711 A
- Audio compression Rate: 64 Kbps
Outdoor station/Network parameters
- Network protocol: TCP/IP, RSTP, SIP2.0
- Wired network: Support, 2-Wire wiring
Outdoor station/Device interfaces
- RS-485: /
- Alarm input: 2 ( Exit button or door contact)
- Output: 1* 12 V/500 mA output
- Two-wire interface: 1
- TAMPER switch: 1
Outdoor station/General
- Power consumption: ＜ 10 W
- Working temperature: -40° C to +60° C(-40° F to 140° F)
- Working humidity: 10% to 95%
- Installation: Surface mounting, flush mounting
- Protection level: IP65
- Indicator: 3
- Power supply: From indoor station
Indoor monitor/System parameters
- Operation system: Embedded Linux operation system
- Memory: 128 MB
- Flash: 32 MB
Indoor monitor/Display parameters
- Display screen: 7-inch TFT touch screen
- Display resolution: 1024 × 600
- Operation method: Capacitive touch screen
- Brightness: Adjustable
Indoor monitor/Audio parameters
- Audio input: Built-in 1* omnidirectional microphone
- Audio output: Built-in 1* loudspeaker, 8Ω
- Audio quality: Noise suppression and echo cancellation
- Volume: Local adjustable
- Audio compression standard: G.711 U, G.711 A
Indoor monitor/Network parameters
- Wired network: 1 * 10Mbps through 2-wire interface
- Wireless network: Wi-Fi 802.11 b/g/n, 2.400-2.4835 GHz
Indoor monitor/Device interfaces
- RS-485: 1
- Alarm input: 8
- Two-wire (output): 1
- Two-wire (input): 1
- Power input: 24VDC/1.5A
Indoor monitor/General
- Power supply: 24VDC/1.5A
- Power consumption: ≤ 8 W
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity: 10% to 90%
