HiLook IPC-D261H-MU

HiLook IPC-D261H-MU AcuSense / IntelliSense H265 6MP PoE IP IR (30m) 120dB True-WDR Weatherproof Vandalproof Dome Camera with 2.8mm Fixed Lens, with Built-in Audio Mic

  • Hikvision DS-1280ZJ-DM46

    Hikvision DS-1280ZJ-DM46 Surface-mount Junction-Box / Back-Box For Cameras - WHITE Colour

  • Hikvision DS-1272ZJ-120

    Hikvision DS-1272ZJ-120 Φ120 Wall Mounting Bracket for 25xx Series and 21xx Series AcuSense Mini Dome Cameras

  • Hikvision DS-1275ZJ-SUS

    Hikvision DS-1275ZJ-SUS Stainless Steel Weatherproof Universal Pole-mount Bracket

  • Hikvision DS-1276ZJ-SUS

    Hikvision DS-1276ZJ-SUS Stainless Steel Weatherproof Corner-Mount Bracket

This product is currently unavailable.

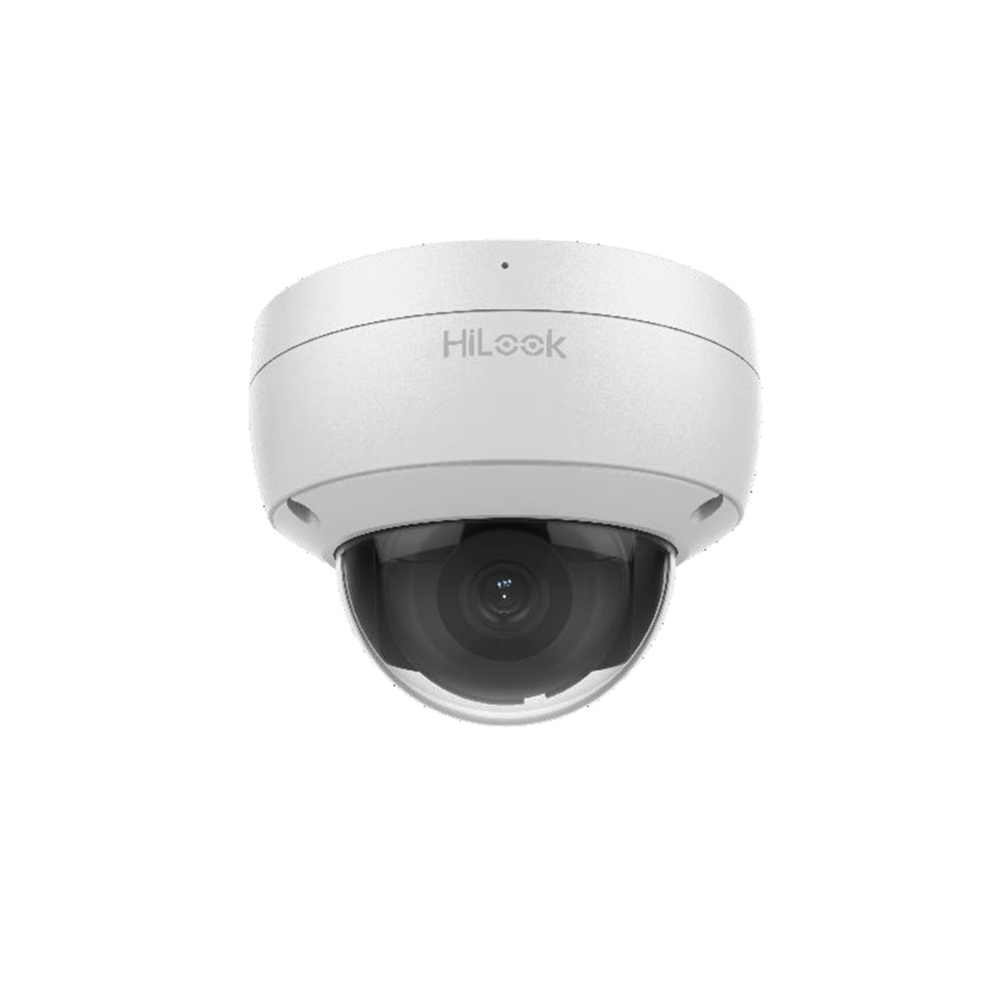

HiLook IPC-D261H-MU AcuSense / IntelliSense H265 6MP PoE IP IR (30m) 120dB True-WDR Weatherproof Vandalproof Dome Camera with 2.8mm Fixed Lens, with Built-in Audio Mic

Key Features :-

  • 1/2.8″ Progressive Scan CMOS
  • 3200 x 1800 @ 20 fps
  • 2.8mm fixed lens
  • Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • H.265, H.265+, H.264, H.264+
  • Three streams
  • Focus on human and vehicle targets classification based on deep learning
  • 120dB WDR
  • BLC / 3D-DNR / ROI / HLC
  • IR range: Up to 30m
  • Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
  • 3-Axis adjustment
  • Built-in microphone
  • IP66, IK10

HiLook Product-Link

HiLook One App (Hik-Connect) Solution

Camera

  • Image Sensor: 1/2.8″ Progressive Scan CMOS
  • Max. Resolution: 3200 × 1800
  • Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

  • Lens Type: Fixed focal length, 2.8 mm
  • Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6

DORI

  • DORI: 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m

Illuminator

  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream: 50 Hz: 20 fps (3200 × 1800), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 × 720, 960×540, 640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265 / H.264 / H.264+ / H.265+; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264, *Third stream is supported under certain settings.
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region Of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view : Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+


  • Image Parameters Switch: Yes
  • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR

Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Built-In Microphone: Yes
  • Reset Key: Yes

Event

  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection; Supports human and vehicle targets classification; Face detection
  • Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

General

  • Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
  • Dimension: Ø121.4 mm × 92.2 mm (Ø4.8″ × 3.7″)
  • Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
  • Weight: Approx. 550 g (1.2 lb.)
  • With Package Weight: Approx. 800 g (1.8 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, password reset via email, pixel counter

Approval

  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
