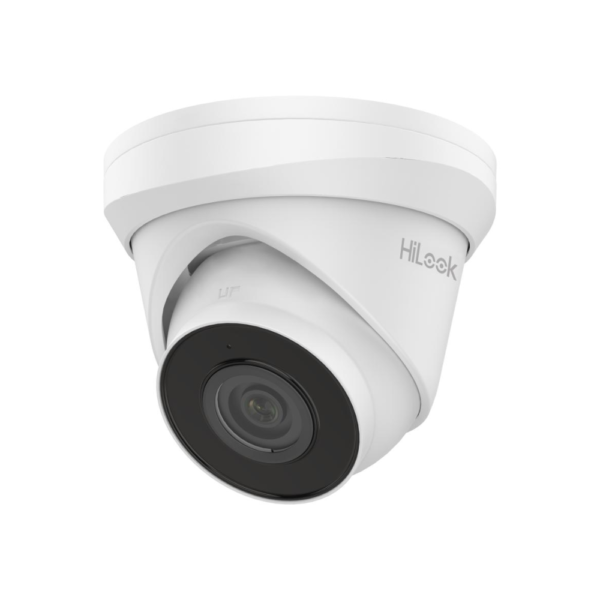

HiLook IPC-T240H-MU-2.8MM

Camera

• Image Sensor: 1/3″ progressive scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Fixed focal length, 2.8 mm
• Focal Length & FOV: 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.0

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream: 50 Hz: 20 fps (2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile / Main Profile / High Profile
• H.265 Type: Main Profile
• Region of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate: -U: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate: -U: 8 kHz/16 kHz
• Environment Noise Filtering: -U: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User/Host: Up to 32 users. 3 levels: administrator, operator and user
• Client: Hik-connect, iVMS-4200
• Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, 3D DNR

Interface

• Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: -U: Built-in memory card slot, support microSD card, up to 256 GB
• Built-in Microphone: -U: Yes
• Reset Key: -U: Yes

Event

• Basic Event: Motion detection, video tampering, exception
• Linkage: Upload to FTP, notify surveillance center, send email; -UF also supports: upload to memory card, trigger recording, trigger capture
• Smart Event: Line crossing detection, intrusion detection

General

• Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Dimension: Ø110 mm × 85.3 mm (Ø 4.3″ × 3.4″)
• Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight: Approx. 320 g (0.7 lb.)
• With Package Weight: Approx. 556 g (1.2 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013)
