HiLook IPC-T289PH-MU/SL-BLK

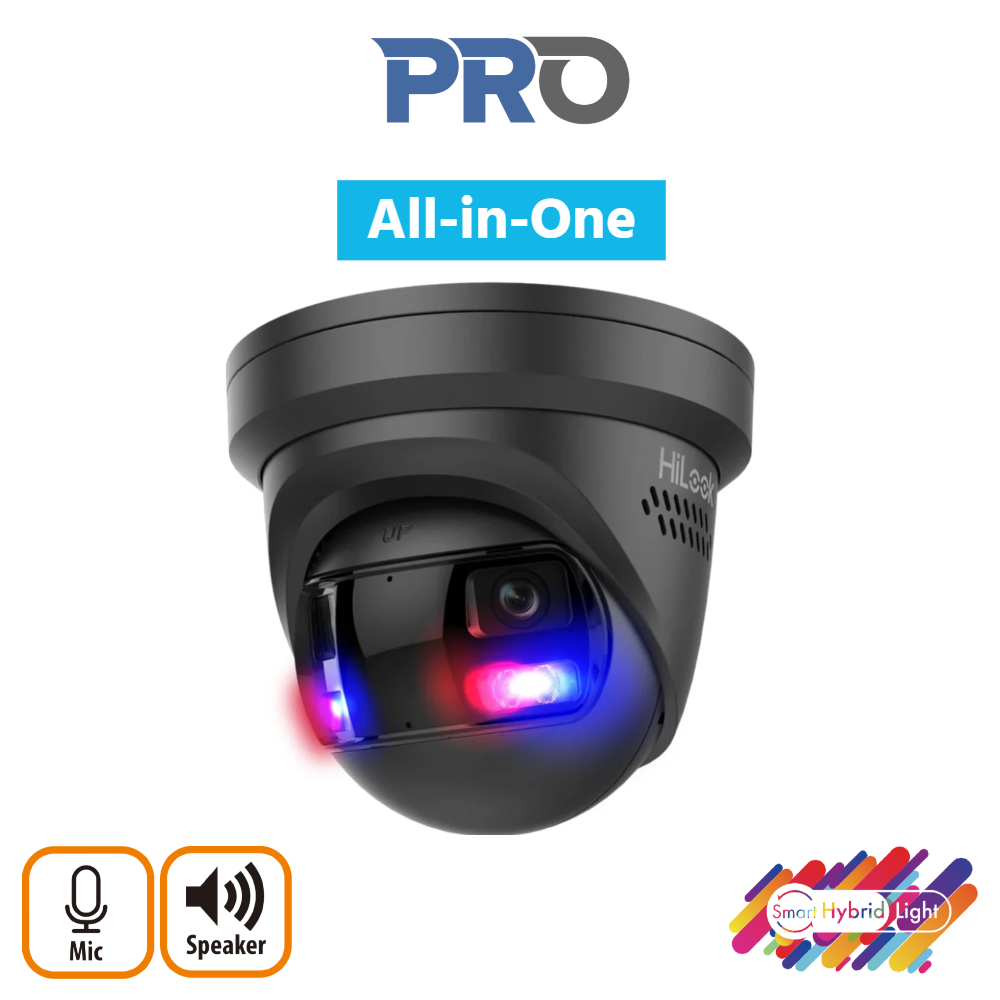

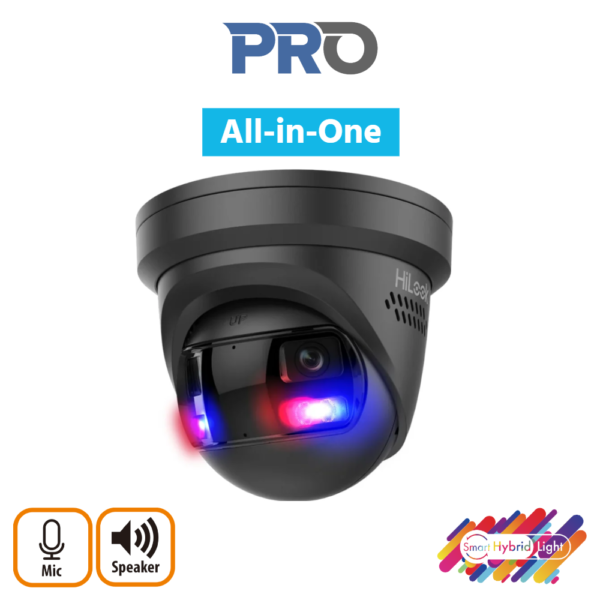

HiLook IPC-T289PH-MU/SL-BLK AI H265 4K 8MP Smart-Hybrid-Light (30m IR + 30m White-Light) Full-Colour 120dB True-WDR Low-Light (0.005 Lux Colour) Active-Deterrence (Strobe + Siren) Weatherproof Black Eyeball Turret Camera with 180° Ultra-Wide-Angle View – Built-in Mic + Speaker
SKU: IPC-T289PH-MU/SL-BLK
Categories: CCTV / Surveillance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance, IP Turret Cameras
Tags: 180 Degree, 2-Way Audio, 4K, 8MP, Active Deterrence, AcuSense, AI, Black, Built-in Mic, Camera, ColorVu, Eyeball Camera, Full Colour, H265, HiLook, Human Detection, IP Camera, IP67 Rated, IR, Network Camera, Siren, Smart Dual Light, Smart Hybrid Light, Speaker, Strobe, Turret Camera, Vehicle Detection, Weatherproof, White Light LED
HiLook IPC-T289PH-MU/SL-BLK AI H265 4K 8MP Smart-Hybrid-Light (30m IR + 30m White-Light) Full-Colour 120dB True-WDR Low-Light (0.005 Lux Colour) Active-Deterrence (Strobe + Siren) Weatherproof Black Eyeball Turret Camera with 180° Ultra-Wide-Angle View – Built-in Mic + Speaker
Key Features :-
- 8MP high-resolution dual-lens sensor for ultra-clear 180° panoramic imaging
- Smart Hybrid Light: IR and white light with 30m range
- Real-time two-way audio with built-in microphone and speaker
- Motion-triggered person/vehicle detection
- Active deterrence with strobe light and audible warning
- Advanced H.265+ compression for bandwidth efficiency
- IP67 weatherproof metal housing for outdoor durability
- Up to 512 GB microSD storage support
- Wide 180° horizontal and 77° vertical field of view
- PoE and 12VDC dual power options
Camera
- Image Sensor: 1/2.4″ Progressive Scan CMOS
- Max. Resolution: 4256 × 1888
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); 0 Lux with light
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens – 2mm
- Focal Length & FOV: 2mm, horizontal FOV 180°, vertical FOV 77°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
DORI
- DORI: D: 50 m, O: 20 m, R: 10 m, I: 5 m
Illuminator
- Supplement Light Type: IR, White Light
- Supplement Light Range: Up to 30m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
- Main Stream: 50 Hz: 20 fps (4256 × 1888); 60 Hz: 20 fps (4256 × 1888)
- Sub-Stream: 50 Hz: 20 fps (1200× 536, 960 × 432); 60 Hz: 20 fps (1200× 536, 960 × 432)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- Region of Interest (ROI): 1 fixed region for main stream
- Scalable Video Coding (SVC): H.264 and H.265 encoding
Audio
- Audio Type: Mono sound
- Audio Sampling Rate: 8 kHz / 16 kHz
- Environment Noise Filtering: Yes
- Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160 Kbps (MP2L2) / 16 to 64 Kbps (AAC-LC)
Network
- Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS
- User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
- Client: iVMS-4200, Hik-Connect
- Web Browser: Plug-in required live view: IE 11; Local service: Chrome 80+, Firefox 80+, Edge 89+
- Wide Dynamic Range (WDR): 120 dB
- SNR: ;≥ 52 dB
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC,HLC,3D DNR
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy Mask: 4 programmable polygon privacy masks
Interface
- Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB
- Built-in Microphone: Yes – 1 built-in microphone
- Built-in Speaker: Yes – 1 built-in speaker; Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
- Reset Key: Yes
Event
- Basic Event: Motion detection (supports alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
General
- Power: 12 VDC ± 25%, 0.83A, max. 10 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 11.5 W
- Material: Base: Metal, cover: Plastic
- Dimension: Ø138.3 mm × 115.4 mm (Ø5.4″ × 4.5″)
- Package Dimension: 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
- Weight: Approx. 790 g (1.7 lb.)
- With Package Weight: Approx. 1100 g (2.4 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
- General Function: Heartbeat, anti-banding, password protection, password reset via email
- Flashing Light: /SL model: White Light
Approval
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
- Safety: CB: IEC 62368-1: 2014+A11; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
