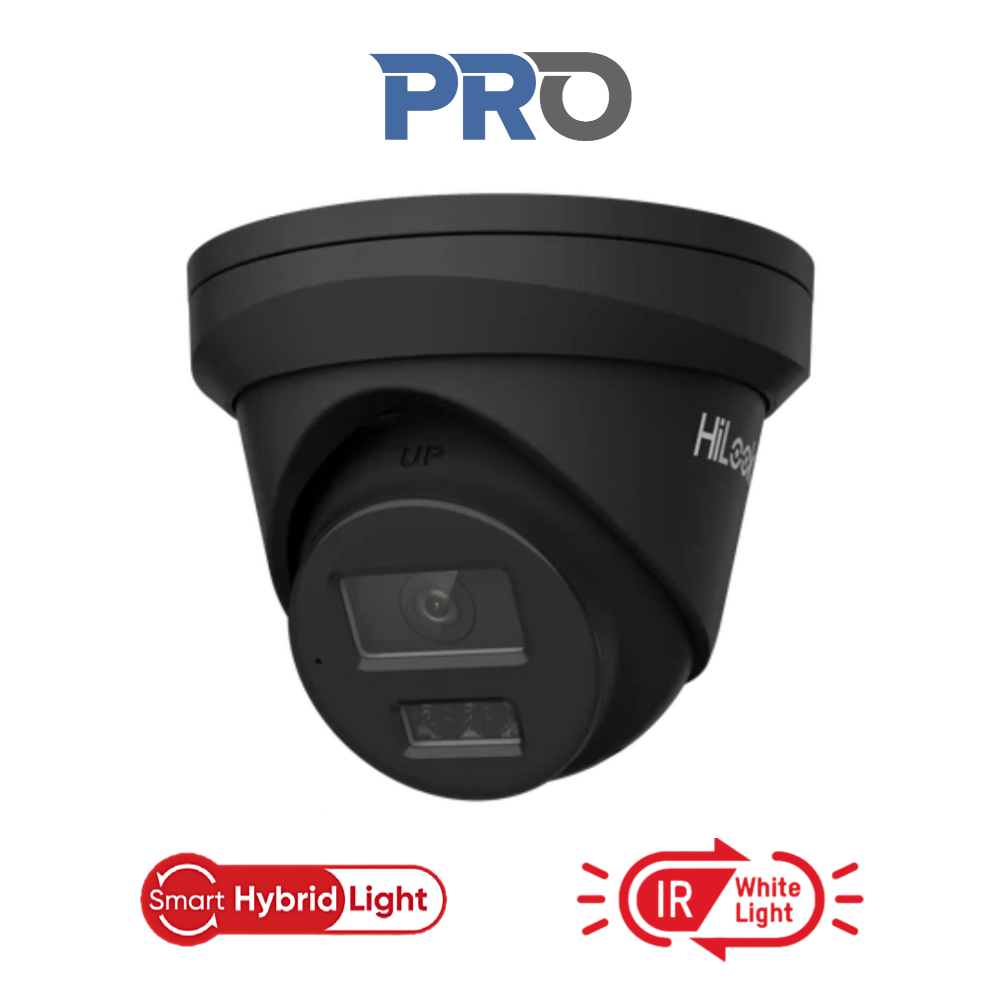

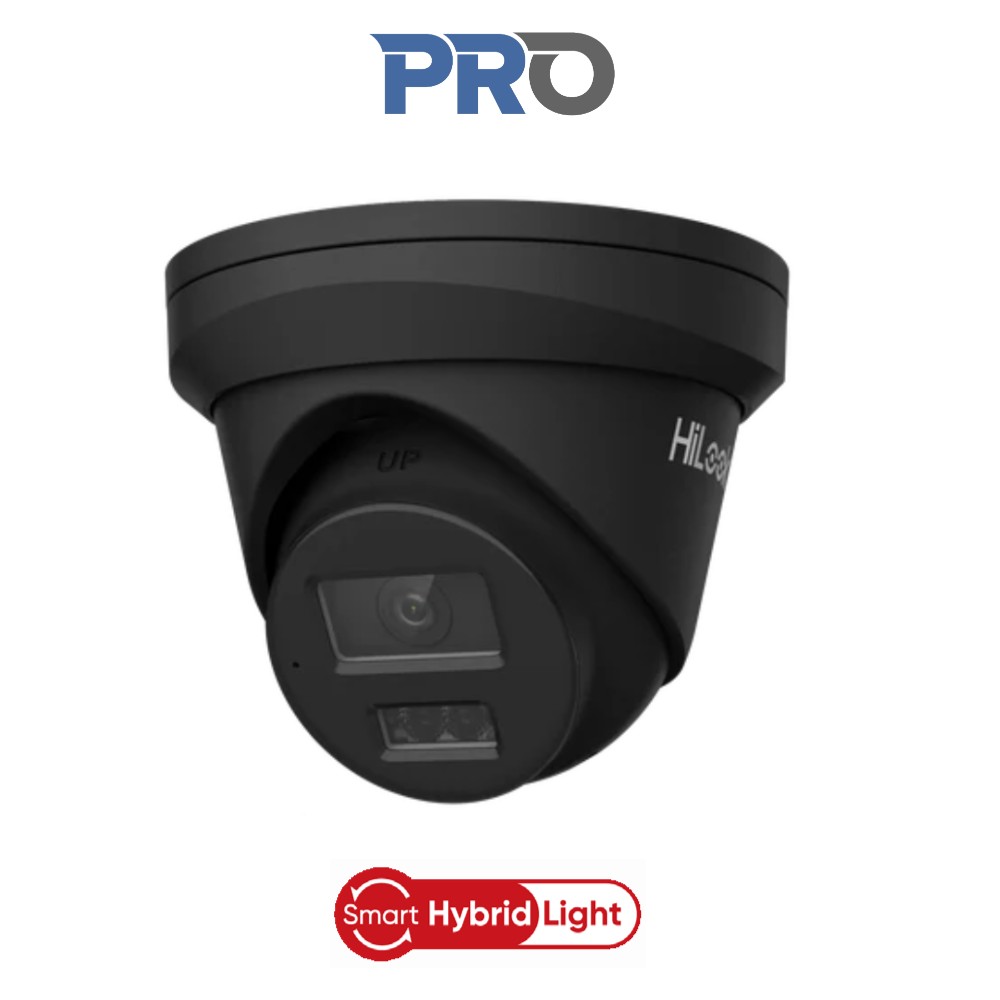

HiLook IPC-T363H-MU-BLK-2.8MM

Camera

• Image Sensor: 1/2.4″ Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON); 0 Lux with light
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens – 2.8mm
• Focal Length & FOV: 2.8 mm, horizontal FOV 119.6°, vertical FOV 60°, diagonal FOV 149°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.2

DORI

• DORI: D: D: 76 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream: 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main stream
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio

• Audio Type: Mono sound
• Audio Sampling Rate: 8 kHz / 16 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160 Kbps (MP2L2) / 16 to 64 Kbps (AAC-LC)

Network

• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Client: iVMS-4200, Hik-Connect
• Web Browser: Plug-in required live view: IE10, IE 11; Local service: Chrome 57+, Firefox 52+, Edge 89+


• Wide Dynamic Range (WDR): 120 dB
• SNR: ;≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC,HLC,3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB
• Built-in Microphone: Yes – 1 built-in microphone
• Reset Key: Yes

Event

• Basic Event: Motion detection (supports alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Smart Event: Line crossing detection and intrusion detection (supports alarm triggering by specified target types (human and vehicle))
• Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing

General

• Power: 12 VDC ± 25%, 0.41A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material: Base: Metal
• Dimension: Ø 127.3 mm × 95.9 mm (Ø 5.0″ × 3.8″)
• Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight: Approx. 600 g (1.3 lb.)
• With Package Weight: Approx. 909 g (2.0 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
• General Function: Heartbeat, anti-banding, password protection, password reset via email
• Flashing Light: /SL model: White Light

Approval

• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
• Safety: CB: IEC 62368-1: 2014+A11; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013
