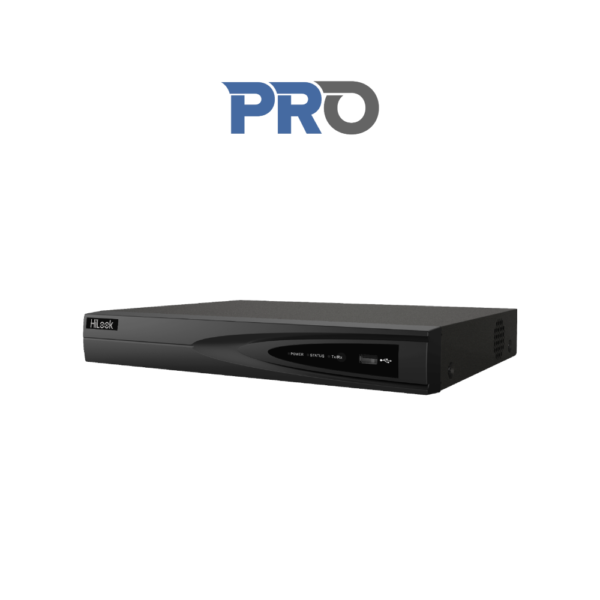

HiLook NVR-104MH-K/4P

Name: HiLook NVR-104MH-K/4P
SKU: NVR-104MH-K/4P

HiLook NVR-104MH-K/4P Pro-series AI 4K Mini 1U H265 4-Channel 4x PoE NVR – Network Video Recorder – Compatible with HiLook & Hikvision Cameras

Estimated Arrival Date: 12/09/2025

This product is currently unavailable.

HiLook NVR-104MH-K/4P Pro-series AI 4K Mini 1U H265 4-Channel 4x PoE NVR – Network Video Recorder – Compatible with HiLook & Hikvision Cameras

Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces
H.265+ / H.265 / H.264+ / H.264 video formats
Up to 1-ch @ 12MP or 2-ch @ 8MP or 4-ch @ 4MP or 8-ch @ 1080p decoding capacity
Up to 40 Mbps incoming bandwidth
Adopt HiLook AI technology to minimize manual effort and security costs
Hardware characteristics :-
- - - 1 x VGA port (max. 1080P resolution)
    - 1 x HDMI port (max. 4K resolution) – Same display output as VGA
    - 1 x 3.5″ SATA HDD port (max. 10TB HDD per port)
    - 2 x USB ports (one front, one rear)
    - 4 x PoE ports (10/100Mbps) (Max. 50w PoE power across all PoE ports)
    - 1 x LAN port (10/100/1000Mbps)
    - No Alarm input ports
    - No Alarm output port
    - 1 x Audio RCA input port
    - 1 x Audio RCA output port

AI By Device: Facial recognition, perimeter protection, motion detection 2.0
AI By Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Face Attributes: N/A
Facial Detection And Analytics: Face picture comparison, human face capture, face picture search
Face Picture Comparison (Captured From Camera): 2-ch

By Device: All channels, 4MP (when enhanced SVC mode is enabled, up to 8MP) video analysis for human and vehicle recognition to reduce false alarm
By Camera: All channels

By Device: 1-ch, 4MP (HD network camera, H.264 / H.265) video analysis for human and vehicle recognition to reduce false alarm
By Camera: All channels

IP Video Input: 4-ch
Incoming Bandwidth: 40 Mbps
Outgoing Bandwidth: 80 Mbps
HDMI Output: 1-ch, 4K (3840 × 2160) / 30 Hz, 2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720/60 Hz
VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode: HDMI1 / VGA simultaneous output
CVBS Output: N/A
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding Format: H.265 / H.265+ / H.264+ / H.264
Recording Resolution: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback: 4-ch
Decoding Capability: AI on: 1-ch @ 12MP (30 fps) / 1-ch @ 8MP (30 fps) / 3-ch @ 4MP (30 fps) / 6-ch @ 1080p (30 fps); AI off: 1-ch @ 12MP (30 fps) / 2-ch @ 8MP (30 fps) / 4-ch @ 4MP (30 fps) / 8-ch @ 1080p (30 fps)
Stream Type: Video, Video & Audio
Audio Compression: G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Remote Connection: 128
API: ONVIF (profile S/G); SDK; ISAPI
Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply: 48 VDC, 1.35 A
Consumption: ≤ 10 W (without HDD and PoE off)
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 320 mm × 240 mm × 48 mm (12.6″× 9.4″ × 1.9″)
Weight: ≤ 1 kg (without HDD, 2.2 lb.)
