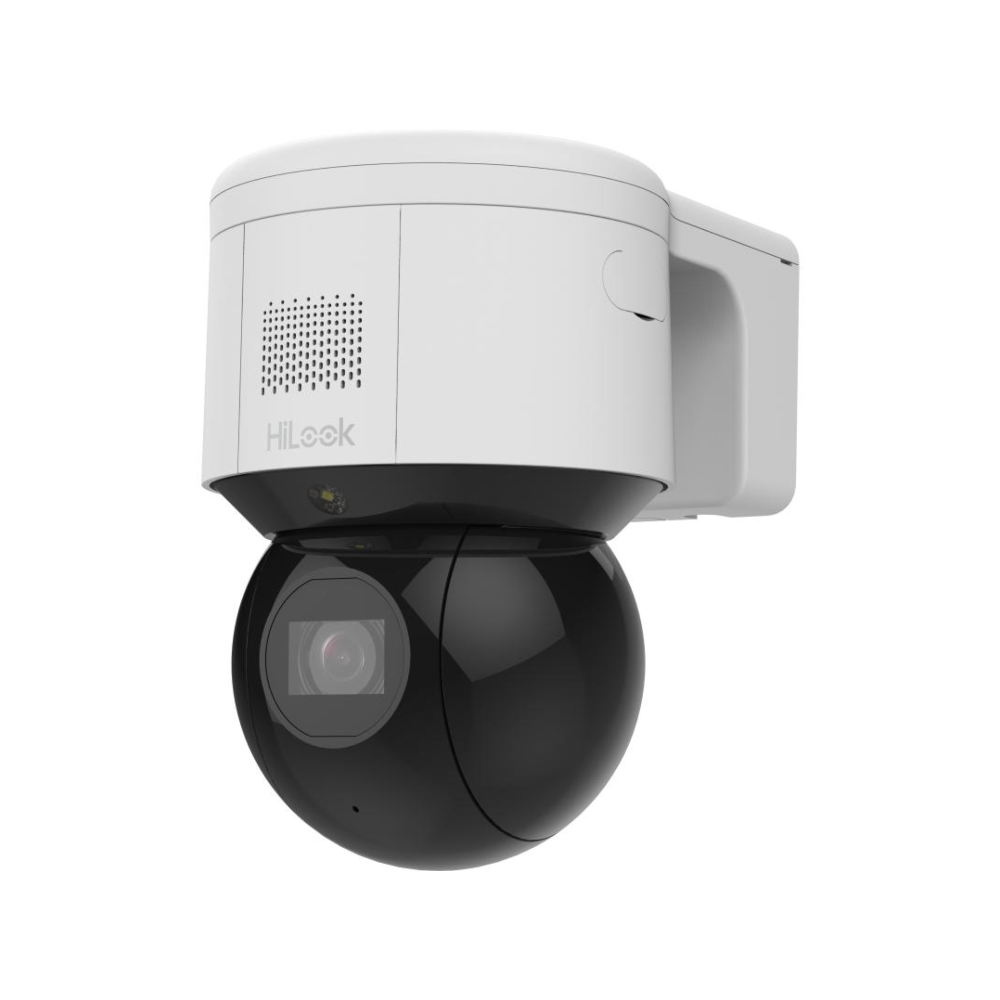

HiLook PTZ-N3404LIU/SL

Camera

• Image Sensor: 1/2.8″ progressive scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON); B/W: 0.001 Lux @ (F1.5, AGC ON); 0 Lux with IR
• Shutter Speed: 1 to 1/30,000 s
• Day & Night: IR cut filter
• Zoom: 4 × optical, 16 × digital

Lens

• Focal Length: 2.8 to 12 mm
• Focus: Auto, semi-auto, manual
• Aperture: Max. F1.5
• Zoom Speed: Approx. 2 s (optical lens, wide-tele)

Illuminator

• Supplement Light Range: IR distance: up to 50 m, white light distance: up to 6m

PTZ

• Movement Range (Pan): 0° to 350°
• Movement Range (Tilt): 0° to 90°
• Pan Speed: Configurable, from 0.1°/s to 60°/s. Preset speed: 60°/s
• Tilt Speed: Configurable, from 0.1°/s to 50°/s. Preset speed: 60°/s
• Proportional Pan: Yes
• Presets: 300
• Preset Freezing: Yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Park Action: Preset, Patrol Scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Scheduled Task: Preset, Patrol Scan, dome reboot, dome adjust, aux output
• Power-off Memory: Yes

Video

• Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third Stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline profile / main profile / high profile
• H.265 Type: Main profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 8 fixed regions for each stream

Audio

• Audio Compression: G.711alaw / G.711ulaw / G.722.1 / G.726 / MP2L2 / PCM
• Audio Bit Rate: 64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726)  /32 Kbps to 160 Kbps (MP2L2)

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, QoS,802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
• Simultaneous Live View: Up to 20 channels
• API: Open Network Video Interface, ISAPI, SDK, ISUP
• User/Host: Up to 32 users. 3 user levels, administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, HikCentral, Hik-Connect; *Wi-Fi connection with Hik-Connect directly is not possible.
• Web Browser: IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+


• Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Wide Dynamic Range (WDR): 120 dB
• Defog: Digital defog
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 24 programmable polygon privacy masks, mask color configurable
• Regional Focus: Yes
• Regional Exposure: Yes

Interface

• Ethernet Interface: 1* RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Built-in Microphone: 1 built-in microphone
• Built-in Speaker: 1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm)
• Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• Alarm: 1 input, 1 output
• Power Output: 12 VDC, max. 60 mA

Event

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output
• Smart Event: Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Linkage: Preset, Patrol Scan, Upload to FTP/memory card/NAS, notify surveillance center, send email, audible warning, Flashing Alarm

Deep Learning Function

• Multi-Target-Type Detection: Supports simultaneous detection and capture of human body, face and vehicle

General

• Power: 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A; Max. 14 W (including max. 2.4 W for IR, 1.2 W for white light flashing)
• Dimension: 179.3 mm × 120.5 mm × 182 mm (7.06″ × 4.74″ × 7.17″)
• Weight: Approx. 1.125 kg (2.48 lb.)
• Material: ADC12 + PC
• Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Approval

• Protection: IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
