This product is currently unavailable.

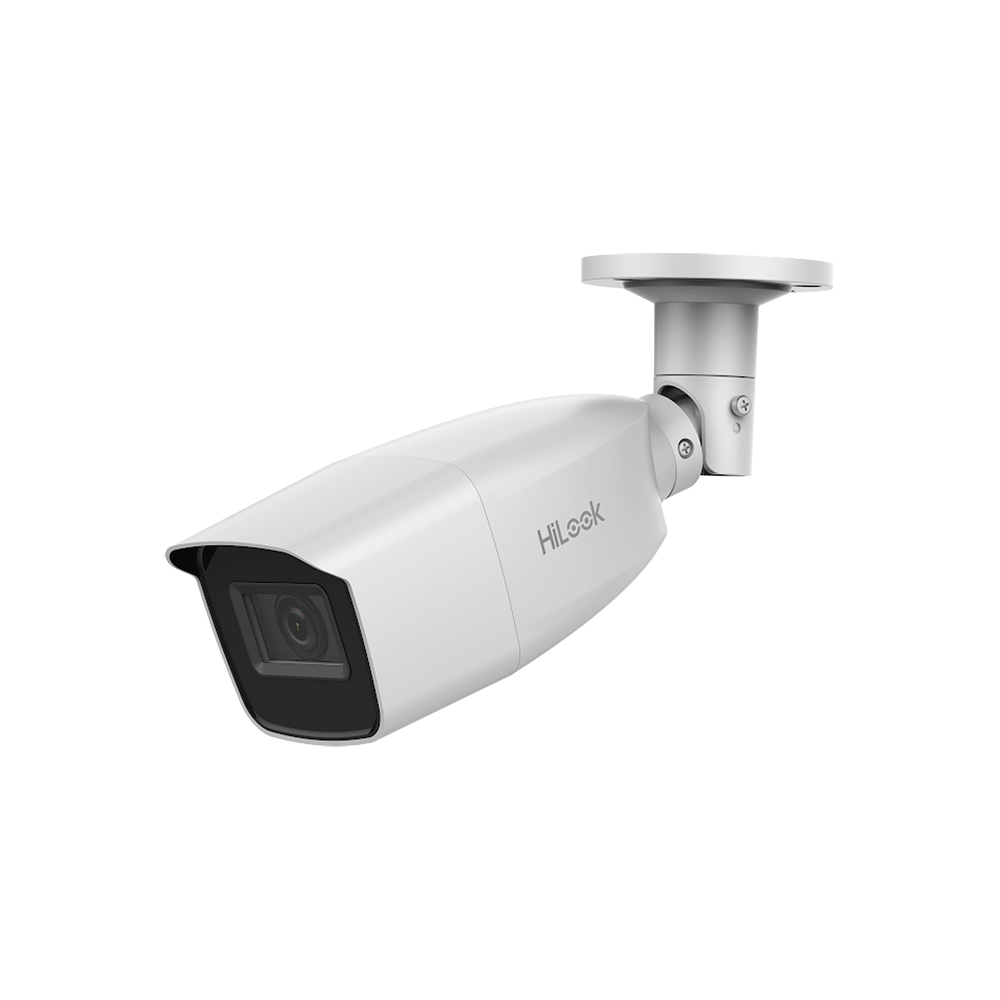

Hikvision HiLook THC-B323-Z 2MP 1080P HDTVI Ultra Low-light (0.005 Lux Colour) EXIR (70m) True-WDR (120dB) Weatherproof Bullet Camera with 2.7~13.5mm Motorized Zoom Lens – Default Video Output 2MP HDTVI – Video Output Switchable to HDCVI / AHD / CVBS

Key Features :-

  • 2MP high-performance CMOS
  • Ultra low light
  • 1920 × 1080 resolution
  • 2.7~13.5mm Motorized Zoom vari-focal lens
  • OSD menu, 3D DNR, 120dB true WDR, day/night switch
  • EXIR 2.0, smart IR, up to 70m IR distance
  • IP66 weatherproof
  • Default Video Output 2MP HDTVI – Video Output Switchable to HDCVI / AHD / CVBS

Camera

  • Lens: 2.7 mm to 13.5 mm
  • Horizontal Field Of View: 102.4° to 31°
  • Lens Mount: Φ14
  • Day & Night: IR cut filter
  • Synchronization: Internal synchronization
  • WDR (Wide Dynamic Range): 120 dB
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • Image Sensor: 2MP CMOS image sensor
  • Signal System: PAL/NTSC
  • Frame Rate: PAL: 1080p @ 25fps NTSC: 1080p @ 30fps
  • Resolution: 1920 (H) × 1080 (V)
  • Min. Illumination: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Menu

  • AGC: High / Medium / Low
  • Day/Night Mode: Auto / Color / BW (Black and White)
  • Backlight Compensation: Support
  • WDR: Support
  • Language: English
  • Functions: Brightness, Sharpness, 3D DNR , Mirror, Smart IR
  • HLC: Support

Interface

  • Video Output: 1 HD analog output
  • Switch Button: TVI / AHD / CVI / CVBS

General

  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • Power Supply: 12VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
  • Power Consumption: Max. 7.7 W
  • Protection Level: IP66
  • Material: Metal
  • IR Range: Up to 70 m
  • Dimensions: 256.4 mm × 83.3 mm × 78.2 mm (10″ × 3.2″ × 3″)
  • Weight: Approx. 720 g (1.59 lb.)
