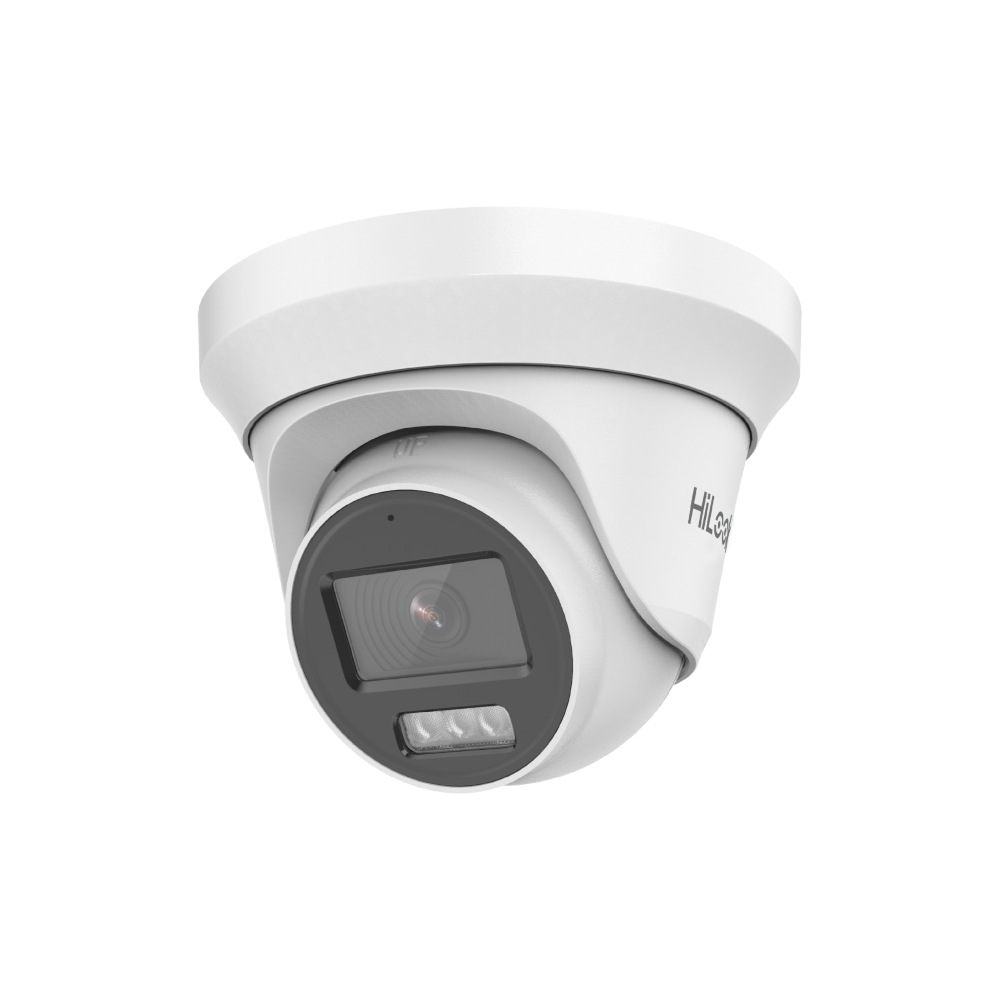

HiLook THC-T257-LMS-0280B

Camera

• Image Sensor: 3K CMOS
• Max. Resolution: 2960 (H) × 1665 (V)
• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
• Signal System: PAL/NTSC

Lens

• Lens Type: Fixed focal lens, 2.8 mm
• Focal Length & FOV: 2.8 mm, horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
• Lens Mount: M12

Illuminator

• Supplement Light Type: White Light; IR
• Supplement Light Range: IR : up to 40m; White Light : up to 20m


• Image Settings: Brightness, Sharpness, Smart IR
• Frame Rate:

  • TVI: 3K @ 20fps, 4MP @ 25fps / 30 fps, 1080p @ 25fps / 30 fps

  • AHD: 5MP @ 20fps, 4MP @ 25fps / 30fps

  • CVI: 4MP @ 25fps / 30fps

  • CVBS: PAL / NTSC

• Day/Night Mode: IR / White Light
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: Yes
• White Balance: Auto / Manual
• AGC: Yes

Interface

• Video Output: Switchable TVI / AHD / CVI / CVBS

General

• Material: Body: metal; Enclosure: metal
• Dimension: Ø127.9 mm × 97.8 mm (Ø5.04″ × 3.85″)
• Weight: Approx. 476 g (0.75 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ± 25%
• Consumption: Max. 3.3 W

Approval

• Protection: IP66
