Cables & Accessories, Security Cable
Huier 60126

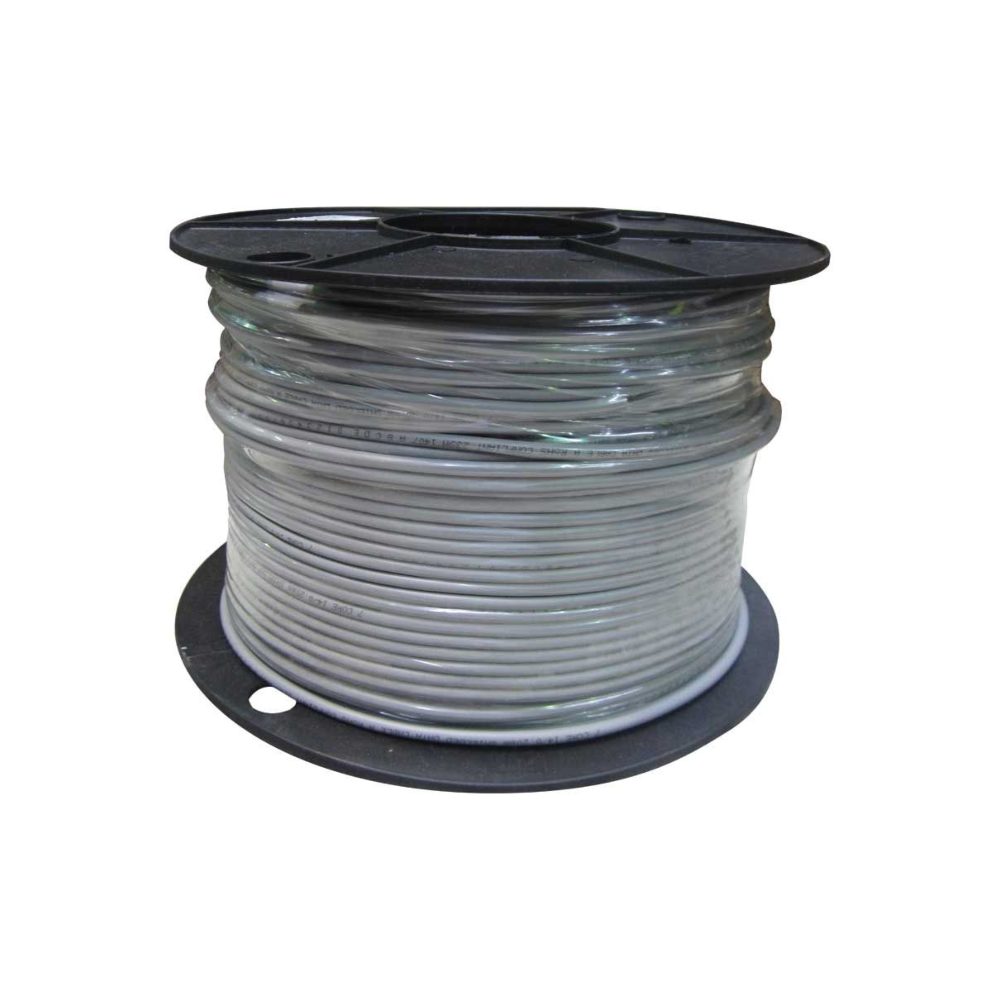

Huier 60126 7-Core Shielded Screened Reader Security Cable – Gray Sheath – 0.5mm Copper – 250m Length On A Plastic Reel
SKU: 60126
Categories: Cables & Accessories, Security Cable
Tags: 7-Core, Access Control, Grey, Huier, Screened, Security Cable, Shielded
Huier 60126 7-Core Shielded Screened Reader Security Cable – Gray Sheath – 0.5mm Copper – 250m Length On A Plastic Reel
Construction Parameters :-
- Conductor: 7C × 14/0.20mm ± 0.005mm CCA
- Insulation: 1.45mm ± 0.10mm PVC
- Insulation Color: Red, Blue, White, Black, Green, Yellow & Brown
- Drain-wire: 7/0.19mm±0.005 TC-Tinned Copper
- Shielded: Aluminum Foil
- Ripcord: Yes
- Sheath: 5.8mm ± 0.2mm PVC Gray
- Nom. Thickness: 0.65 mm
- Min. Thickness: 0.60 mm
Huier 60126 7-Core Shielded Screened Reader Security Cable – Gray Sheath – 0.5mm Copper – 250m Length On A Plastic Reel
Construction Parameters :-
- Conductor: 7C × 14/0.20mm ± 0.005mm CCA
- Insulation: 1.45mm ± 0.10mm PVC
- Insulation Color: Red, Blue, White, Black, Green, Yellow & Brown
- Drain-wire: 7/0.19mm±0.005 TC-Tinned Copper
- Shielded: Aluminum Foil
- Ripcord: Yes
- Sheath: 5.8mm ± 0.2mm PVC Gray
- Nom. Thickness: 0.65 mm
- Min. Thickness: 0.60 mm
