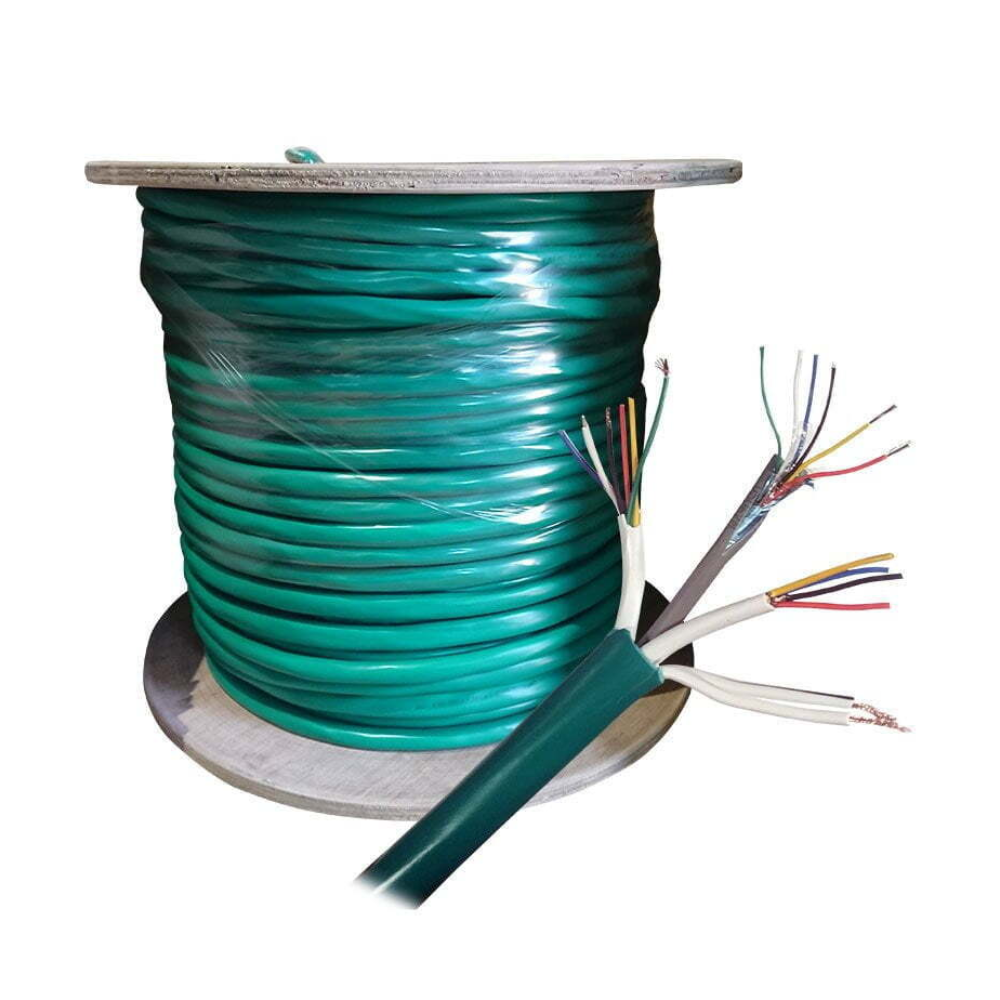

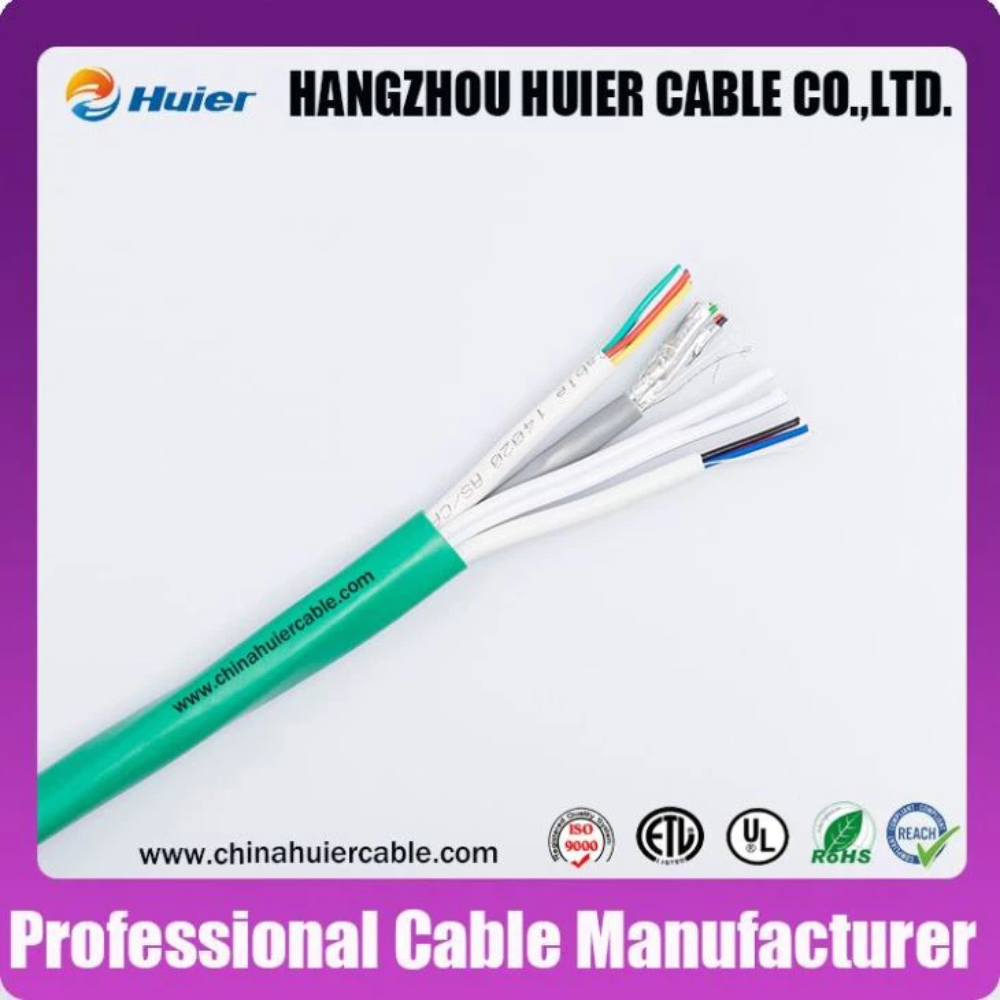

Huier 60290 Figure-8 and Multi-Core Composite Security / Access Control Cable – Wiegand – Green Sheath – 200m Wooden Drum – 1 * 6-Core Screen Cable + 1 * 4-Core 0.5mm Cable + 1 * 6-Core 0.5mm Cable + 1 * Figure-8 / Twin 0.75mm Cable
Huier 60290 Figure-8 and Multi-Core Composite Security / Access Control Cable – Wiegand – Green Sheath – 200m Wooden Drum – 1 * 6-Core Screen Cable + 1 * 4-Core 0.5mm Cable + 1 * 6-Core 0.5mm Cable + 1 * Figure-8 / Twin 0.75mm Cable
Construction Parameters :-
A: 6C Screened Security Cable
Conductor: 6C Stranded Tinned Copper
Insulation: PVC
Shield 1: PET Tape
Drain Wire: Stranded Tinned Copper
Shield 2: Aluminum Foil
Rip-cord: Yes
Sheath: PVC Grey
B: 4C Unscreened Security Cable
Conductor: 4C Stranded Bare Copper
Insulation: PVC
Rip-cord: Yes
Sheath: PVC White
C: 6C Unscreened Security Cable
Conductor: 6C Bare Copper
Insulation: PVC
Rip-cord: Yes
Sheath: PVC
D: Twin Speaker Cable with Black Stripe
Conductor: 2C Bare Copper
Sheath: PVC with Black String
Rip-cord: Yes
Sheath: PVC
Mechanical Properties (20ā):
| Rate Voltage | 300V |
| Rate Temperature | -20ā up to +75ā |
| Conductor Resistance(DCR@200C) | ā¤10.0Ī©/100m |
| Insulation Resistance(DC) | ā§0.010Ī©/km |
| Conductor breaking elongation rate | ā§15% |
| Insulation tension | ā§16MPa |
| Sheath tension before aging | ā§10MPa |
| Insulation breaking elongation | ā§200% |
| Sheath breaking elongation before aging | ā§125% |
| Sheath breaking elongation after aging | ā§100% |
