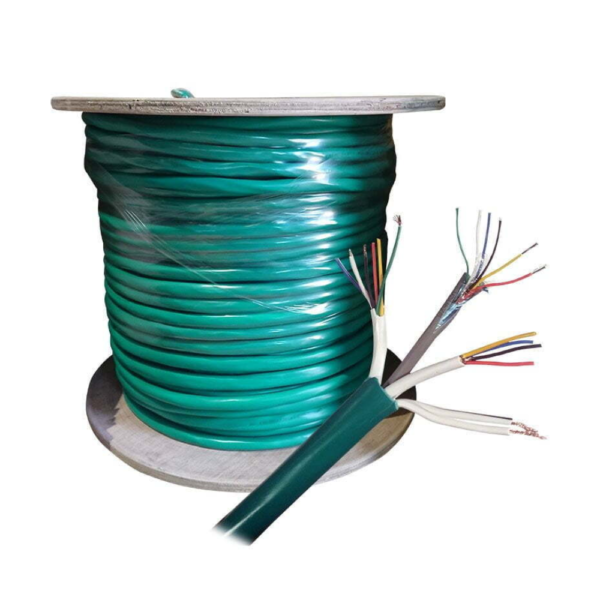

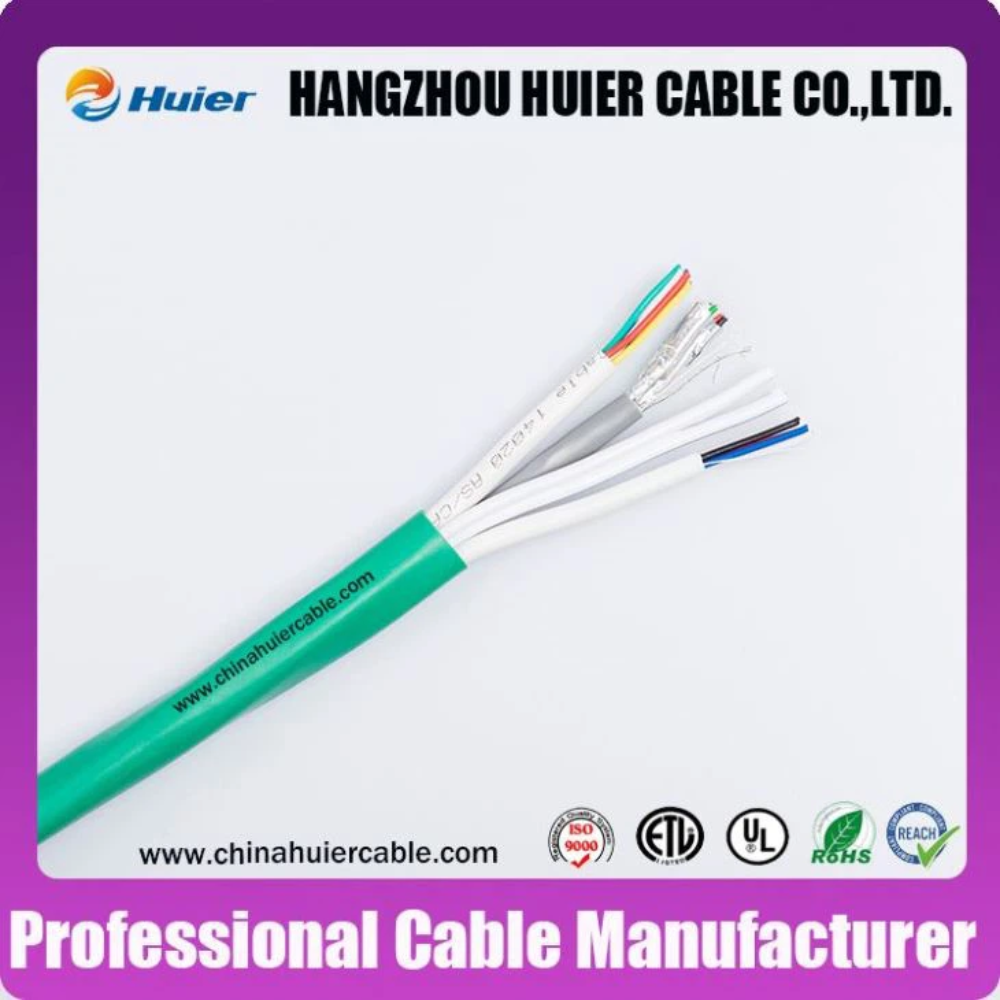

Huier 60295 Figure-8 and Multi-Core Composite Security / Access Control Cable – OSDP & RS485 – Green Sheath – 200m Wooden Drum – 1 * 6-Core Screen Cable + 1 * 4-Core 0.5mm Cable + 1 * 6-Core 0.5mm Cable + 1 * Figure-8 / Twin 0.75mm Cable
Huier 60295 Figure-8 and Multi-Core Composite Security / Access Control Cable – OSDP & RS485 – Green Sheath – 200m Wooden Drum – 1 * 6-Core Screen Cable + 1 * 4-Core 0.5mm Cable + 1 * 6-Core 0.5mm Cable + 1 * Figure-8 / Twin 0.75mm Cable
Construction Parameters :-
A: 6C Screened Security Cable
Conductor: 6C Stranded Tinned Copper
Insulation: PVC
Shield 1: PET Tape
Drain Wire: Stranded Tinned Copper
Shield 2: Aluminum Foil
Rip-cord: Yes
Sheath: PVC Grey
B: 4C Unscreened Security Cable
Conductor: 4C Stranded Bare Copper
Insulation: PVC
Rip-cord: Yes
Sheath: PVC White
C: 6C Unscreened Security Cable
Conductor: 6C Bare Copper
Insulation: PVC
Rip-cord: Yes
Sheath: PVC
D: Twin Speaker Cable with Black Stripe
Conductor: 2C Bare Copper
Sheath: PVC with Black String
Rip-cord: Yes
Sheath: PVC
Mechanical Properties (20℃):
| Rate Voltage | 300V |
| Rate Temperature | -20℃ up to +75℃ |
| Conductor Resistance(DCR@200C) | ≤10.0Ω/100m |
| Insulation Resistance(DC) | ≧0.010Ω/km |
| Conductor breaking elongation rate | ≧15% |
| Insulation tension | ≧16MPa |
| Sheath tension before aging | ≧10MPa |
| Insulation breaking elongation | ≧200% |
| Sheath breaking elongation before aging | ≧125% |
| Sheath breaking elongation after aging | ≧100% |
