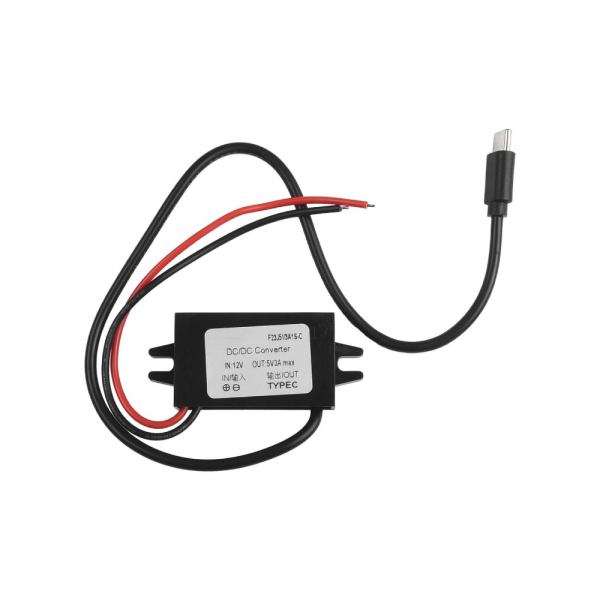

iSecure ICL-12VDC-USB-C-Converter

iSecure ICL-12VDC-USB-C-Converter Step-Down Converter – 12VDC Input – USB-C (5VDC) @ 3A Rated Output

Key Features :-

• Input Voltage – DC 12V
• Input Voltage Range – DC 8-22V
• Output (cable length: 12cm)
• Output Voltage – DC5V in form of USB-C
• Output Current – 3A Max
• Output Power – 15W Max
• Conversion Efficiency – >93%
• Voltage regulation – ±1%
• Load regulation – ± 2%
• Ripple (Full load test) – < 150mV
• No-load current – <100mA
• Working Temperature – -40~80? ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
