iSecure ICL-4GPTZ675AI

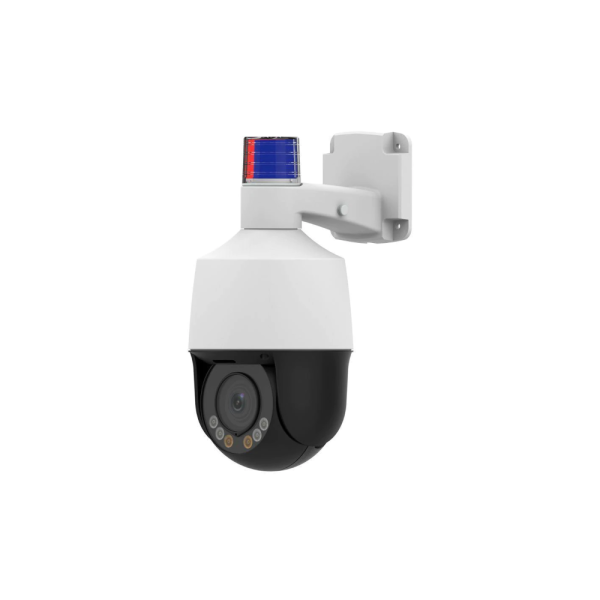

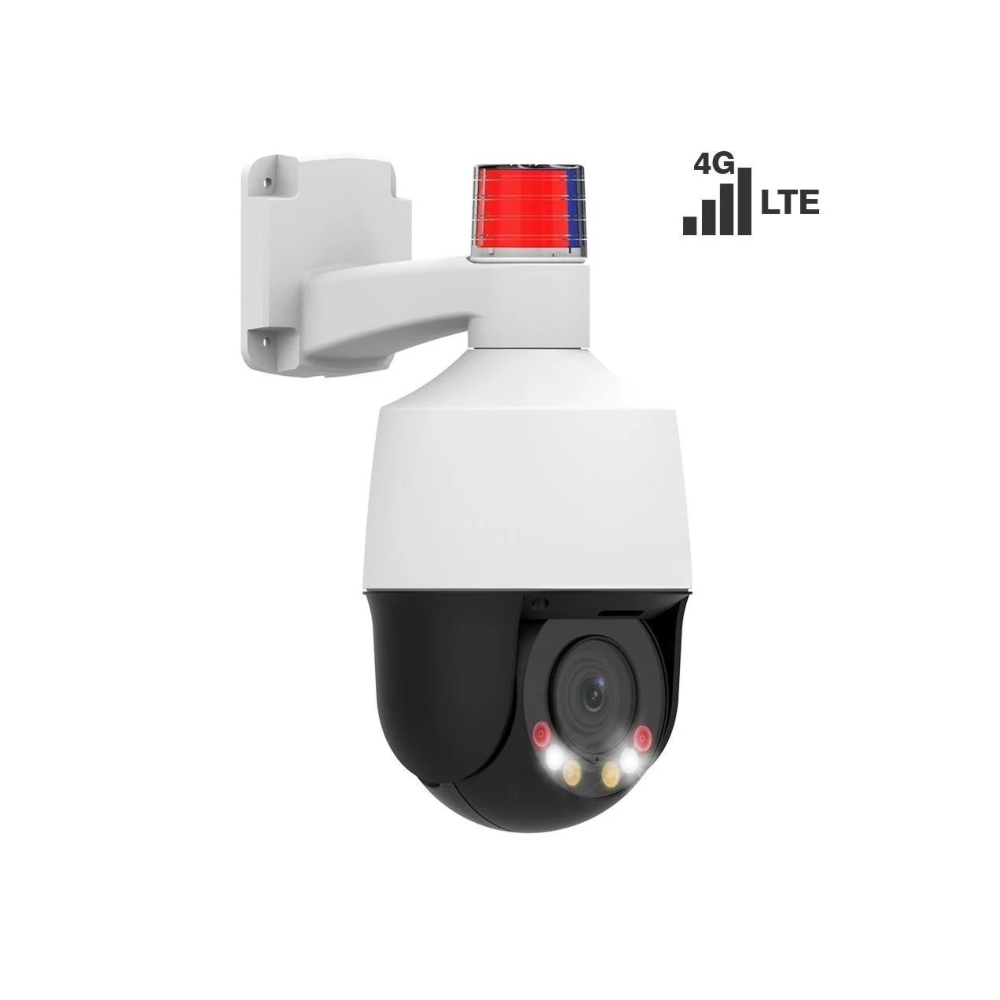

iSecure ICL-4GPTZ675AI AI Deep-Learning 5MP 3G / 4G LTE H265 PoE IP IR (50m) White-Light (10m) 120dB True-WDR Low-Light (0.003 Lux Colour) Lighthunter Active Deterrence PTZ Camera with 4x Optical Zoom Lens + 2-Way Audio + Strobe + Siren + 3G/4G Network Connectivity
SKU: ICL-4GPTZ675AI
Categories: IP 4G / LTE Cameras, IP Cameras, IP Surveillance
Tags: 120dB True-WDR, 3G Camera, 4G Camera, 5MP, Active Deterrence, AI, Artificial Intelligence, Built-in Mic, Camera, CCTV, H265, Human Detection, IP Camera, IR, iSecure, LTE, Network Camera, PTZ Camera, Siren, Solar, Speaker, Strobe, Varifocal Motorized Zoom Lens, Vehicle Detection, White Light LED
iSecure ICL-4GPTZ675AI AI Deep-Learning 5MP 3G / 4G LTE H265 PoE IP IR (50m) White-Light (10m) 120dB True-WDR Low-Light (0.003 Lux Colour) Lighthunter Active Deterrence PTZ Camera with 4x Optical Zoom Lens + 2-Way Audio + Strobe + Siren + 3G/4G Network Connectivity
Features :-
- 1/2 8″ Sony 327 progressive scan CMOS sensor
- Built in 4G LTE wireless network, compatible to main carriers in the world
- Active strobe light and audio alarm to warn intruders off
- False alarm reduction through human and vehicle target classification based on deep learning
- 2.8~12 mm lens with Pan/Tilt
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Excellent low light performance powered by DarkFighter technology
- High quality imaging with 5MP resolution
- Clear imaging against strong back light due to 120dB true WDR technology
- Provides real time security via built in two way audio
| Camera | ||||||
| Sensor | 1/2.7″ progressive scan, 5.0 megapixel, CMOS | |||||
| Lens | 2.8~12mm，AF automatic focusing and motorized zoom lens | |||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |
| 2.8mm | 63.0 | 25.2 | 12.6 | 6.3 | ||
| 12mm | 270.0 | 108.0 | 54.0 | 27.0 | ||
| Angle of View (H) | 30.6°~104.1° | |||||
| Angle of View (V) | 17.4°~54.9° | |||||
| Angle of View (O) | 34.4°~108.3° | |||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | |||||
| Minimum Illumination | Colour:0.003 lux (F1.6, AGC ON)
0 lux with IR |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >52 dB | |||||
| IR Range | UP to 50m (164ft) | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Warm Light Range | UP to 10m (33ft) | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile | |||||
| Frame Rate | Mainstream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps.
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps. Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
|||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 8 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | N/A | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Intelligent | ||||||
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection | |||||
| Events | ||||||
| Basic Detection | Motion detection, Tampering alarm, Audio Detection | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Two-way Audio | Supported | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8 KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256 GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Client | EZStation, EZView, EZLive | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||
| 4G Frequency Band | US version: 4G LTE Band 1/2/4/5/12/13/17
Working with AT&T / T-Mobile 4G LTE Network Australia Version: 4G LTE Band 1/3/5/7/8/20 Working with Telstra, Optus, Vodafone 4G LTE Network |
|||||
| Pan & Tilt | ||||||
| Pan Range | 0°~345° | |||||
| Pan Speed | 0.1°/s ~ 50°/s | |||||
| Preset speed: 50°/s | ||||||
| Tilt Range | -10~110° | |||||
| Tilt Speed | 0.1° ~ 40°/s | |||||
| Preset speed: 40°/s | ||||||
| Number of Presets | 256 | |||||
| Patrol | Preset patrol, Route patrol | |||||
| Interface | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||
| Built-in Mic | Supported | |||||
| Built-in Speaker | Supported | |||||
| Alarm Light | Supported | |||||
| Certifications | ||||||
| Certifications | CE: EN 60950-1; UL: UL60950-1; FCC: FCC Part 15 | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE802.3 at) | |||||
| Power consumption: Max 18 W | ||||||
| Dimensions (Ø x H) | Φ133mm*269.4mm (Φ5.2”x 10.6”) | |||||
| Net Weight | 0.87 kg (1.92lb) | |||||
| Gross Weight | 1.13 kg (2.49lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 4KV | |||||
| Ingress Protection | IP66 | |||||
| Reset Button | Supported | |||||
Mobile app = Guard Viewer for Android & Guard Viewer for iOS
