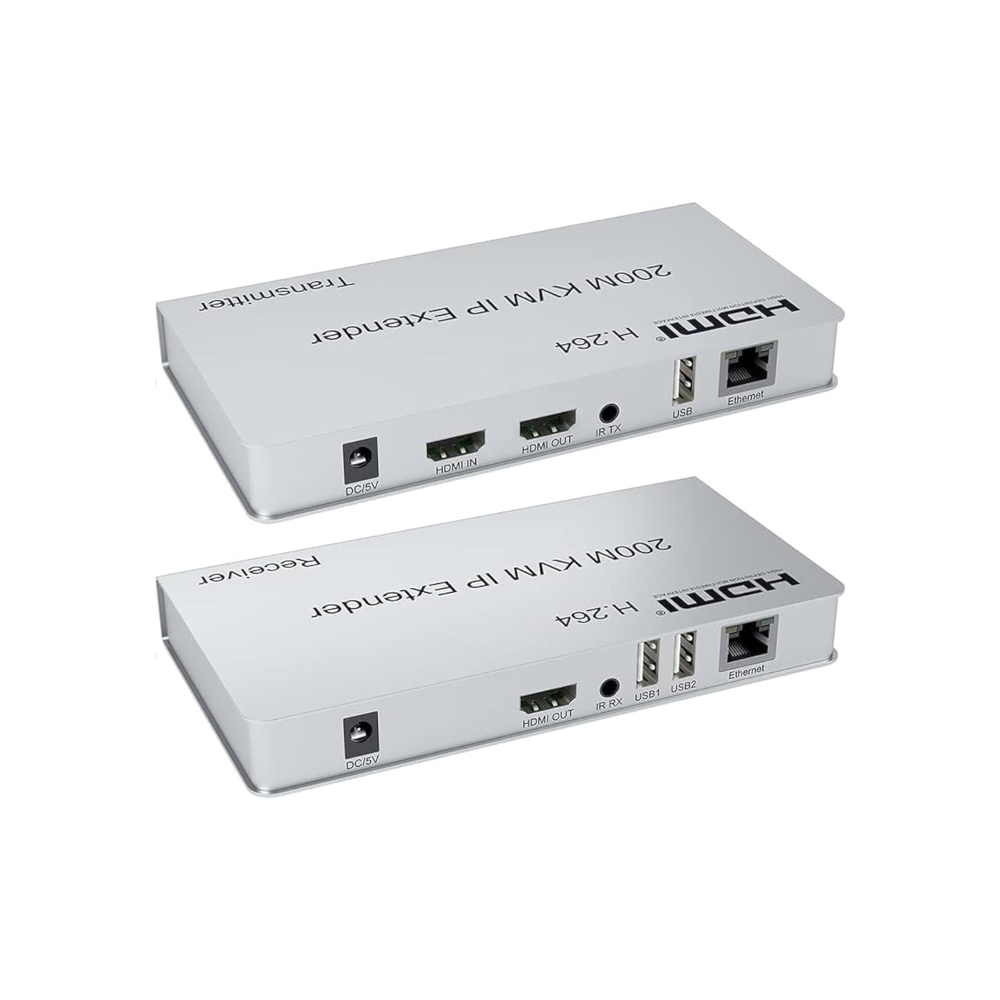

iSecure ICL-HDMI120-KVM

iSecure ICL-HDMI120-KVM 1080P HDMI KVM over Single CAT6 Cable – Supplied As A Set – Tx & Rx – Supports Up To 120m Distance – Loop Function

SKU: ICL-HDMI200-KVM Categories: , , Tags: , , , ,
  • iSecure CF301

    iSecure CF301 - USB 2.0 (Type A-A) Cable - 1.5m Length - Male to Male

This product is currently unavailable.

iSecure ICL-HDMI120-KVM 1080P HDMI KVM over Single CAT6 Cable – Supplied As A Set – Tx & Rx – Supports Up To 120m Distance – Loop Function

Features :-

  • 1 * Transmitter (Tx) Unit with 1* HDMI input + 1* USB 2.0 Ports + 1* HDMI output for looping function
  • 1 * Receiver (Rx) Unit with 1* HDMI output + 2* USB 2.0 Ports
  • A complete functional module, without the need for configuration.
  • Operates on the IEEE-568B standard.
  • Transmission distance can be up to 120 meters for 1080p using CAT-6 cable.
  • 3D compatible
  • Rate up to 2.25 Gbps in 1080p.
  • With IR and mouse and keyboard function via cable (USB 2.0)
Resolution Support 480p,720p,1080p
Audio Sample rate:32kHz,44.1kHz and 48kHz code
IR remote control 38 KHz
HDMI version HDMI 1.3
Power adapter DC:5V/1A
Power consumption HDMI sender:3W    HDMI receiver:3W
Size(L-W-H) 163*87*24mm
Weight 474g X 2
Operating Temperature/Humidity 0℃-45℃/10%-80%RH(no condensation)
Storage Temperature/Humidity  -10℃-70℃/5%-90%RH(no condensation)
