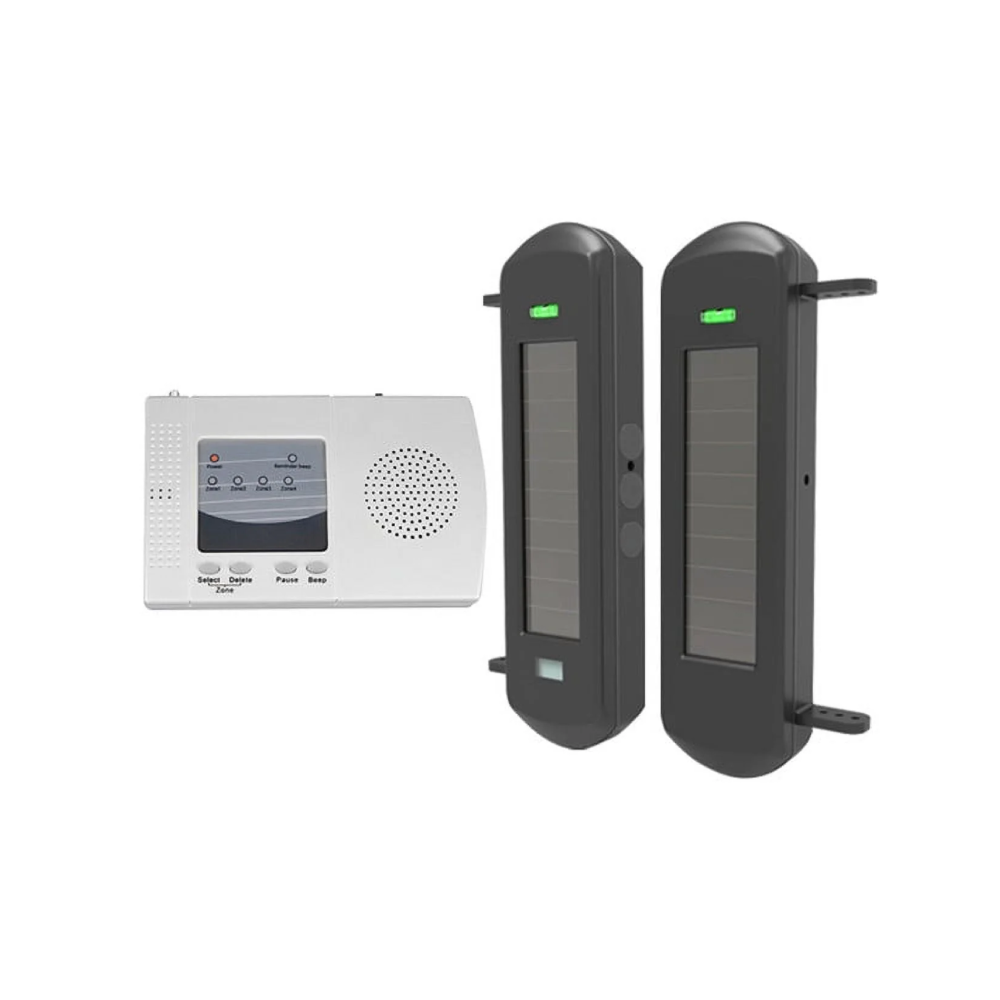

iSecure WDA-Q3-MFR-KIT

iSecure WDA-Q3-MFR-KIT Wireless Driveway Alarm Kit – Includes 2 * Solar-Powered Wireless Beam Detectors + 1 * 4-Channel Wireless Receiver – 100m Sensor Detection Range – 800m Wireless Transmission Range

  • iSecure WDA-MFR

    iSecure WDA-MFR 4-Zone Wireless Multifunctional Alarm Receiver with 4 Relay Outputs - Supports Up to 800m Wireless Transmission Range From Outdoor Beam Detectors

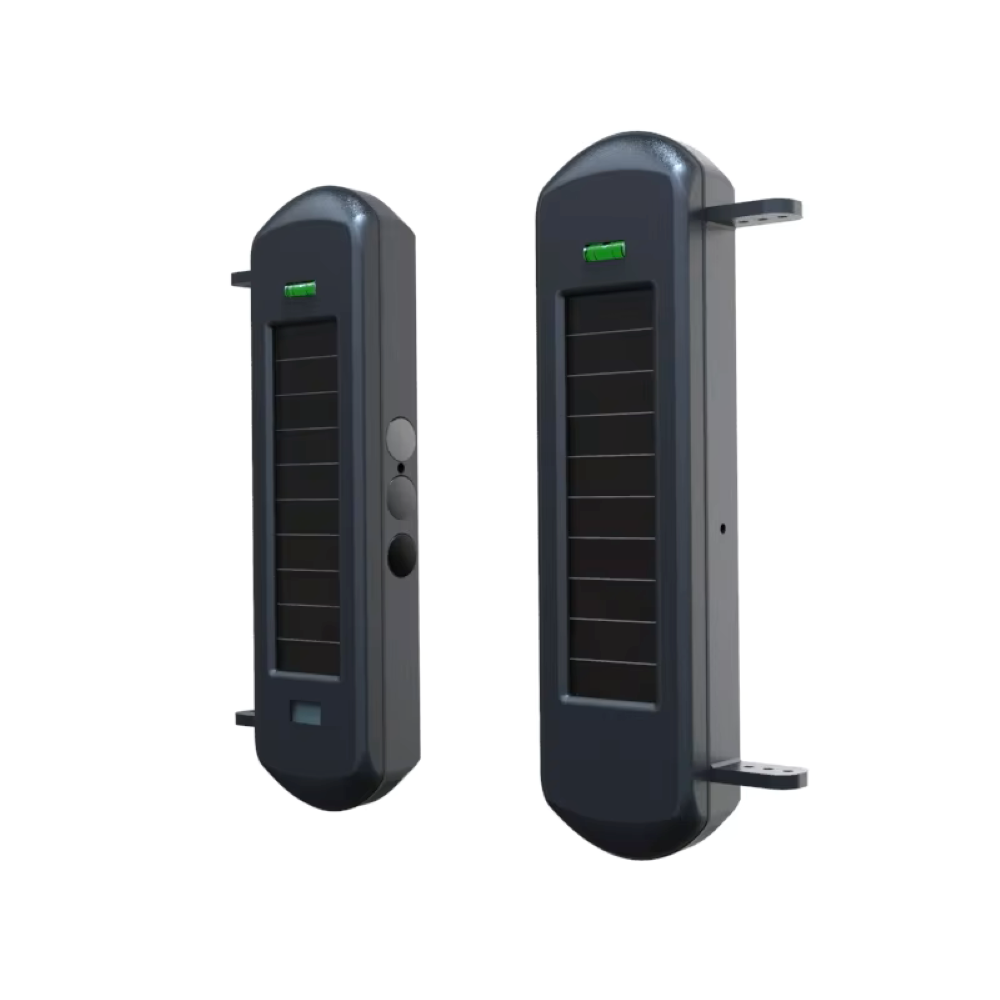

  • iSecure WDA-Q3

    iSecure WDA-Q3 Solar-Powered 2 * Wireless Beam Detectors - Supports Up To 100m Beam Detection Range - Supports Up To 800m Range To Receiver

This product is currently unavailable.

iSecure WDA-Q3-MFR-KIT Wireless Driveway Alarm Kit – Includes 2 * Solar-Powered Wireless Beam Detectors + 1 * 4-Channel Wireless Receiver – 100m Sensor Detection Range – 800m Wireless Transmission Range

Key Features :-



  • Solar Wireless Alarm: Solar powered, no wiring no need to replace battery. The outdoor weather resistant solar beam sensor is powered by built-in rechargeable battery, and the battery will be charged by the built-in solar panel on rainy or cloudy days. These is also a charge jack at the back of the sensor which can be also charged by DC5V-DC12V power adapter or powered by extra solar panels if the sensors will be installed indoor or in the dark areas.
  • 800m Wireless Transmission Range: Both the solar beam sensor and the wireless receiver pick up alarm signals up to 800m away (actual range will vary depending on the local terrain), it is a great solution even you have a large perimeter or property to monitor. The system adopts advanced wireless transmission technology (FSK + FHSS) to avoid the wireless signal interference from other devices.
  • 100m Sensor Detection Range: The solar beam sensors work in pair (one is transmitter, the other one is receiver), the infrared detection range of the solar beam sensors up to 100 meters, it means the infrared sensing terminals can be mounted up to 100 meters apart.
  • Lower False Alarm Rate: The use of active and multiple infrared beams reduces false alarms from small animals and small objects such as birds and falling leaves; Super infrared penetrating power reduces false alarms form the bad weather such as heavy rain/ fog/ snow; The use of infrared analysis technology reduces false alarms from the other nature light sources interference such as strong sunlight.
  • Multifunctional Receiver: The alarm receiver has 4 wireless zones (each zone can connect 8pcs sensors), expandable up to 32 sensors to 1 receiver; and 1 sensor can be added to unlimited receivers for complete coverage for your property. All the 4 wireless zones have its unique ring tone and the volume is adjustable, match different ring tone with different sensors around your property to differentiate where motion is detected. The receiver has 4 NO/NC relay outputs responding to the 4 wireless zones (used to compatible with other device), the receiver also has 1 group DC14V output which can be used to connect wired siren/strobe light.



Sensor Driveway 100 Meters Range - SunTweet

Wireless Beam Detectors Technical Parameters



Item Technical Parameters
Infrared Detection Range 100m (300 feet)
Wireless Transmission Range 1KM (3000 feet)
Beam Quantity 3
Wireless Frequency 433MHz FSK + FHSS
Maximum Trigger Number In 24 Hours ≤200 times
Working Voltage 3.3V
Battery Type Chargeable LiFePO4 Battery
Battery Capacity Transmitter: 500mAh, Receiver: 500mAh
Static working Current ≤0.5mA
Infrared Wavelength 940nm±20nm
Solar Panel Output Current 1800Lux illumination level: ≥2mA (Remarks: The outdoor illumination intensity on rainy days is about 2000Lux)
Working Temperature Range -30℃~70℃

Wireless Receiver Technical Parameters



Item Technical Parameters
Working Voltage DC12- 15V
Working Current Static Current 20mA; Alarming Current 180mA
Wireless Frequency 433MHz FSK + FHSS
DC14V Output Current Maximum 400mA
Relay Output Rating DC24V / AC120V at 2A
