Microtech Designs ELMIC-KIT

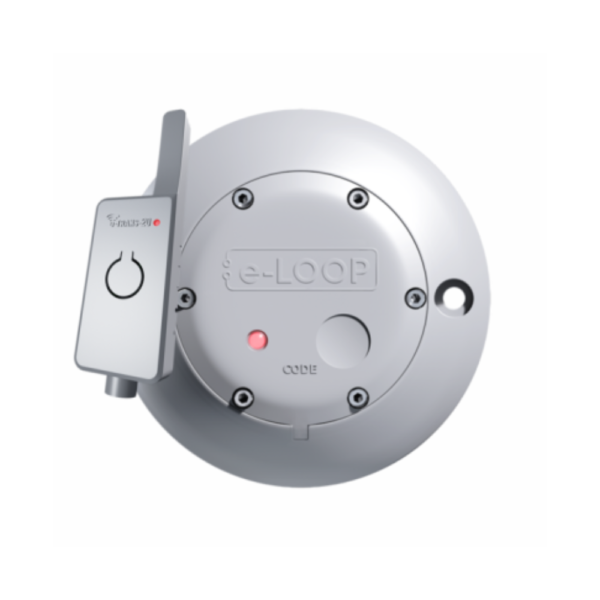

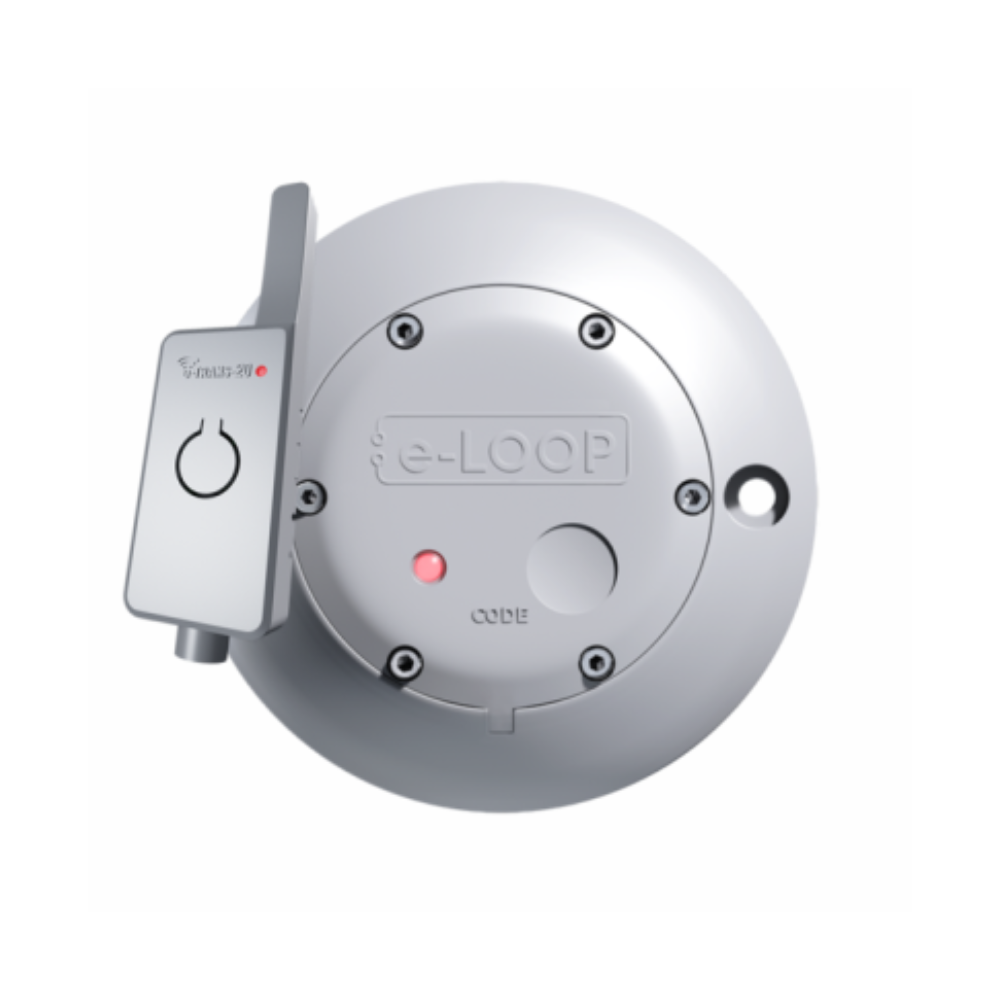

Microtech Designs eLoop ELMIC-KIT Domestic 433MHz Wireless Vehicle Detection Kit – Includes 1 * ELMIC eLoop Micro (Exit Mode) + 1 * e-Trans 20 Transceiver + 2 * Dyna Bolts – EXIT Mode – Battery Operated – Up to 25m Range

The e-Loop Micro offers a fantastic low-cost solution to domestic gate control, offering a simple installation, impressive battery life for the form factor and a discreet and sleek design. Packaged with an e-Trans 20 as an all-in-one solution, the e-Loop Micro kit is the perfect product for any gate installer; offering a reasonably priced to up-sell a vehicle detection on a traditional gate installation.

The Microtech Designs Micro Wireless Vehicle Detection System uses magnetometer sensors to detect the presence and movement of vehicles. These detections are transmitted to a nearby
Microtech transceiver for gate activation. The sensors are installed on the surface of entry or exit passages using dynabolts, contain a single replaceable CR123a battery, and can withstand almost any light-medium vehicle.

Key Features :-

eLoop Micro

• Compact design
• Lower power consumption
• 3-Axis magnetometer for vehicle detection
• Magnetic field detection
• Designed for above ground mounting
• IP68 weatherproof rated
• Quick and easy installation
• Compact profile – only 23mm high x 110mm diameter
• CR123A battery giving up to 2 years battery life
• High security 128 bit encryption
• Reliable radio communications with Transceiver – wireless range 25 meters
• Made of high impact plastic
• Note* Gate or door controller must have a dedicated open input and auto-close function enabled

e-Trans 20 Transceiver

• Support for 20 e-TX Remotes & 2 e-Loops
• Wiring Info: 4.5mA 12-24DC
• 1 Channel
