OneTop EM3500 DSS BLK

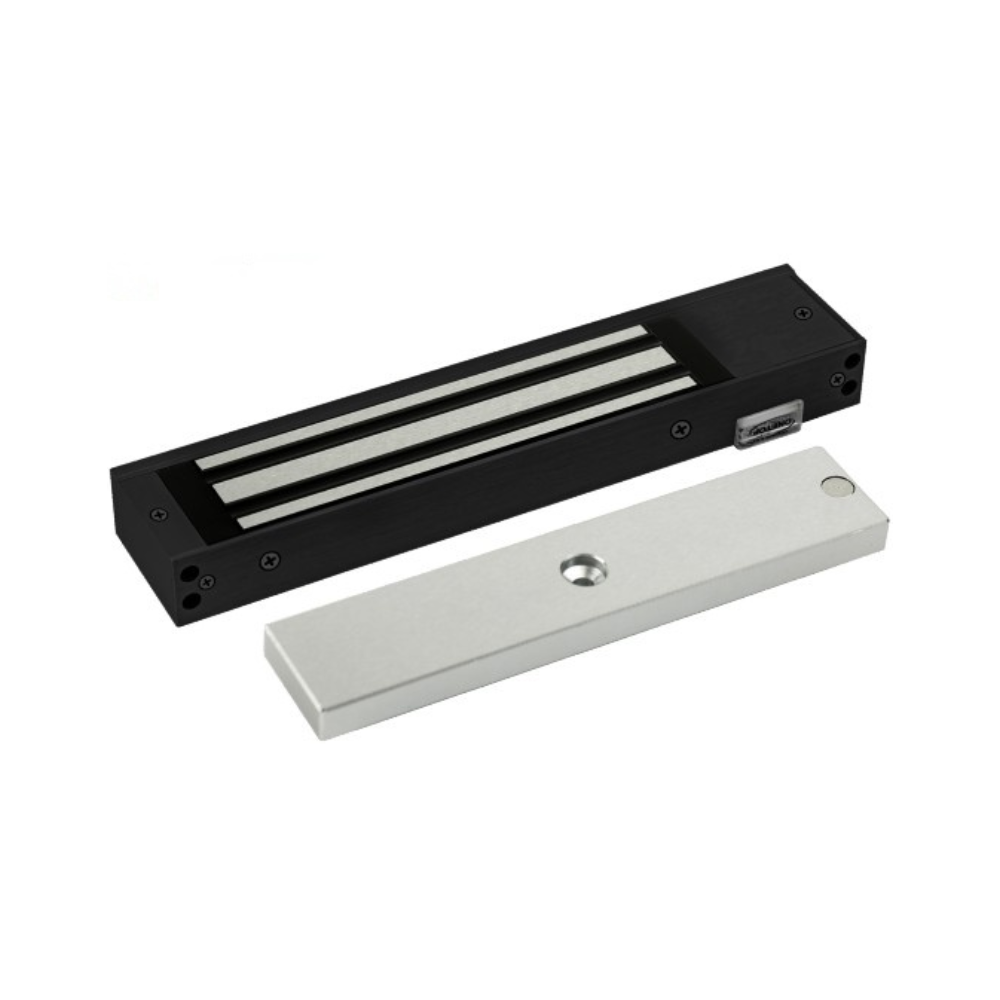

OneTop EM3500 DSS BLK Single Door Electromagnetic Lock – BLACK Color – 12VDC/24VDC Powered – 280KGs Pull Force – Supports Monitoring (Lock Status Sensor & Door Status Sensor) – Anti-corrosion Plating
SKU: EM3500 DSS BLK
Categories: Access Control, Electronic Locks, Locks, Mag Locks & Accessories
Tags: Access Control, Black, Electromagnetic Lock, Fail-safe, Lock, Maglock, Onetop
OneTop EM3500 DSS BLK Single Door Electromagnetic Lock – BLACK Color – 12VDC/24VDC Powered – 280KGs Pull Force – Supports Monitoring (Lock Status Sensor & Door Status Sensor) – Anti-corrosion Plating
Key Features :-
- Certifications – BS465: Tested under British Standard for 4 hours fire resistance
- Fail Safe – Power to lock
- Lock Body Dimension – EM3500 DSS – 238L x 48W x 25H (mm)
- Armature Plate Dimension – EM3500 DSS – 185L x 38W x 12H (mm)
- Lock Operating Voltage – 12/ 24VDC ±10%
- Lock Operating Current – 530mA /12VDC; 260mA /24VDC
- Lock Holding Force – Up to 250~280Kg
- Weight – EM3500 DSS 2.0Kg
- Output Signals – EM3500 DSS is equipped with LSS & DSS
- Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A
- Door Status Output (DSS) NO/COM, Max 24VDC; Max 0.2A
- Operating Temp -10°C ~60°C
- Operating Humidity 0~95% (non-condensing)
- Light Panel Red/Green/Off indicating the status
- Insecure/Secure/Power Off the magnetic lock
- Surface Finish – Anodized Aluminum housing Zinc plated for anti-corrosion
Specifications
- Fail Safe: Power to lock
- Dimension: Lock body: L 238 x W 48 x H 26mm (Single); Armature Plate : L185 x W 38 x H 12mm
- Weight: 2Kg
- Operating Voltage: 12/24VDC ±10%
- Operating Current: 12VDC – 510mA; 24VDC – 270mA
- Holding Force: 280Kg
- Operating Conditions: Temperature: -10°C ~ 60°C; Humidity: 0 ~ 85% (non-condensing)
- Output Signals:
- Lock Status Sensor (LSS): COM/NO/NC: Max 24VDC; Max 1A
- Door Status Sensor (DSS): COM/NO: Max 24VDC; Max 0.2A
- Backlight: Red/Green/Of
- Surface Finishes: Anodized Aluminum Housing – High Quality Plating for Anti-corrosion (96 Hrs Salt Spray Corrosion Tested)
