OneTop EM4500FS

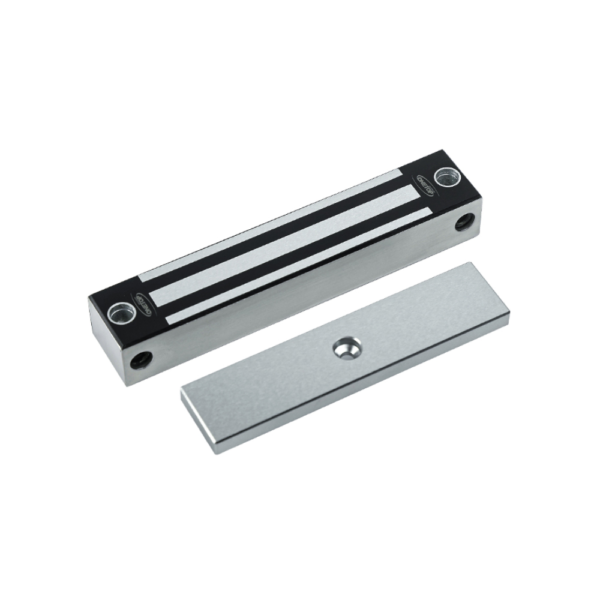

OneTop EM4500FS IP67-Rated Outdoor-Rated Weatherproof Electronic Magnetic Lock – Face / Side Mounted – 12VDC / 24VDC – 200Kgs Holding Force – No Monitoring
SKU: EM4500FS
Categories: Electronic Locks, Locks, Mag Locks & Accessories
Tags: Fail-safe, IP67 Rated, Lock, Maglock, Onetop, Outdoor, Weatherproof
OneTop EM4500FS IP67-Rated Outdoor-Rated Weatherproof Electronic Magnetic Lock – Face / Side Mounted – 12VDC / 24VDC – 200Kgs Holding Force – No Monitoring
Key Features :-
- Stainless 304 steel body housing
- Weather resistant IP67
- CE / C-Tick
- Guaranteed no residual magnetism
- Mag Dimensions: 163.6mm x 31.5mm x 25.8mm
- Armature Plate: 145mm x 30mm x 8.7mm
- 12VDC – 350mA powered or 24VDC – 180mA powered
Specifications
- Fail Safe: Power to Lock
- Dimension: Lock Body: L 163.6mm x W 31.5mm x H 25.mm; Armature Plate: L 145mm x W 30mm x H 8.7mm
- Weight: 1Kg
- Operating Voltage: 12VDC/24VDC ±10%
- Operating Current: 12VDC – 350mA; 24VDC – 180mA
- Holding Force: 200Kg
- Operating Conditions: Temperature: -10°C ~ 60°C; Humidity: 0 ~ 85% (non-condensing)
- Surface Finishes: Full weather resistant stainless Steel finish – High Quality Plating for Anti-corrosion – (96 Hrs Salt Spray Corrosion Tested)
- Residual Magnetism: No residual magnetism – *No spring rebound mechanism on armature plate is required to overcome residual magnetism
