OneTop EM4700FS

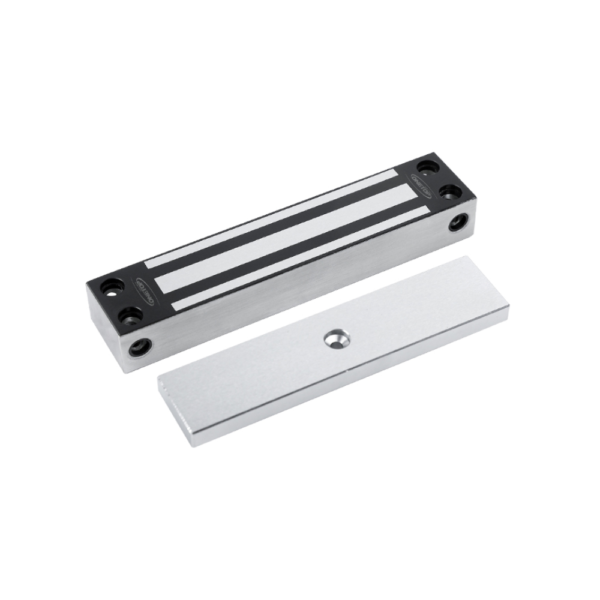

OneTop EM4700FS Outdoor-Rated Weather-resistant Stainless-Steel Electronic Magnetic Lock – Face / Side Mounted – 12VDC / 24VDC – 410Kgs Holding Force – Lock Status Sensor
SKU: EM4700FS
Categories: Electronic Locks, Locks, Mag Locks & Accessories
Tags: Fail-safe, IP67 Rated, Lock, Maglock, Onetop, Outdoor, Weatherproof
OneTop EM4700FS Outdoor-Rated Weather-resistant Stainless-Steel Electronic Magnetic Lock – Face / Side Mounted – 12VDC / 24VDC – 410Kgs Holding Force – Lock Status Sensor
Key Features :-
- Stainless 304 steel body housing
- Weather resistant IP67
- CE / C-Tick
- Lock Status Sensor (LSS) monitoring
- Guaranteed no residual magnetism
- Mag Dimensions: 220mm x 32mm x 47 mm
- Armature Plate: 185mm x 42mm x 12mm
- 12/24VDC 500/250 mA
Specifications
- Fail Safe: power to lock
- Dimensions: Lock Body: L 220mm x W 46mm x H 31.6mm; Armature Plate: L 185mm x W 42mm x H 12mm
- Weight: 2.7Kg
- Operating Voltage: 12/24VDC ±10%
- Operating Current: 12VDC ‒ 390mA; 24VDC ‒ 200mA
- Holding Force: 410Kg
- Impact Energy: 100J
- Operating Conditions: Temperature: -10°C ~ 60°C; Humidity: 0 ~ 85% (non-condensing)
- Surface Finishes: Full weather resistant stainless Steel finish – High Quality Plating for Anti-corrosion – (96 Hrs Salt Spray Corrosion Tested)
- Residual Magnetism: No residual magnetism – *No spring rebound mechanism on armature plate is required to overcome residual magnetism
