OneTop EM5000G

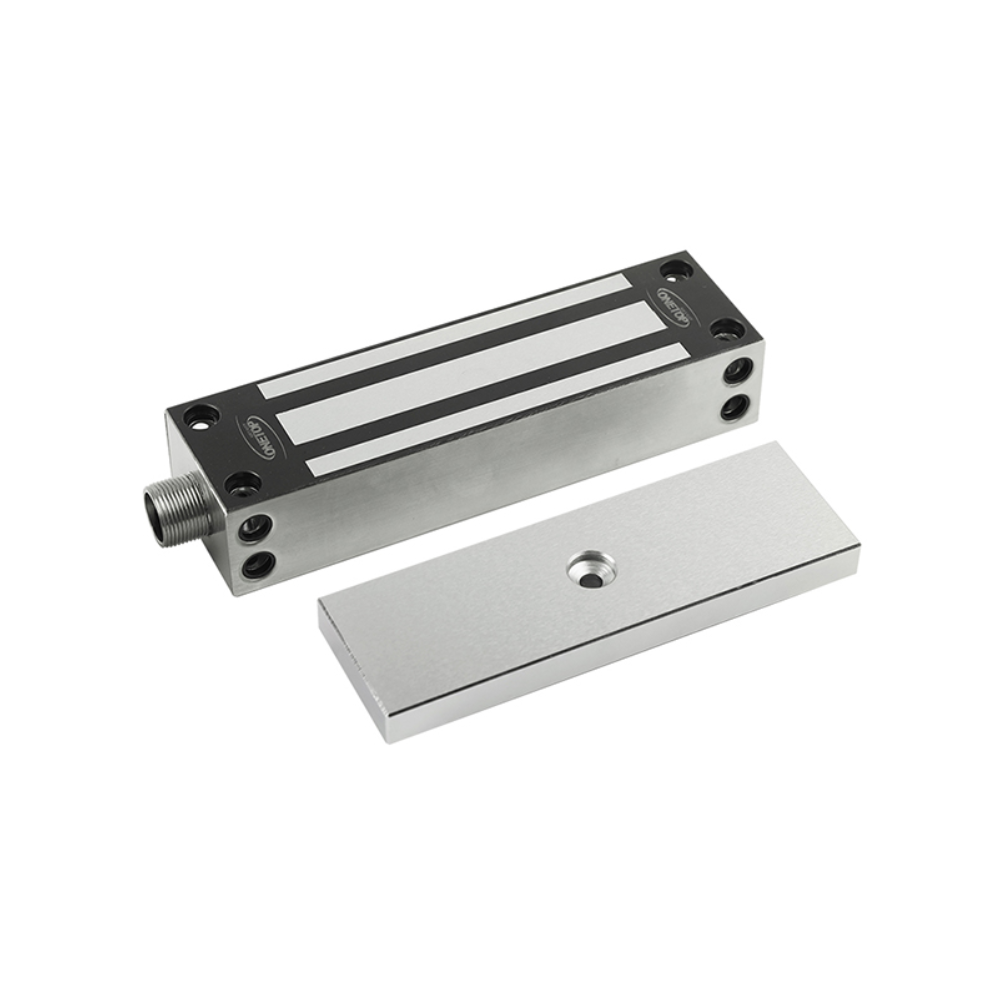

OneTop EM5000G Outdoor-Rated Weather-resistant Stainless-Steel Electronic Magnetic Lock – Side / Face / Front Mounted – 12VDC / 24VDC – 680Kgs Holding Force – Lock Status Sensor Monitoring
SKU: EM5000G
Categories: Electronic Locks, Locks, Mag Locks & Accessories
Tags: Fail-safe, IP67 Rated, Lock, Maglock, Onetop, Outdoor, Weatherproof
OneTop EM5000G Outdoor-Rated Weather-resistant Stainless-Steel Electronic Magnetic Lock – Side / Face / Front Mounted – 12VDC / 24VDC – 680Kgs Holding Force – Lock Status Sensor Monitoring
Key Features :-
- Stainless 304 steel body housing
- Side-mount / Face-mount mag-lock
- Weather resistant IP67
- Fail-safe (Power To Lock)
- CE / C-Tick
- Lock Status Sensor (LSS) monitoring
- Guaranteed no residual magnetism
- Mag Dimensions: 225mm (L) x 63mm (W) x 44mm (H)
- Armature Plate: 190mm (L) x 61mm (W) x 16mm (H)
- Operating Voltage: 12VDC/ 24VDC +/- 15%
- Operating Current: 480mA @12VDC 240mA @ 24VDC
- Holding Force: Up to 680Kg
- Weight 5.5Kg
Specifications
- Fail Safe: power to lock
- Dimensions: Lock Body: L 224 x W 63.5 x H 44.5mm; Armature Plate: L190 x W 61 x H 16mm
- Weight: 5.5Kgsg
- Operating Voltage: 12/24VDC ±15%
- Operating Current: 12VDC ‒ 480mA; 24VDC ‒ 240mA
- Holding Force: 680Kg
- Impact Energy: 200J
- Output Signals: Lock Status Sensor (LSS) – COM/NO/NC: Max 24VDC; Max 1A
- Operating Conditions: Temperature: -10°C ~ 60°C; Humidity: 0 ~ 85% (non-condensing)
- Surface Finishes: Full weather resistant stainless Steel finish – Electro galvanization to prevent from rusting
- Residual Magnetism: No residual magnetism – *No spring rebound mechanism on armature plate is required to overcome residual magnetism
