OneTop ES20M

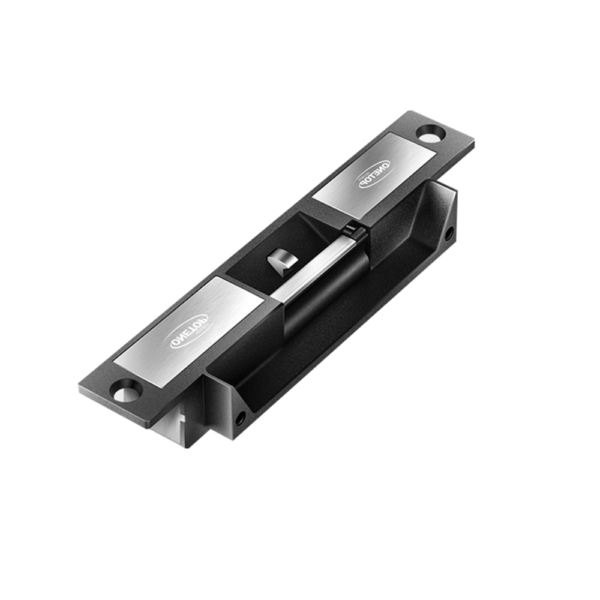

OneTop ES20M IP56-Rated Outdoor-Rated Heavy-Duty Electric Strike Lock – Fail-Safe / Fail-Secure – Fire-Rated – Supports Monitoring – 12VDC / 24VDC Powered – 5MM Extension Lip
SKU: ES20M
Categories: Electronic Locks, Locks, Strike Locks & Accessories
Tags: Access Control, Electric Strike Lock, Fail-safe, Fail-secure, IP56 Rated, Lock, Onetop, Outdoor, Weatherproof
OneTop ES20M IP56-Rated Outdoor-Rated Heavy-Duty Electric Strike Lock – Fail-Safe / Fail-Secure – Fire-Rated – Supports Monitoring – 12VDC / 24VDC Powered – 5MM Extension Lip
Key Features :-
- Certifications – ROHS, CE, Intertek. BS EN1634-1: 2024 Fire rated 4 hours
- Fail Safe / Fail Secure – Can be manually switched between PTO and PTL
- Lock Dimension – 176.0L x 44.5W x 26.5H (mm)
- Lock Operating Voltage -12/24VDC +/- 10%
- Lock Operating Current – 12VDC 220mA, 24VDC 120mA
- Output Signals – see specification sheet
- Lock Holding Force – 850Kg
- Impact Force – 200J
- Weight – 0.6Kg
- Surface Finish – Stainless Steel Body
Specifications
- Fail Safe / Fail Secure: Interchangeable – Power To Open / Power To Lock
- Dimensions:
- Strike Body: L 176 x W 28.5 x D 26.5mm
- Weight: 0.6Kg
- Operating Voltage: 12/24VDC ±10%
- Operating Current: 12VDC – 220mA; 24VDC – 120mA
- Holding Force: 1000Kg
- Impact Energy: 200J
- Operating Conditions: Temperature: -10°C ~ 60°C; Humidity: 0 ~ 85% (non-condensing)
- Output Signals:
- Lock Status Sensor (LSS): COM/NO/NC: Max. 125VAC, 3A; Max. 30VDC, 2A
- Door Status Sensor (DSS): COM/NO/NC: Max. 125VAC, 3A; Max. 30VDC, 2A
- Anti-Tamper Switch: COM/NO/NC: Max. 125VAC, 5A; Max. 250VAC, 3A
- Surface Finishes: One-piece solid stainless steel body* *Powder Coated Black
